Rockwell Automation Publication 1756-UM105E-EN-E - October 2012

21

Upgrade Firmware with ControlFLASH Chapter 4

4.

5.

Select the catalog number of the target device and click Next. The device
path dialog box allows you to specify the network path of the target
module you are updating. The dialog box varies depending on the target
module you are updating.
If you are updating a device with MicroXA or AB_ASA protocol driver,

the RSWho dialog box is displayed.

To specify the network path, navigate to the network where the device
is located and select the target module. Cick OK to go to the Firmware
Revision dialog box.

For more information about configuring and using RSWho, refer to
RSLinx help.

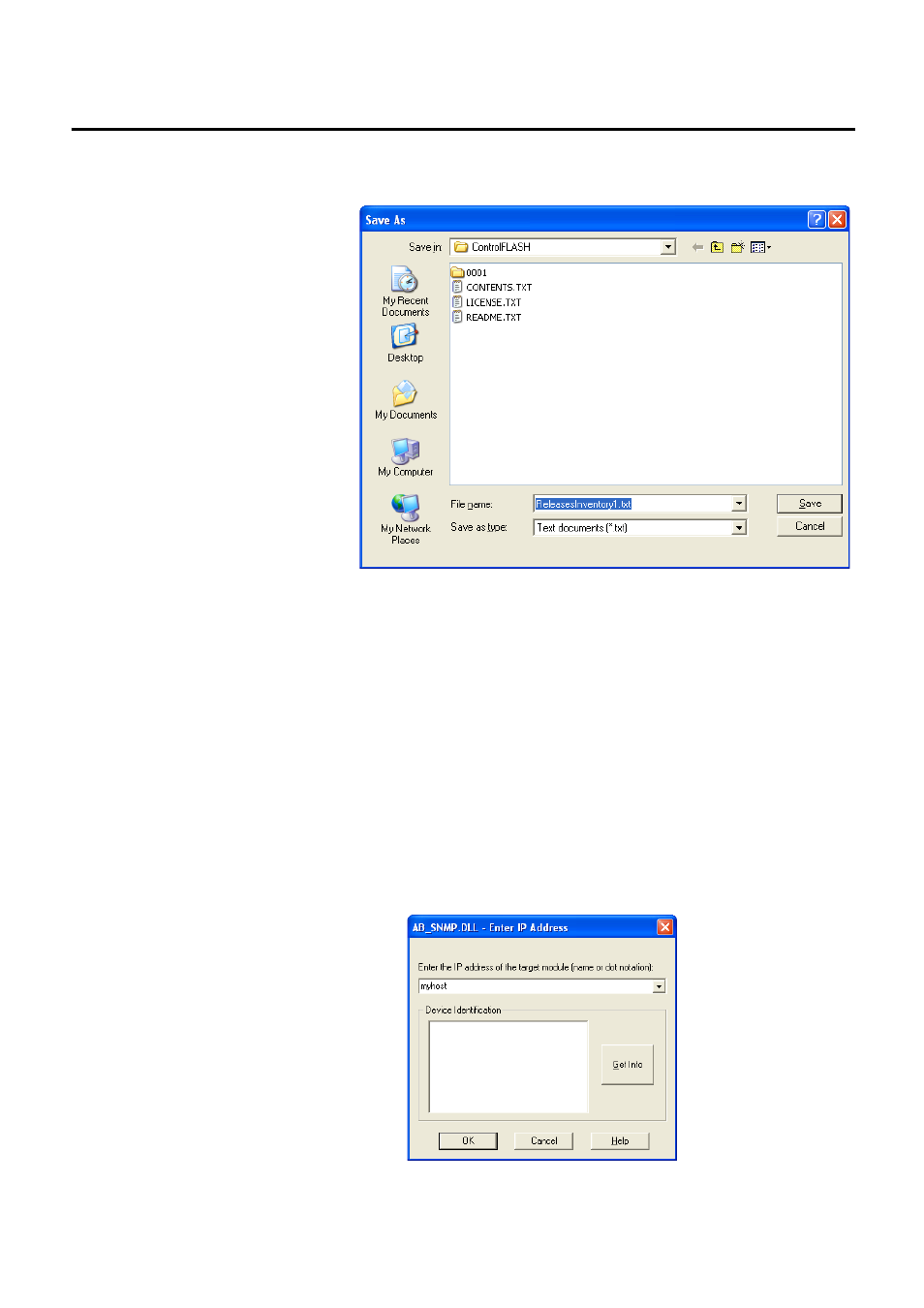

If you are updating a device with AB_SNMP protocol driver, the

AB_SNMP.DLL - Enter IP Address dialog box is displayed.
