Use the controlflash software to upgrade firmware – Rockwell Automation ControlFLASH Firmware Upgrade Kit User Manual User Manual
Page 18
18
Rockwell Automation Publication 1756-UM105E-EN-E - October 2012
Chapter 4 Upgrade Firmware with ControlFLASH
2.
Turn the key switch on your processor (if used) to Program mode.
3.
Turn on power to the processor.
Use the ControlFLASH Software
to Upgrade Firmware
Follow these steps to use ControlFLASH to upgrade the firmware on your
devices.
1.
Click Start > All Programs > FLASH Programming Tools >
ControlFLASH

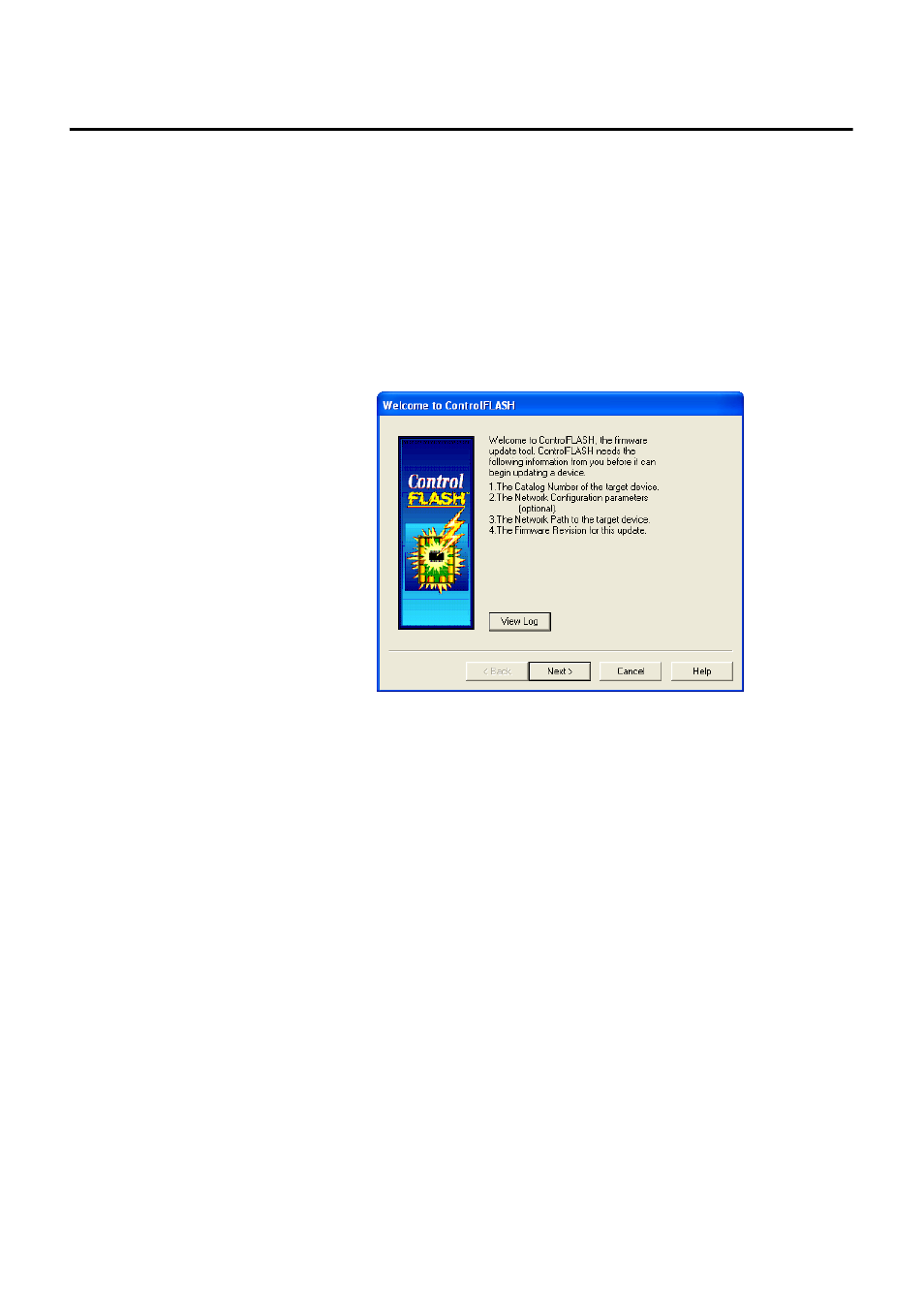

. The Welcome to ControlFLASH dialog box appears.
