Note that the Device ID is specific to the device based on type and
serial number.
The red x on the FI302 disappears. This indicates that communication
with the Device is established.
4. Repeat steps 1 and 2 with the LD292.
The Id drop-down list has one less selection due to the choices made
previously.
Assign Tags
In this section you will change attributes in order to differentiate between
similar devices.

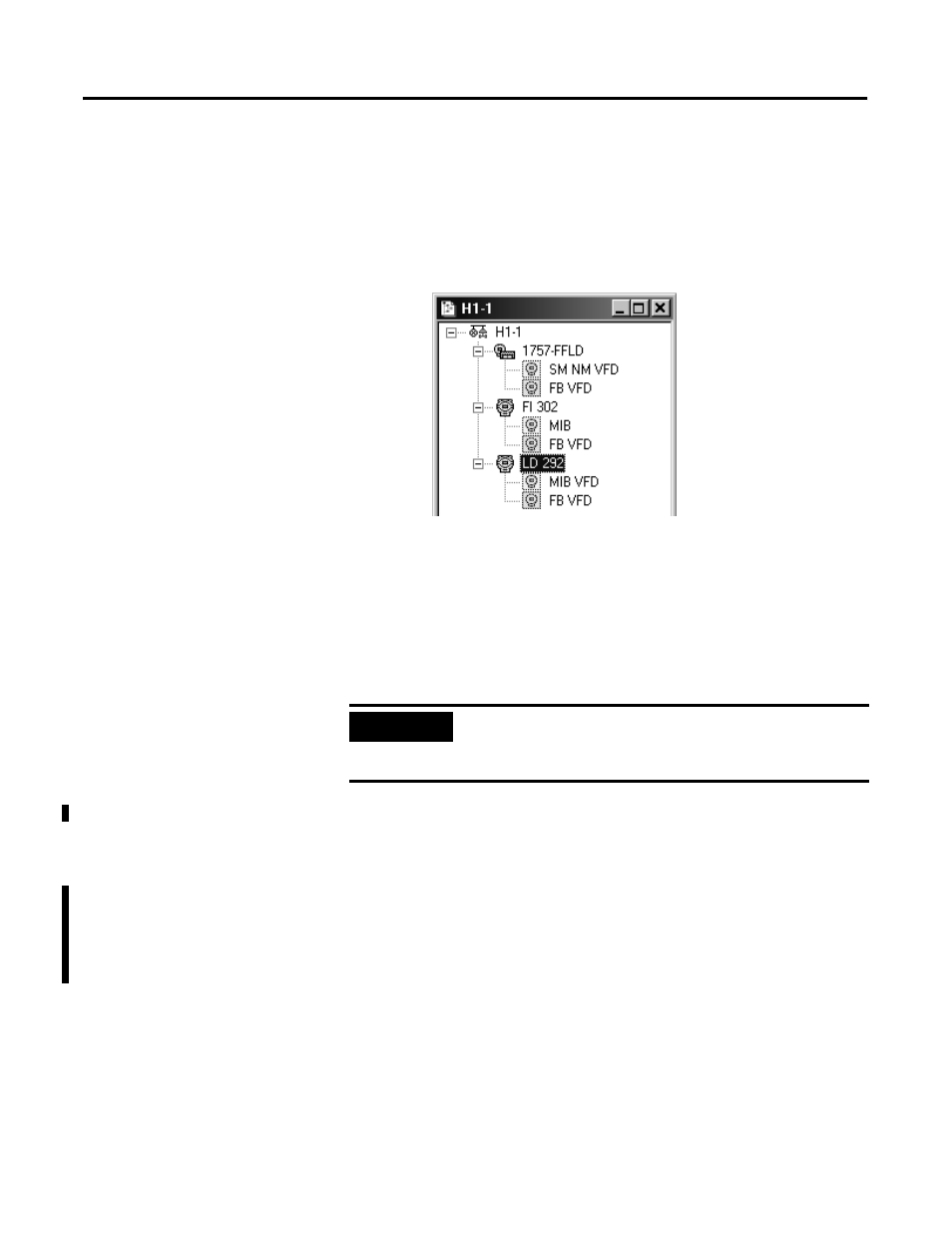

1. In the H1-1 Fieldbus window, right-click the linking device and select
Assign Tags.
The Assign Tag window opens and the Tag is sent to the Device. The
linking device will momentarily disappear from the live list and reappear
with the new tag. Wait until the linking device is solid in both the H1-1
and the HSE live lists before proceeding. Note that since the linking
device is busy with tag assignment, the other devices will disappear until
the linking device reappears.
2. Use the H1-1 and HSE Live Lists to verify that the Device Tag has
changed.
IMPORTANT
The tag of the device in the project and the online device in
the live list match one another. This will help to download
successfully.
