Page 31

Publication 1794-6.5.11 - September 2011
Install Your FLEX I/O Frequency Input Module 21
Wire the Terminal Base Units
Wiring the FLEX I/O Frequency Input module is done using the 1794-TB3G,
1794-TB3GK or the 1794-TB3GS terminal base unit.

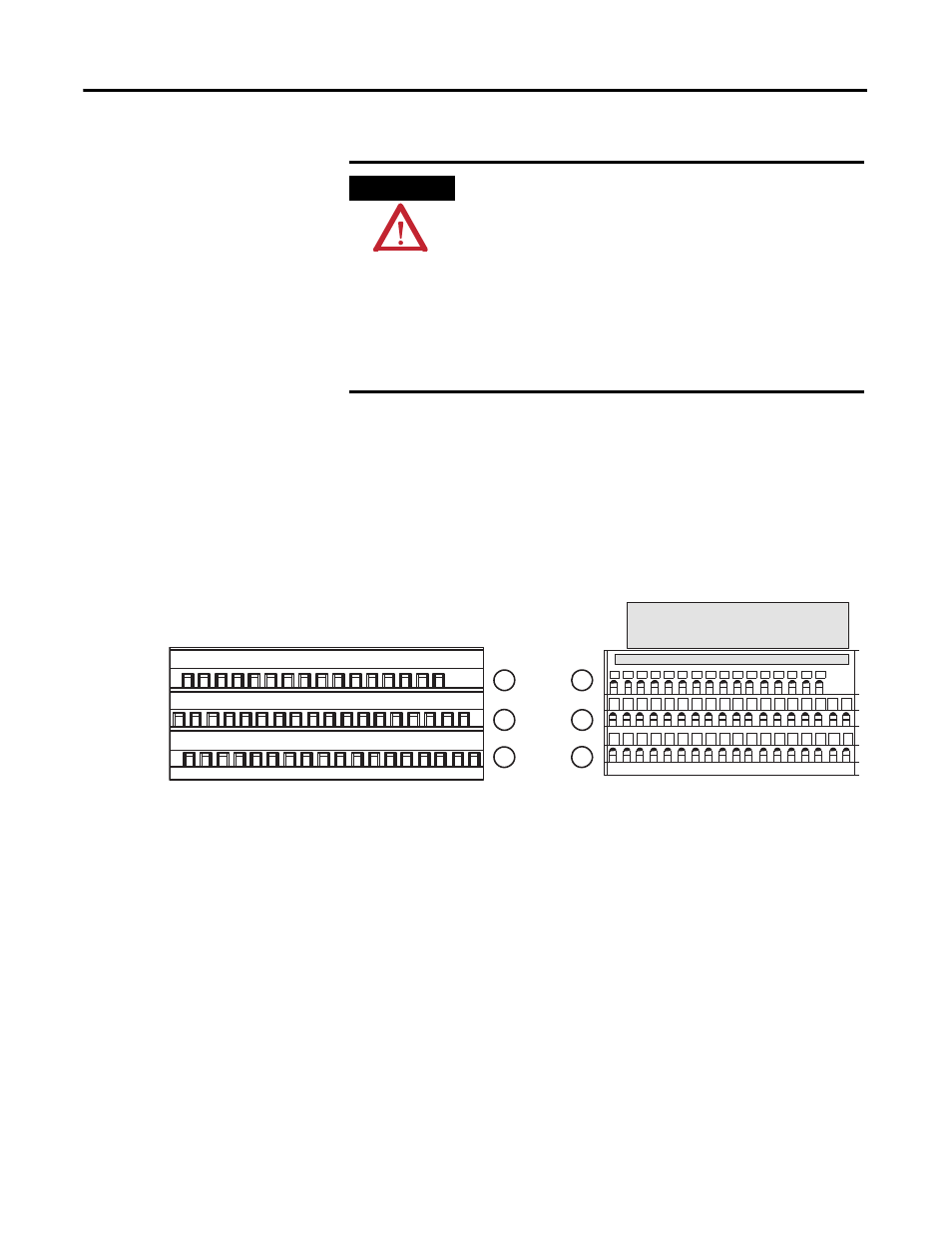

1794-TB3G, 1794-TB3GK and 1794-TB3GS Wiring Connections
Connect Wiring to the FLEX I/O Frequency Input Module
Wiring to the Frequency Input module is made through the terminal base unit
on which the module mounts.
The module is compatible with the 1794-TB3G, 1794-TB3GK and
1794-TB3GS terminal base units.
ATTENTION
Take note of the following considerations when wiring your
terminal base units:
•AIl modules must be frequency or analog modules for the
daisychain configuration.
•Use the individual type of configuration for any "noisy" DC
digital I/O modules in your system.
•All modules powered by the same power supply must be
frequency or analog modules for the combination type of
configuration.
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
A
B
C
A
B
C
1794-TB3G or 1794-TB3GK
1794-TB3GS
0...15
34...51
16...33
0
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15
18 19 20 21 22 23
33
24 25 26 27 28 29 30 31 32
17
35 36 37 38
47 48 49 50
34
51
16
39 40 41 42 43 44 45 46
Label placed at top of wiring area
34 and 50 = 24V DC
35 and 51 = common
16 and 33 = chassis
40…45 = chassis ground
35 and 51 = common
34 and 50 = 24V DC
16 and 33 = chassis ground
40…45 = chassis ground
45328
