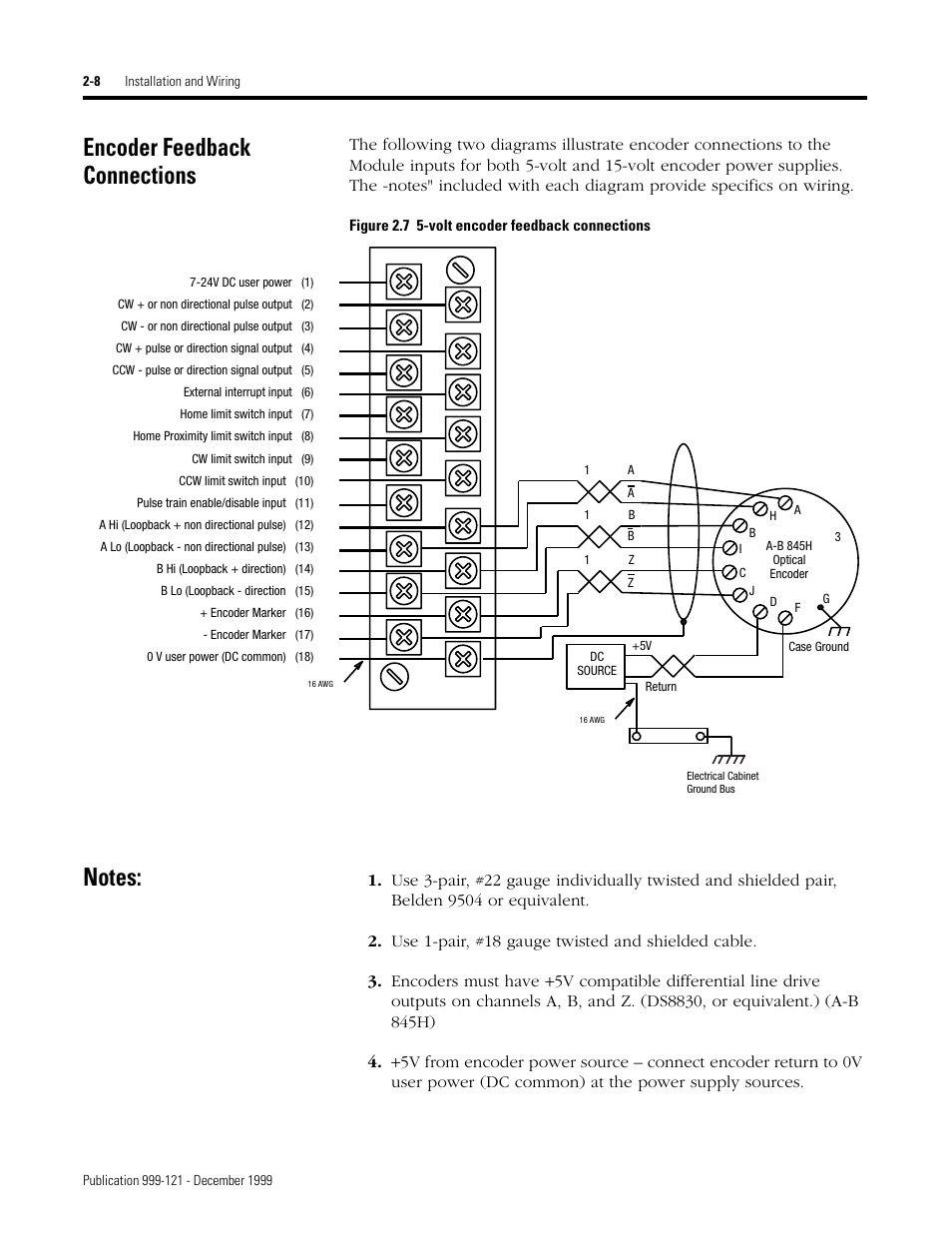

Encoder feedback connections – Rockwell Automation 1746-HSTP1 Stepper Controller Module/ User Manual User Manual
Page 25
