Set the module’s mode, Jw4 in configuration mode, Jw4 in vertical run mode – Rockwell Automation 1747-KE,D17476.12 DH-485/RS-232C Interface Module User Manual

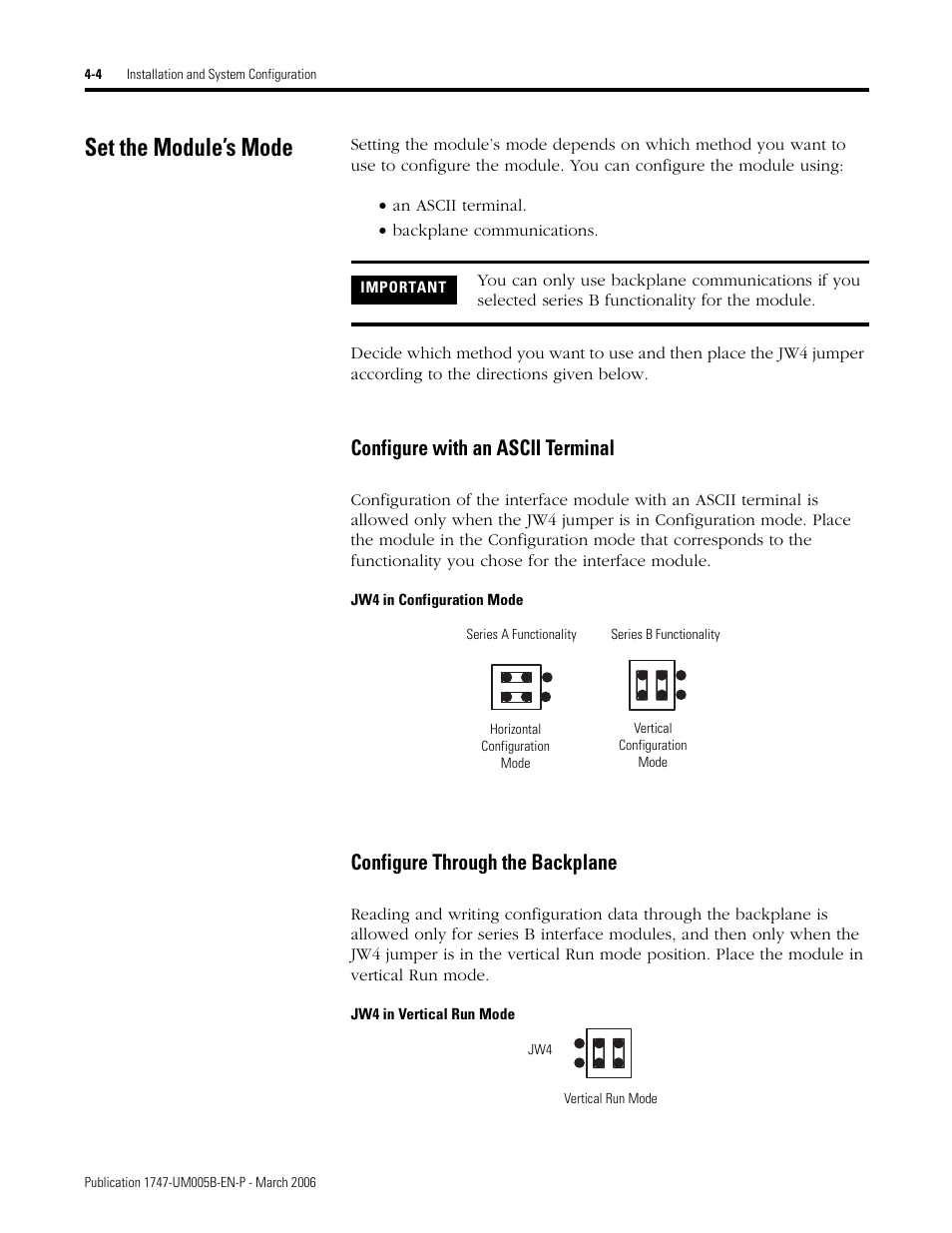

Page 42: Set the module’s mode -4, Configure with an ascii terminal, Configure through the backplane
