94 Rockwell Automation Publication 1756-UM005B-EN-P - January 2013
Chapter 6 Calibrate the Module

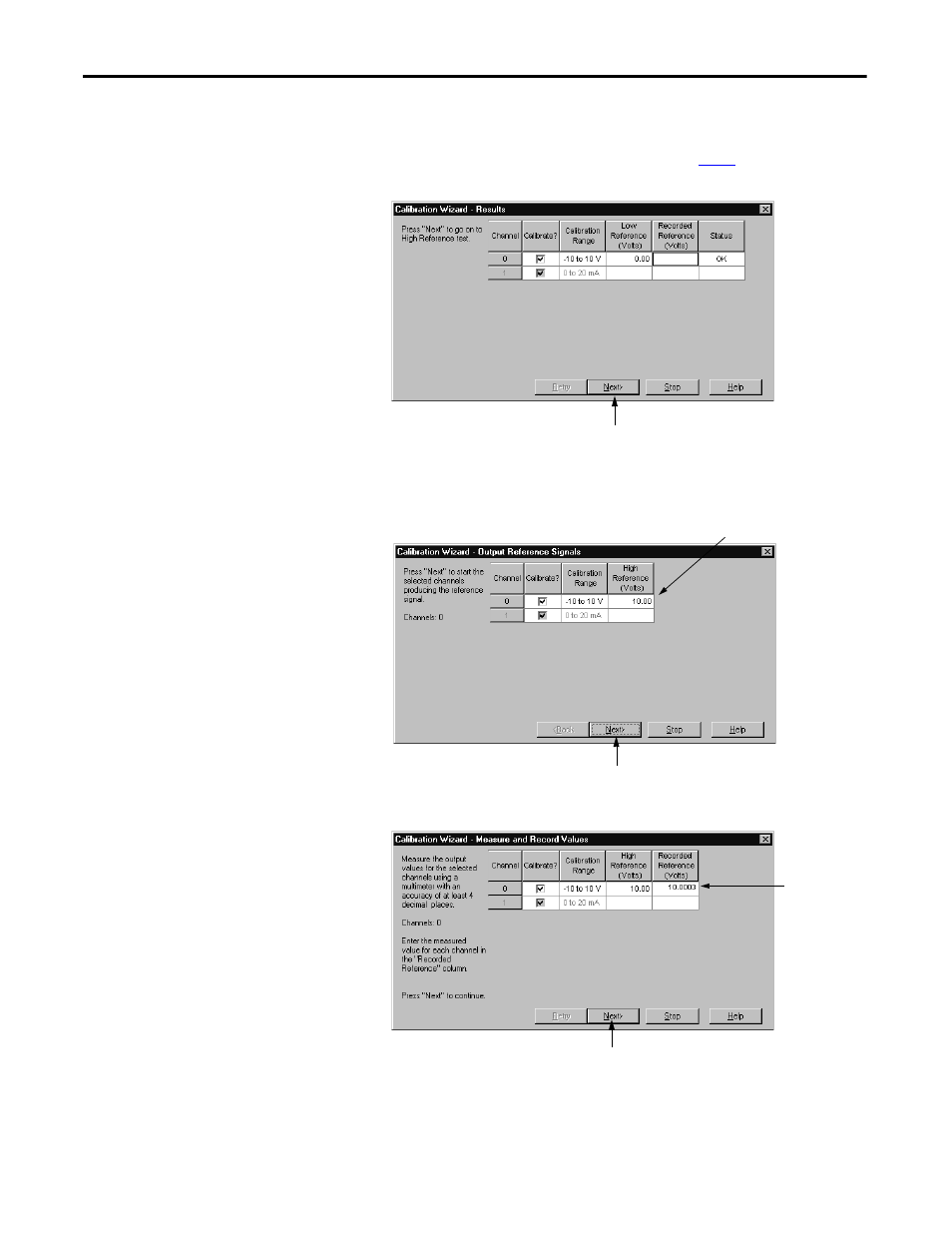

If the measurement is within an acceptable range, the channel is marked
with an OK status, such as shown below. If the measurement is not within
an acceptable range, the software returns you to
step 6 until the module
produces an acceptable output low reference level.
8. Command the output channel to produce a high voltage reference level.
9. Record the results shown on your voltage calibrator.
Click Next to proceed.
0.0021
The software commands the
output channel 0 to produce a high
voltage reference of 10.00V.
Click Next to proceed.
Record the voltage
measurement.
Click Next to proceed.
