Configure the message instruction – Rockwell Automation 1756-IF4FXOF2F ControlLogix High-speed Analog I/O Module User Manual
Page 125

Rockwell Automation Publication 1756-UM005B-EN-P - January 2013
125
Use Message Instructions to Perform Run-time Services and Module Reconfiguration
Appendix C

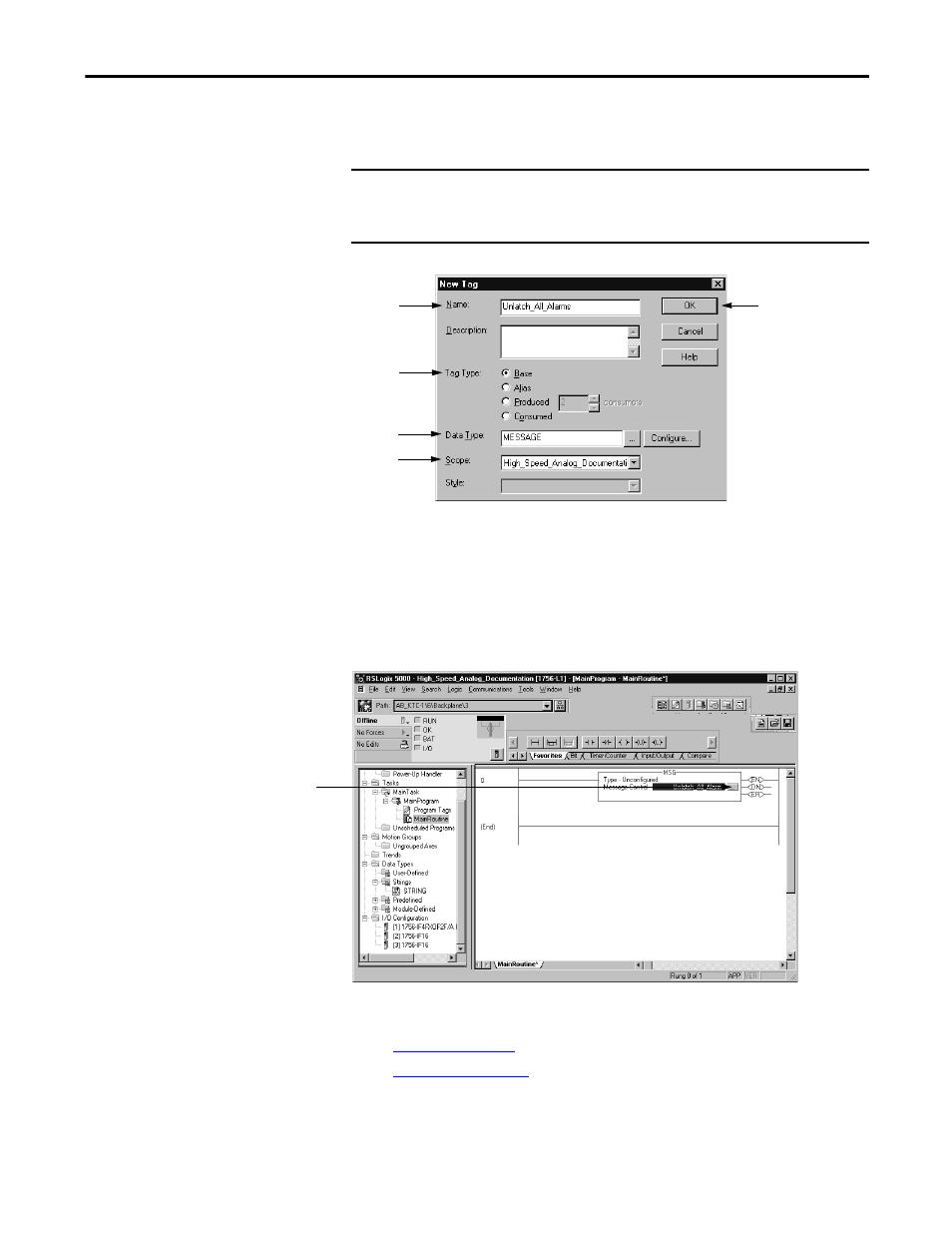

You must fill in the information shown below when the New Tag dialog box
appears.
Configure the Message Instruction
After creating a new tag, you must configure the message instruction.
You type message configuration on the following tabs:
•
Configuration Tab
•
Communication Tab
IMPORTANT
We suggest you name the tag to indicate what module service is sent by the
message instruction. For example, the message instruction below is used to
unlatch a high alarm, and the tag is named to reflect this.
IMPORTANT: You can create message tags only with the
controller scope. Use the Scope pull-down menu to choose the
name of the controller project you are currently using.
Click OK when finished.
Choose the MESSAGE data type.
Choose the Base tag type.
Choose the Controller Scope.
Name the tag.
Click the ellipse (...) to proceed
to the message configuration.
