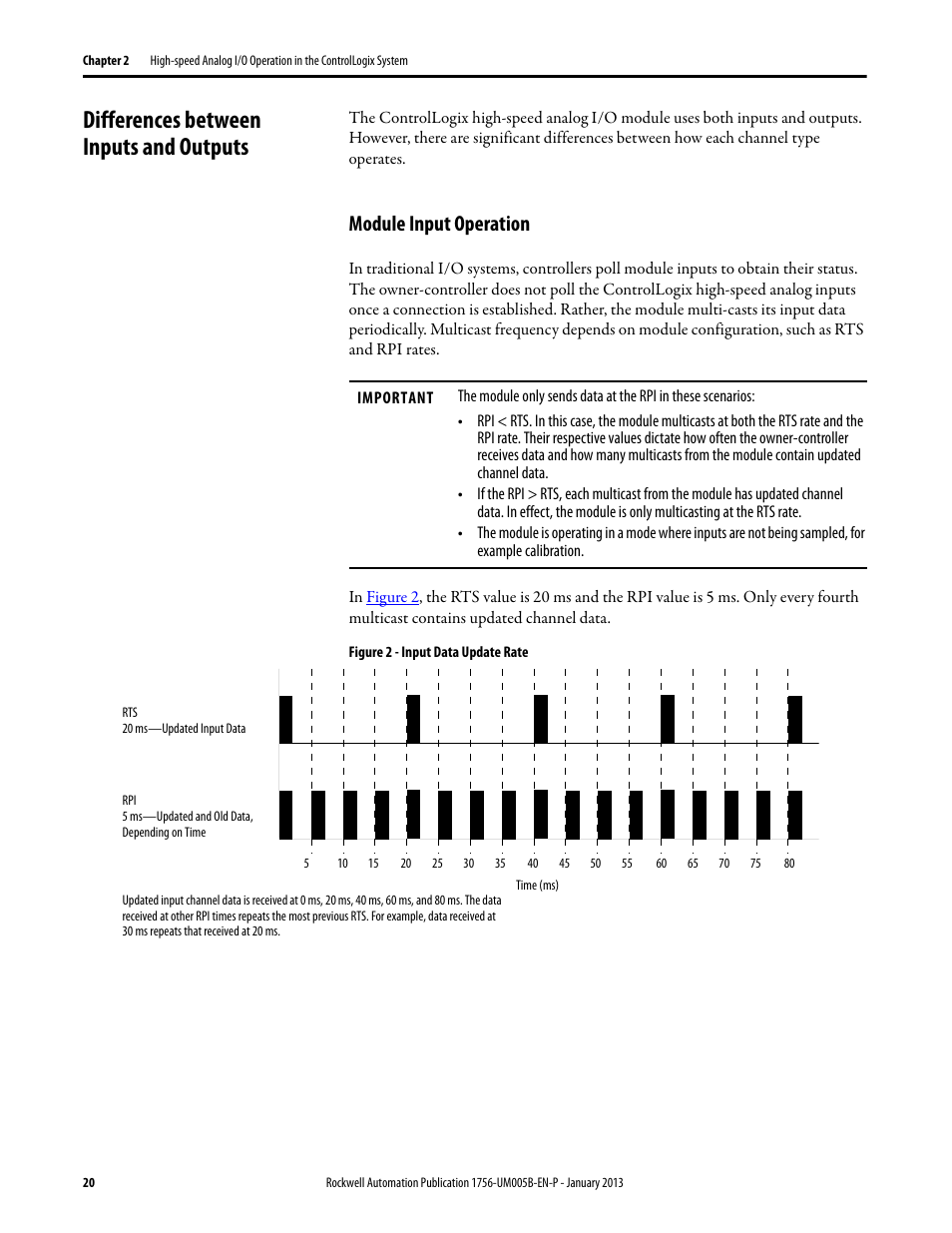

Differences between inputs and outputs, Module input operation – Rockwell Automation 1756-IF4FXOF2F ControlLogix High-speed Analog I/O Module User Manual
Page 20
