7–4 Monitoring and Controlling the Loops
Publication 1771Ć6.4.5 - January 1997
To Cancel
At any time at the change-settings dialog box, you can select
Cancel.
This will cancel all of your selections at this dialog box and return
you to the Loop Monitor screen.
To Download
Once you have entered the appropriate values at the change-settings
dialog box, you can download them to the PLC data-table interface
area by selecting
Download.
From this dialog box, you can not download to the disk file.
To monitor the common functions of a particular module, at the
Module Manager screen, select the module; from the
Module menu,
select
Monitor .
The Module Monitor screen appears.
Changing loop settings
Double-clicking on a loop opens the Change Settings screen for that
loop.

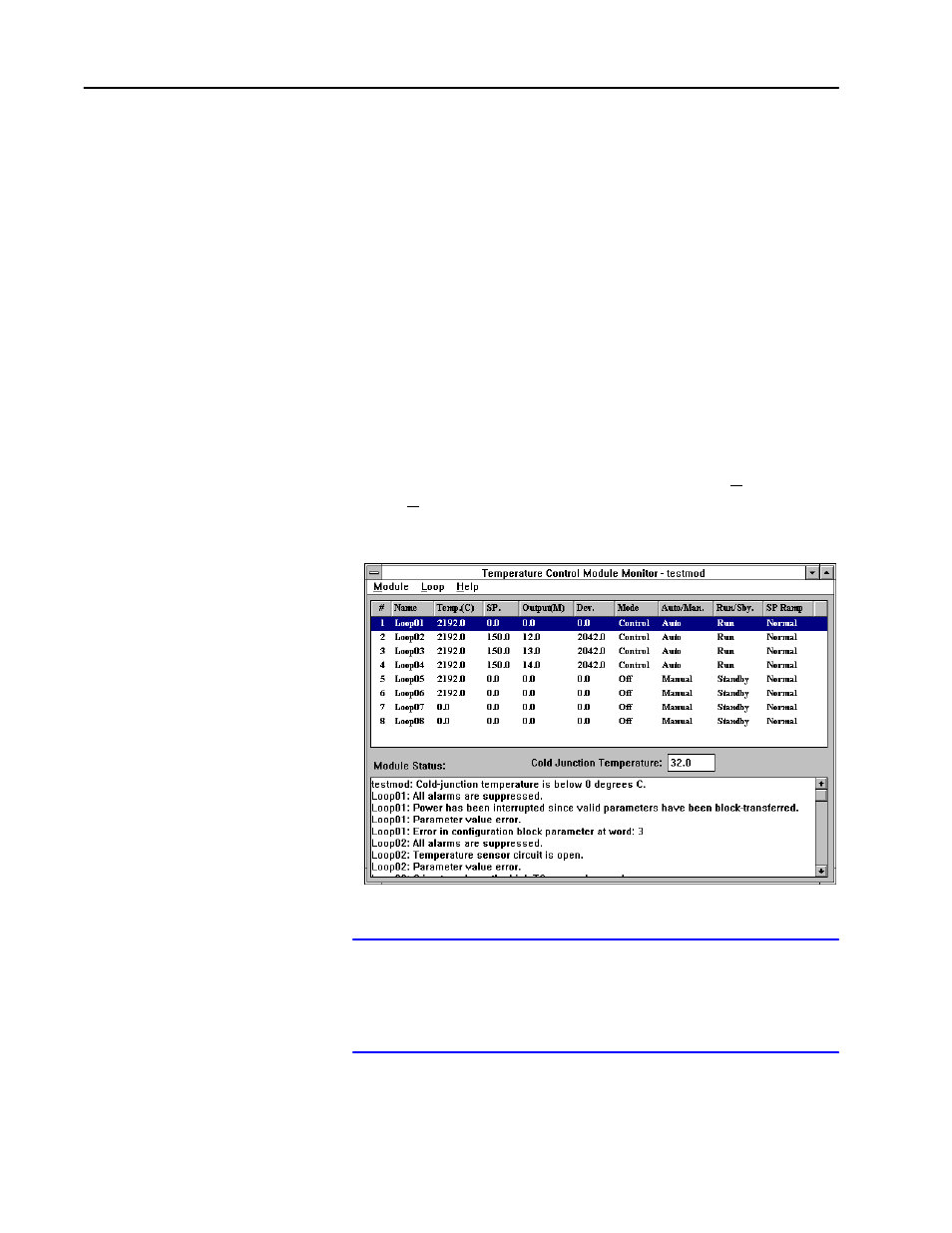

Module Monitor Screen
"
