Rockwell Automation 1771-TCM TEMPERATURE CONTROL User Manual
Page 17
2–4
Installing the Software
Publication 1771Ć6.4.5 - January 1997
6. Insert disk 2 of the Configuration Software into drive
a:
and
click on
OK.

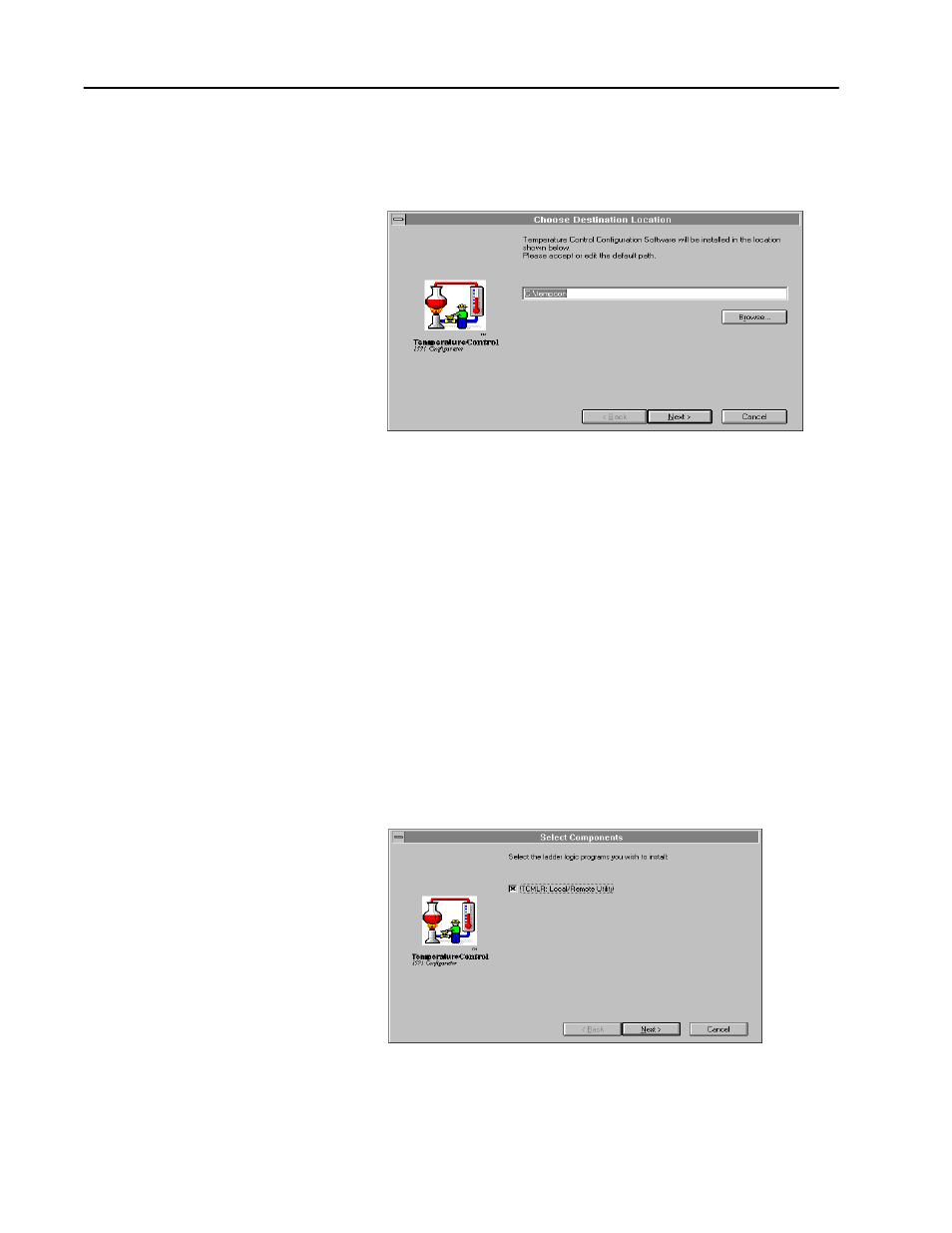

The Choose Destination Location screen appears.
7. Either enter a new destination where you would like the TCM
software to be installed, or click on the
Next button to accept the
default directory.
If the directory does not already exist, you are prompted to decide
whether you want to create it. Choose
Yes if you want the system
to create the directory.
The software installation continues and the percentage graph
displays installation status.
You are prompted to enter disk 3.
8. Insert disk 3 into drive
a:
and click on
OK.
The installation continues.
You are prompted to decide whether you want to install the ladder
logic utility programs. If you choose
Yes, the Select Components
screen appears.
