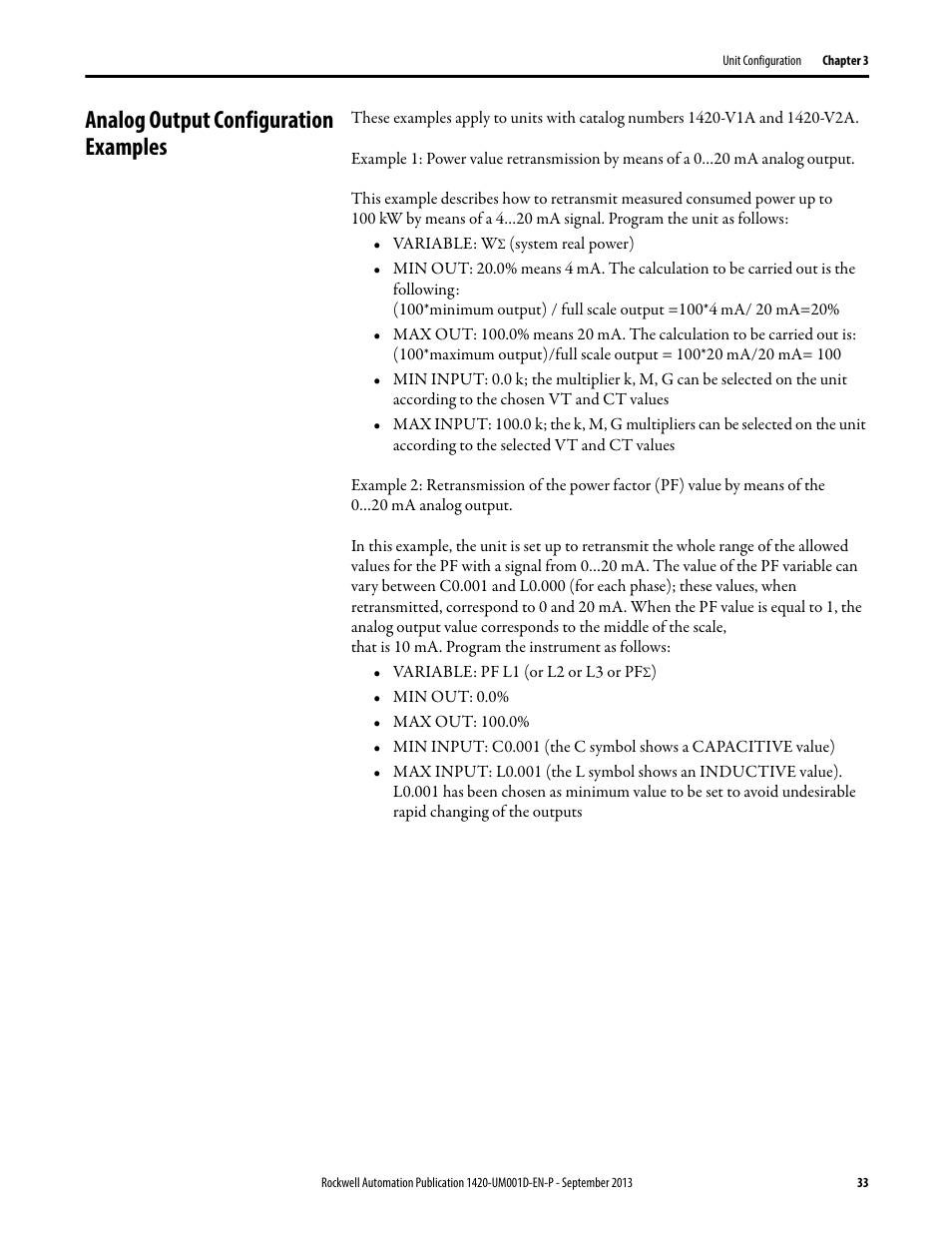

Analog output configuration examples – Rockwell Automation 1420 PowerMonitor 500 User Manual
Page 33
