Page 10: Contacteur sous vide

1-6
Contactor Product Description
1502-UM051E-EN-P – June 2013
Contactor Identification
Each contactor is identified with a nameplate (Figure 1.5) attached to the
interphase barrier retainer at the front of the contactor. The nameplate informa-
tion includes the Catalog Number, Series Letter, Voltage Rating, Non-enclosed
Current Rating, Interrupting Capacity, Altitude Range, CSA and UL markings.
VACUUM CONTACTOR
3Ø
CET APPAREIL. DES RAYONS X DANGEREUX
READ INSTRUCTIONS BEFORE ENERGIZING
LIRE LES INSTRUCTIONS AVANT D'ALIMENTER
THIS DEVICE.MAY PRODUCE HARMFUL X-RAYS.
CONTACTEUR SOUS VIDE
E102991
MADE IN CANADA
PEUVENT SE PRODUIRE
2500-
PLAGE D'ALTITUDE
ALTITUDE RANGE
POUVOIR DE COUPURE
INTERRUPTING CAPACITY
CAT.
LR12235
IEC60470
V.
50/60 HZ.
AMP.
M.
SER.
AMP.
C
US

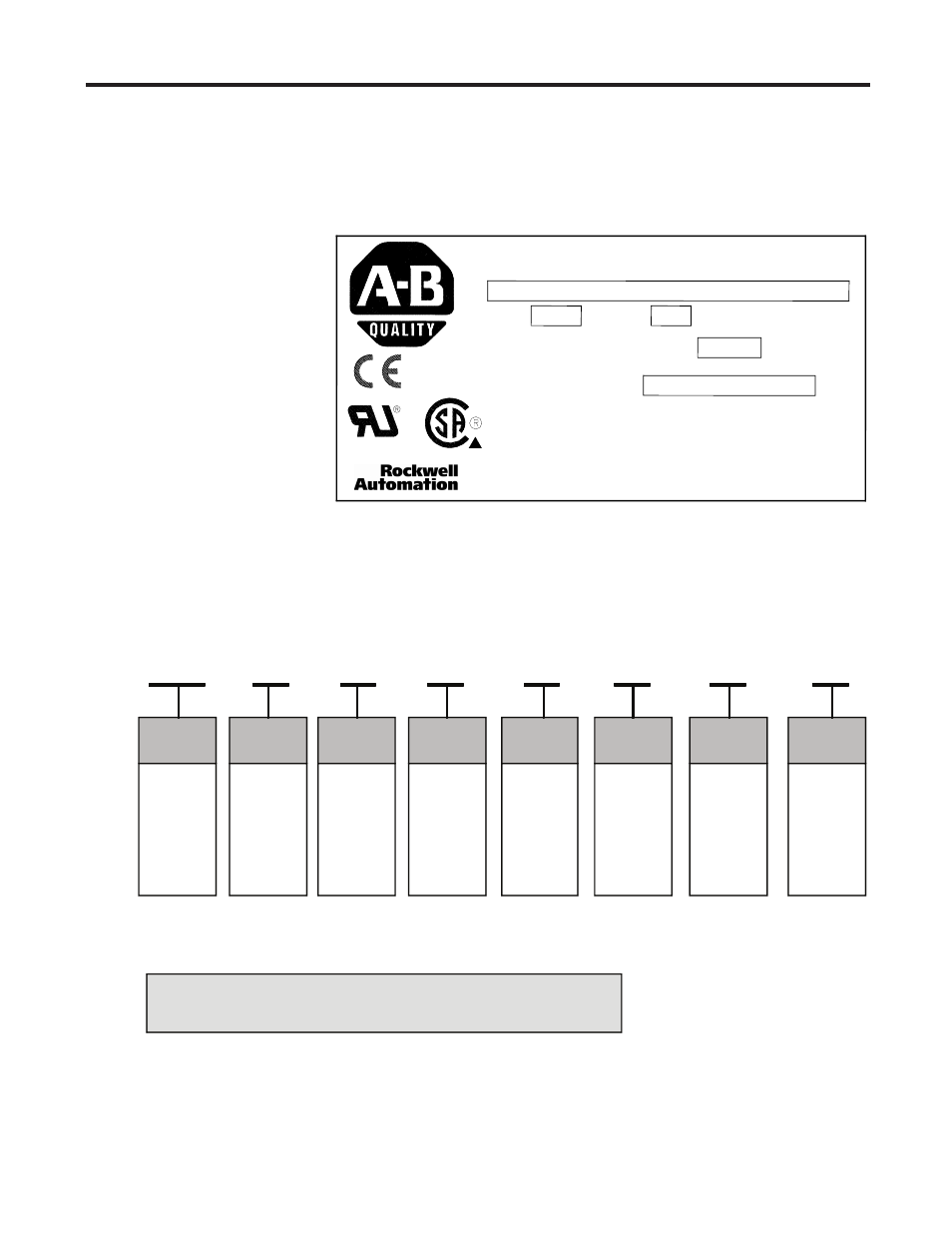

Figure 1.5 – Contactor Label
Catalog No. Explanation
The following catalog number explanation will help identify the contactor and
shall be used when contacting your local Rockwell Automation Sales office or
the factory for assistance.
A= 3 p o le, electrically held contactor
B= 3 p o le, mech an ically latched contactor with electrical an d mechanical release
1502 - V
8
D
X
D
A
- 1
First
Position
Bulletin
N um ber
1502
Second
Position
C ontac tor Ty pe
and Interloc k
V = Vacuum ,
no interlock
VC = Vacuum ,
Optim ized for
IntelliVAC ™
control
Third
Position
C ontac tor
Size
8 = 800 A
Fourth
Position
N om inal
Line Voltage
D = 7200 V
Fifth
Position
F us e M ounting
Prov is ions
X = N one
Sixth
Position
C oil
Voltage
D = 110 V D C
(120 V AC )
Seventh
Position
F unc tion
Refer to
Table 1.A
Eighth
Position
Altitude
C ode (m eters )
1 = 0 – 1000
2 = 1001–2000
3 = 2001–3000
4 = 3001–4000
5 = 4001–5000
E = 207 V D C
(230 V AC )
D= 3 p o le, electrically held contactor with fast d rop-out time
Table 1.A – Vacuum Contactor Function
