6-4 Vacuum Contactor Installation
1503E-IN001E-EN-P – June 2013
2) Connect the control panel harness to the contactor control wire
plug on the lower left side of the contactor (see Figure 6.3. Each
control wire plug is designed to only connect to a contactor that
has a matching voltage and current rating.
3) Use the terminal blocks on the control panel to connect the unit to
a 120 or 230 volt grounded power source (whichever is applicable
to the control panel) and to other remote devices. See Appendix B
for a typical SMC schematic diagram.
Contactor Control
Wire Plug
Contactor Control
Wire Plug

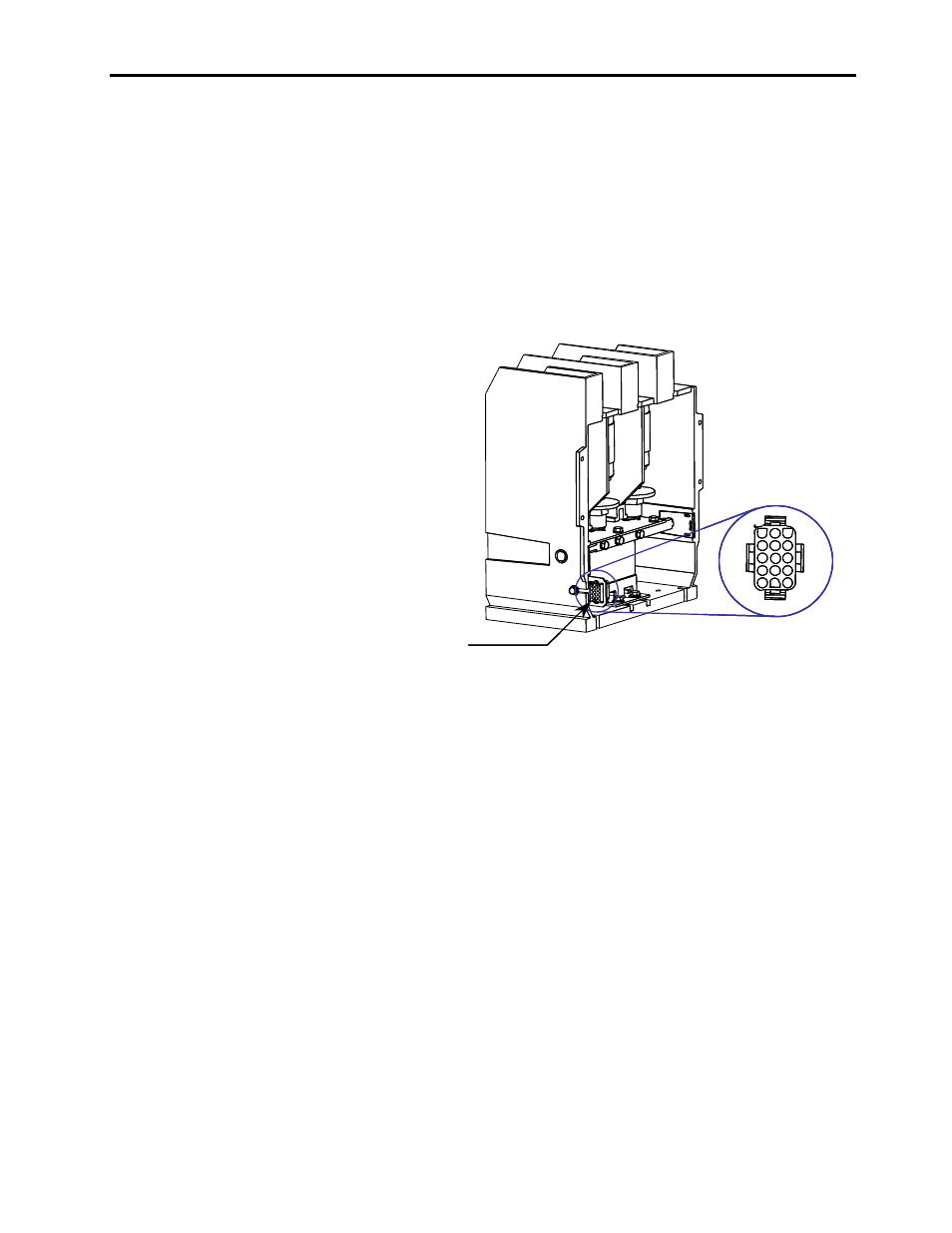

Figure 6.3 – 120V and 230V Control Wire Plug Location
(400A contactor shown)
IntelliVAC Control Module
An IntelliVAC control module can be substituted for the control panel
to control the main and bypass vacuum contactors (Series E contactors
only).
Refer to publications 1560E-UM051_-EN-P and 1503-UM051_-EN-P
(IntelliVAC Series A or B) or 1503-UM052_EN-P (IntelliVAC Series C)
for instructions on wiring and set-up of the IntelliVAC control module.
Bypass Contactor Control
Panel (cont.)
