6-2 Vacuum Contactor Installation
1503E-IN001E-EN-P – June 2013
Bypass Contactor (cont.)
A typical schematic diagram for the main and bypass contactors is
shown in Figure B.1, Appendix B. Figure 6.1 below, shows the point-
to-point connections for the main and bypass contactors.
I M P O R T A N T I M P O R T A N T It is the responsibility of the OEM to ensure that
suitable line and load cables are used that satisfy
the requirements of the equipment and meet
local electrical codes.
Incoming power from fused power source
Main Contactor
(Rear View)
Bypass
Contactor
(Rear View)
Power Stacks
To load CTs
Incoming power from fused power source
Main Contactor
(Rear View)
Bypass
Contactor
(Rear View)
Power Stacks
To load CTs

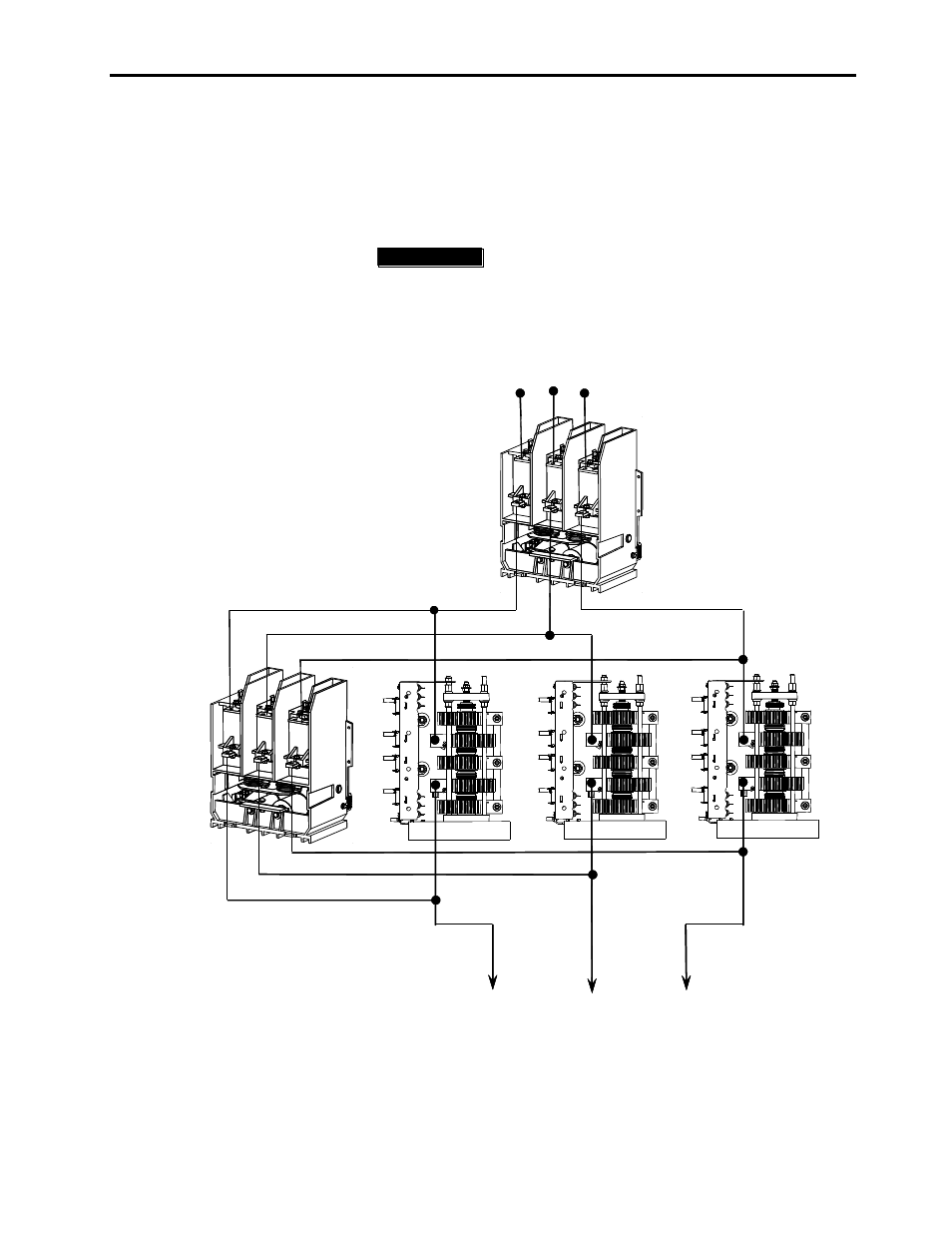

Figure 6.1 – Main and Bypass Contactor Wiring Configuration
