GuardShield™ PAC Safety Light Curtain Installation Instructions
19
Original instructions
System Configuration
DIP-Switch Selection Settings—Transmitter
DIP-Switch Selection Settings—Receiver
After mounting, electrically connecting and aligning the
GuardShield PAC safety light curtain, it is now possible to
configure your system.
To begin system configuration, use the security tool provided to
loosen the screw in the configuration door.
Note: The configuration door screw is a captive screw.
Note: The transmitter can only be configured for beam
coding and Machine Test Signal. If neither of these
configurations are required, then it is only necessary
to configure the GuardShield PAC receiver.
Identify and set the appropriate dip-switches for the
configuration desired.
Dip-switch identification and function is explained in the tables
below.
Follow the Teach Function Procedure to reconfigure the
GuardShield PAC.
When delivered from the factory, the following settings are
configured.
Door Status
Switch
Teach
Button
IMPORTANT
After each reconfiguration of the GuardShield
PAC, test the system for proper configuration
and operation before placing the guarded
machine in operation.

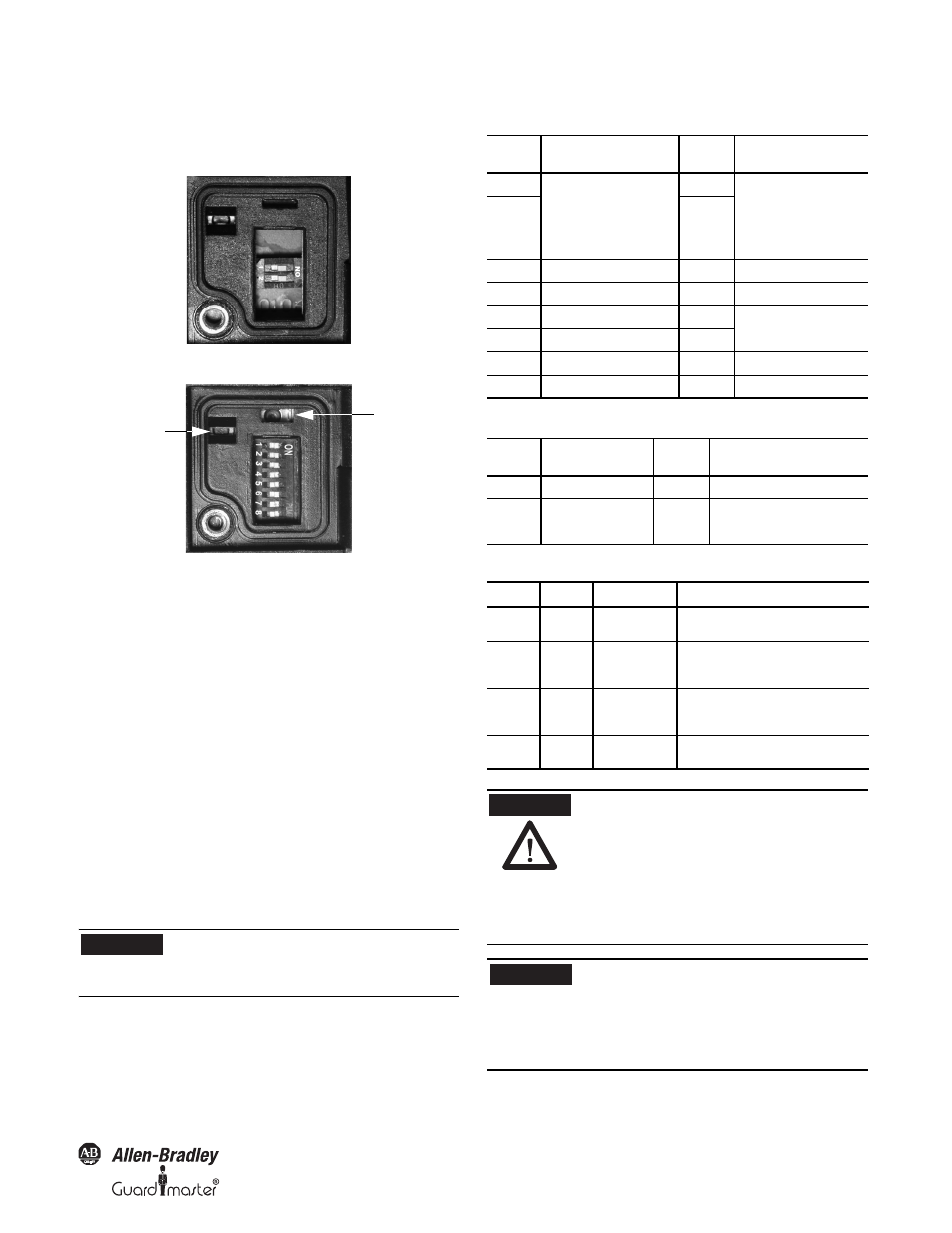

Receiver—Factory Settings
Transmitter—Factory Settings
Settings for Mode of Operation—Receiver
Switch Switch Function
Default
Setting
Description
1 Mode Activation—Combination
activates
one of the following modes:
Guard only, Start interlock,
Restart Interlock ON Guard Only
2 ON
3 MPCE Monitoring disable ON Disabled
4
Not used OFF
5 Not used OFF
6 Not used OFF
7 Set Beam Coding OFF Disabled
8 Not used OFF
Switch Switch Function
Default
Setting
Description
1 Set Beam Coding OFF Disabled
2 Machine Test Signal OFF OFF: Signal High active—No
connection or connect normally open
ON: Signal Low active—Connect N/C
Switch 1 Switch 2 Condition Operation
ON ON Guard Only ON/OFF
Operation
OFF ON Start Interlock
(Push Button
Reset) Interlock at start up—Reset by actuation of
pushbutton switch
OFF OFF Restart
Interlock Interlock at interruption of sensing
area—Reset by actuation of pushbutton
switch
ON OFF Start
Interlock Interlock at start up—Reset by Interruption/
restoration of sensing area for <1 sec
ATTENTION
Every modification at the DIP switches must
be stored in the memory of the device
through the Teach function. Simply changing
the position of a dip switch will not change
the GuardShield. It is necessary to first change
the dip switch position and then perform the
teach function. If the changes have been
enabled in the GuardShield, the amber LED
will flash three times as a visual confirmation
that the change has been accepted.
IMPORTANT
GuardShield PAC light curtains with
ArmorBlock Guard I/O connectivity are
configured from the factory as standard
GuardShield PAC light curtains. However, the
only configurable functionality is beam
coding. All other configurable functions have
been disabled.
