Product Identification
5
2
Product Identification

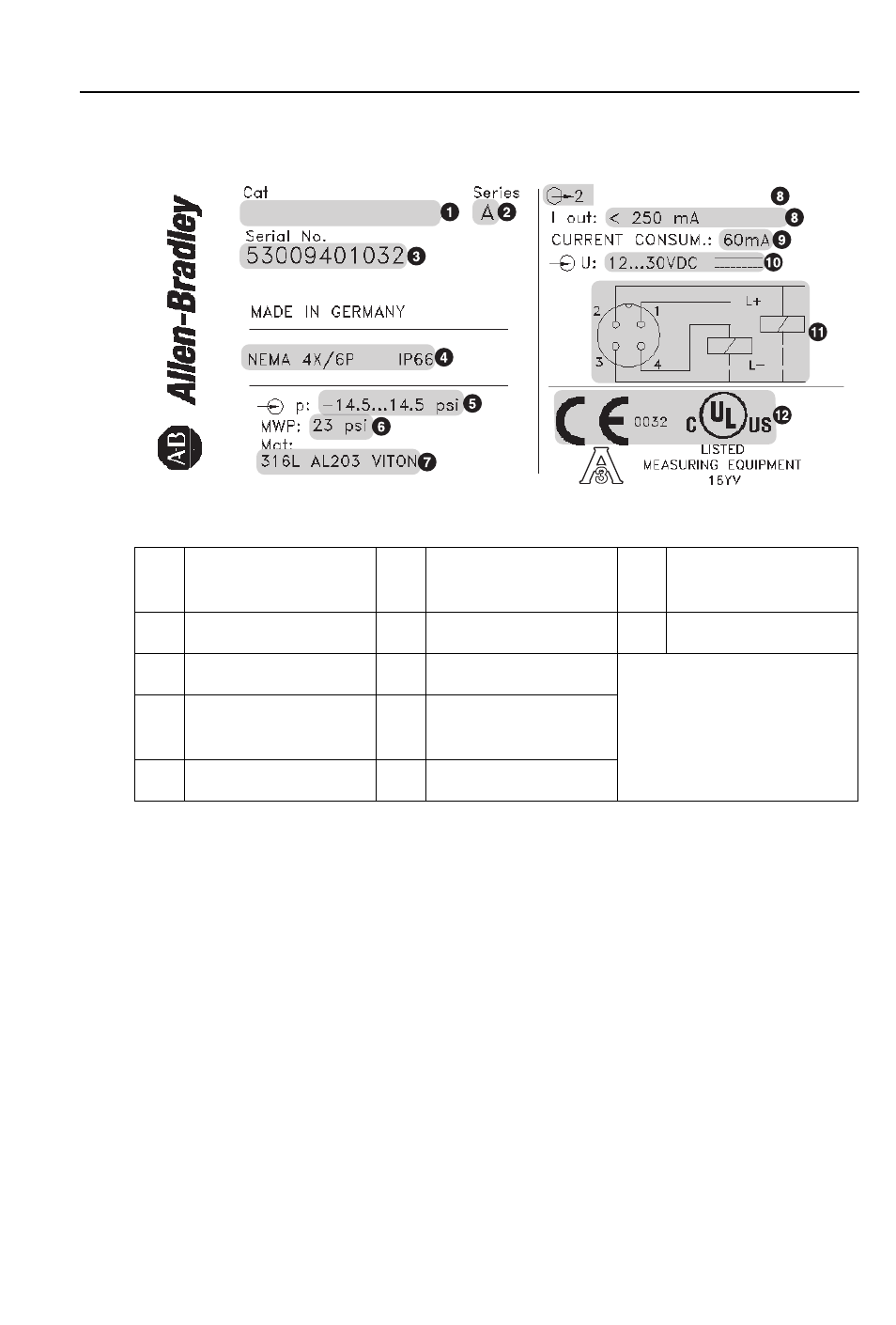

Fig. 1: Explanation of the nameplate - see table below
Notes:
•
Specifications and ratings may differ from those shown in Figure 1, depending on particular
model. Refer to product nameplate or catalog for actual ratings and specifications.
•
The series number indicates the version of the switch. A change in the series letter does not
have any effect on the compatibility (see also Section 6 — Troubleshooting).
•
The MWP (maximum working pressure) is specified on the nameplate. This value refers to
a reference temperature of +20 °C (68 °F) and may be applied to the device for an
unlimited time.
•
The test pressure (Over Pressure Limit [OPL]) corresponds to 1.5 times the MWP and may
be applied only for a limited time before causing damage to the switch.
1
Catalog number
6
Max. working
pressure
11
Wiring diagram
2
Series letter
7
Wetted part materials
12
Approvals
3
Serial number
8
Output
4
Enclosure rating /
Ingress protection
9
Current consumption
5
Operating pressure
10
Operating voltage
PNP / 4…20mA
836E-DC1CC1D4
836E-DC1CC1D4
