5.1.2 Adapter Versions

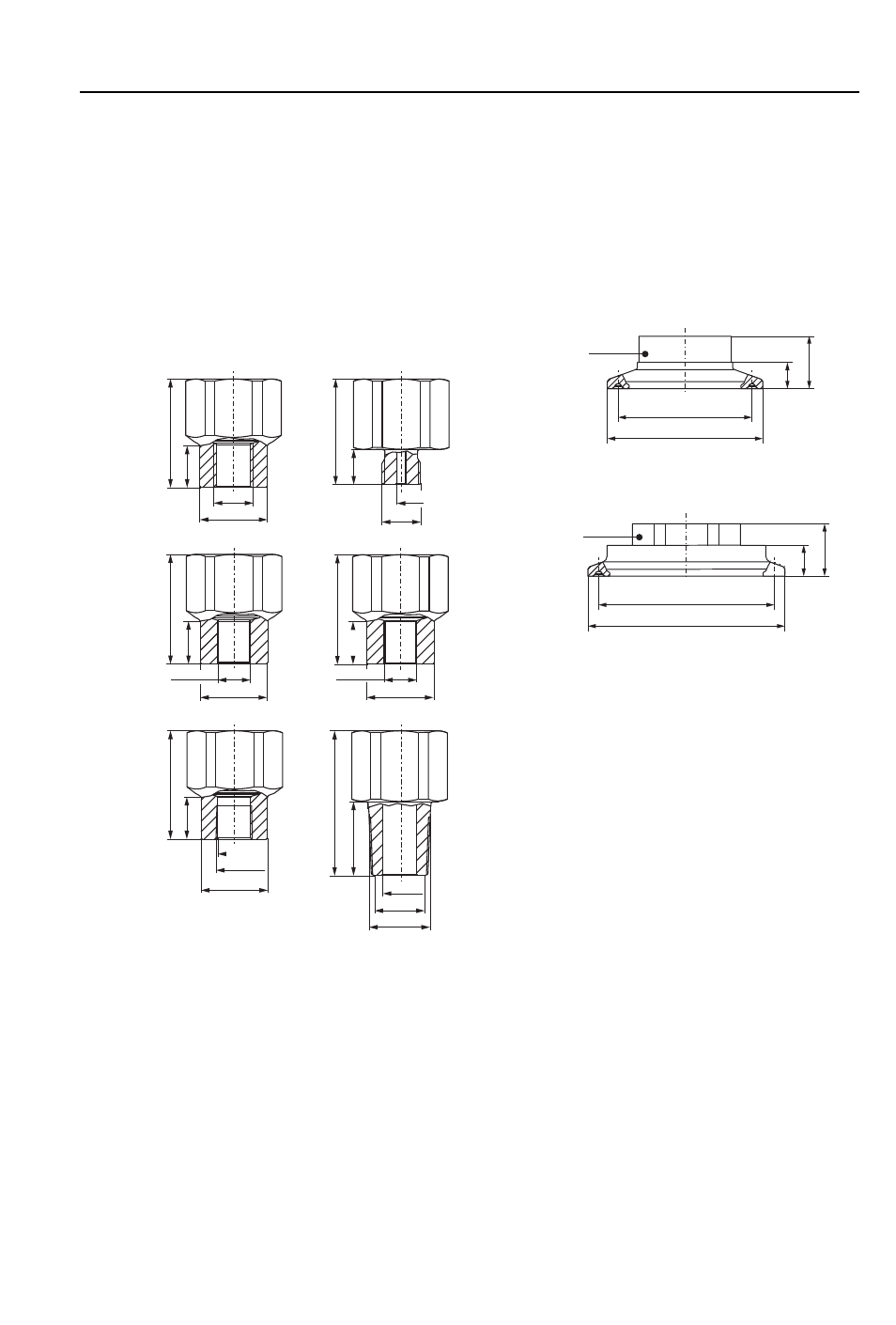

Catalog numbers for thread adapter versions (see diagram for dimensions):
Ø17.3
1/4"NPT
Ø11.4
25.15
836E-NP71
836E-NP75
Ø23
15.5
1/4NPT
Ш11.4
Ш23
34
15.5
7/16-20UNF
836E-NP72
836E-NP74
Ø23
15.5
M12x1.5
34
34
47
Ø23
G1/4
G1/4A
Ø3
836E-NP73 836E-NP76
34
15.5
12
34
Process Adapters
G1/4 female: 836E-NP73
G1/4 male: 836E-NP76
7/16 - 20UNF female: 836E-NP72
7/16 - 20UNF male: 836E-NP75
1/4-in. NPT female: 836E-NP71
1/4-in. NPT male: 836E-NP74
836E-NH7B
8.5
17
SW28
Ш43.5
Ш50.5
(1 to 1-1/2-in. clamp)
Ш56.5
Ш64
10
17
SW32
836E-NH7C
(2-in. clamp)
Sanitary Adapters
1 to 1-1/2-in. clamp: 836E-NH7B
2-in. clamp: 836E-NH7C
