Setting the MAC Address
Set the MAC address using the MAC Address switches (
Refer to
Table 2.A
for specific MAC address switch settings.
Important: Each node on the network must have a unique MAC
address. Set the MAC address before power is applied
because the adapter uses the MAC address it detects when it
first receives power. To change a MAC address, you must
set the new value. Then remove and reapply power to (or
reset) the adapter.

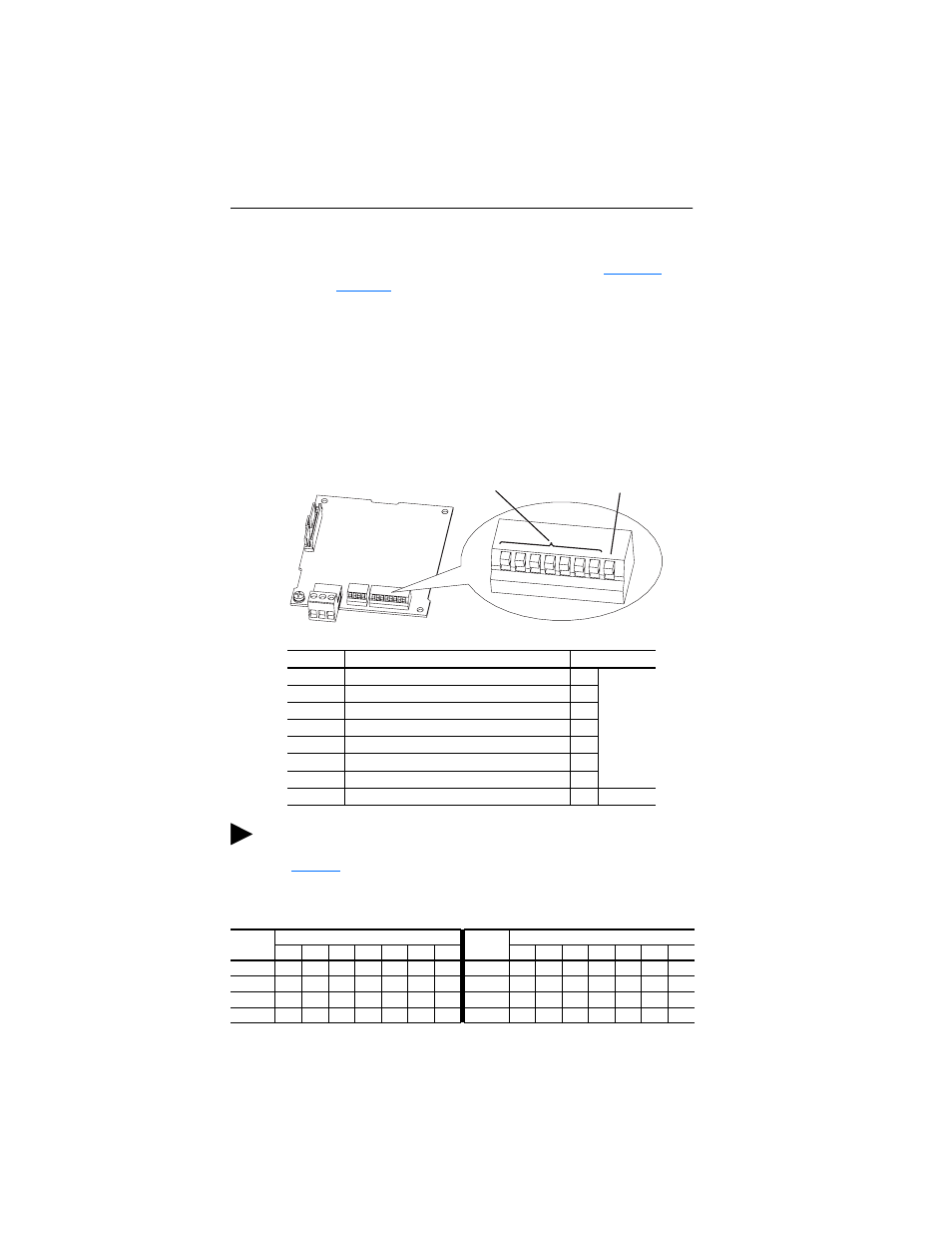

Figure 2.1 Setting the Adapter MAC Address Switches
Switches
Description
Default
SW1
Least Significant Bit (LSB) of MAC Address
0
Node 0
SW2
Bit 1 of MAC Address
0
SW3
Bit 2 of MAC Address
0
SW4
Bit 3 of MAC Address
0
SW5
Bit 4 of MAC Address
0
SW6
Bit 5 of MAC Address
0
SW7
Most Significant Bit (MSB) of MAC Address
0
SW8
Mode (reserved for future use)
—
—
UP = 1 = OPEN
MAC Address Switches
(SW1…SW7)
Mode Switch (SW8)
Reserved for future use
1
5 6 7 8
4
3
2
TIP: The MAC address switch settings can be verified by viewing
Parameter 08 - [MAC Address] or Diagnostic Item number 12
(
) using an optional, external PowerFlex 4-Class HIM,
DriveExplorer software, or DriveExecutive software.
Table 2.A MAC Address Switch Settings (UP = 1 = OPEN)
MAC
Address
Switch Setting
MAC
Address
Switch Setting
SW1 SW2 SW3 SW4 SW5 SW6 SW7
SW1 SW2 SW3 SW4 SW5 SW6 SW7
0
0
0
0
0
0
0
0
4
0
0
1
0
0
0
0
1
1
0
0
0
0
0
0
5
1
0
1
0
0
0
0
2
0
1
0
0
0
0
0
6
0
1
1
0
0
0
0
3
1
1
0
0
0
0
0
7
1
1
1
0
0
0
0
