Frame 2 Installation
2-9
PowerFlex 700L Frames 2, 3A, and 3B Liquid-Cooled AC Drives User Manual

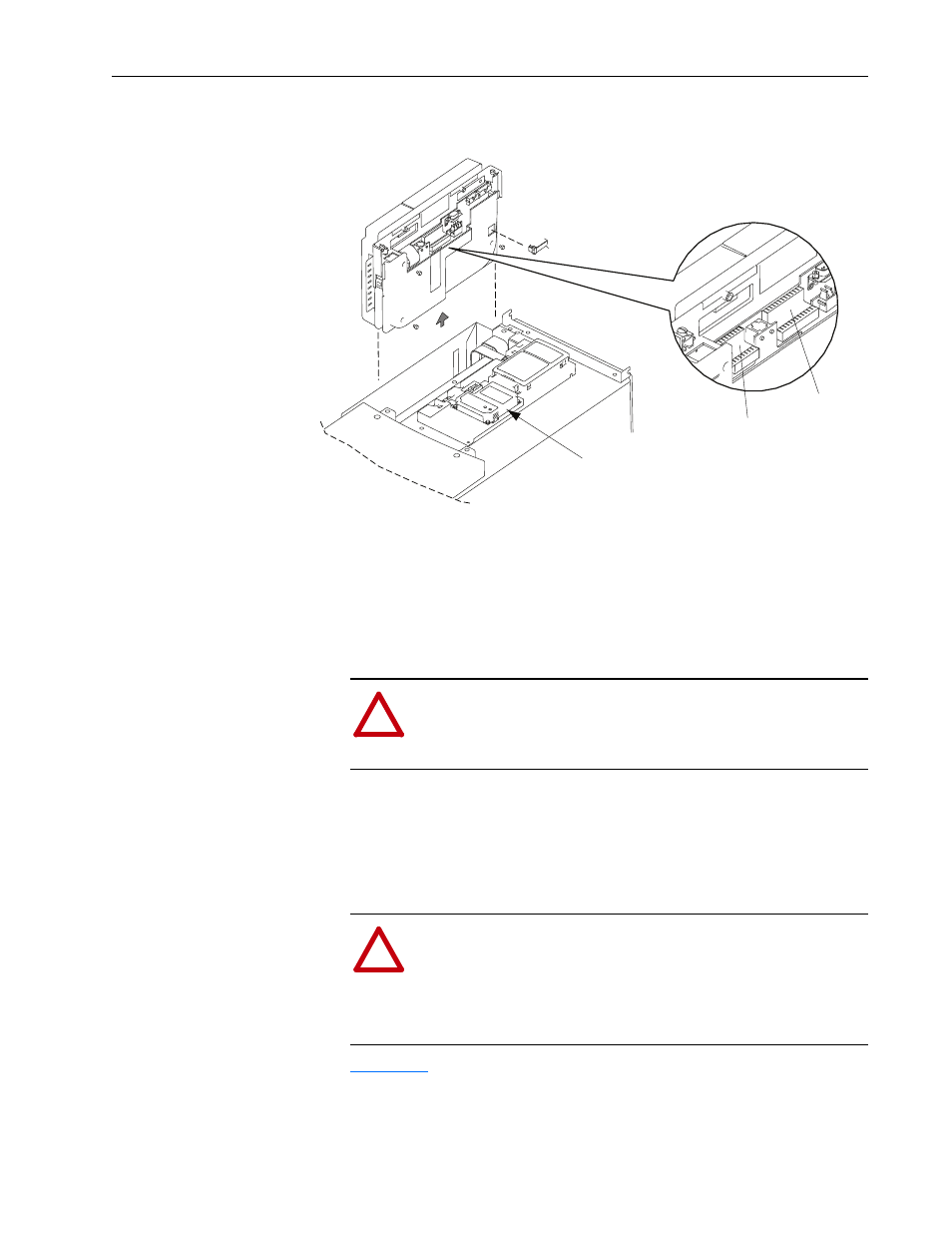

Figure 2.9 Removing the Optional PowerFlex 700S Phase II Control Cassette
Determining Wire Routing
for Control, Ground, Drive
Input, and Motor Output
All wiring should be installed in conformance with the applicable local,
national, and international codes (for example, NEC/CEC). Signal wiring,
control wiring, and power wiring must be routed in separate conduits to
prevent interference with drive operation. When hubs are not provided, use
grommets to guard against wire chafing.
Do not route more than three sets of motor leads through a single conduit.
This minimizes cross-talk that can reduce the effectiveness of noise
reduction methods. If more than three drive/motor connections per conduit
are required, shielded cable must be used. If possible, each conduit should
contain only one set of motor leads.
shows locations for Frame 2 control wire routing, ground, drive
input, motor output, DPI communication ports/cable routing, and coolant
connections.
TB2 Terminals
TB1 Terminals
Detail
Communications
Adapter Option
!
ATTENTION: Do not route signal and control wiring with
power wiring in the same conduit. This can cause interference
with drive operation. Failure to observe this precaution can result
in damage to, or destruction of, the equipment.
!
ATTENTION: Unused wires in conduit must be grounded at
both ends to avoid a possible shock hazard caused by induced
voltages. Also, if a drive sharing a conduit is being serviced or
installed, disable all drives using this conduit to eliminate the
possible shock hazard from cross-coupled motor leads. Failure to
observe these precautions can result in bodily injury.
