Page 29: Figure 2.2

Frame 2 Installation
2-3
PowerFlex 700L Frames 2, 3A, and 3B Liquid-Cooled AC Drives User Manual

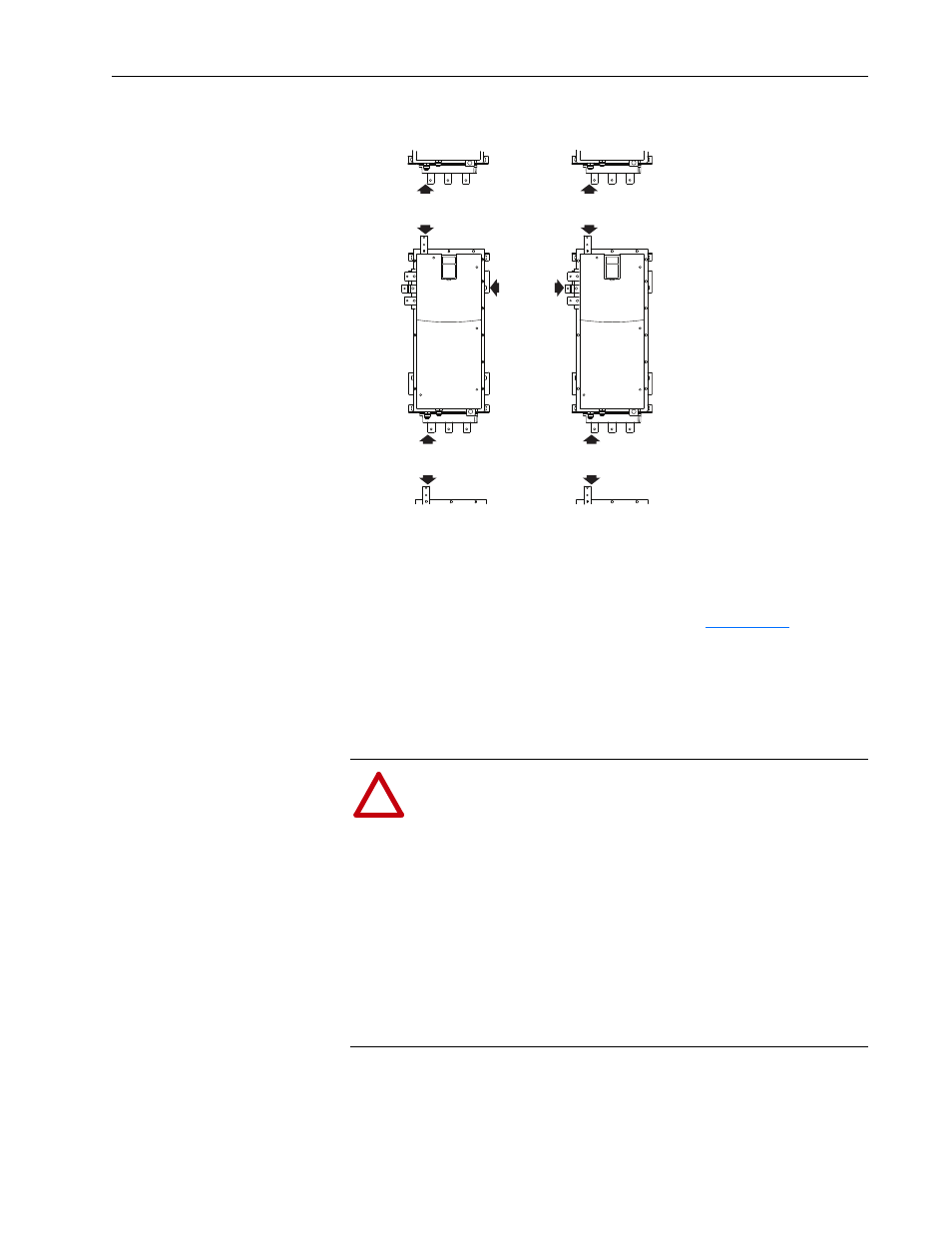

Figure 2.2 Frame 2 Drive Minimum Mounting Clearances
Verifying Drive Input Ratings Match Supplied Power
It is important to verify that plant power meets the input power requirements
of the PowerFlex 700L Frame 2 drive circuitry. See
for input
power rating specifications. Be sure input power to the drive corresponds to
the drive nameplate voltage and frequency.
Equipment Lifting
This section explains how to lift the drive.
101.6 mm
(4.0 in.)
101.6 mm
(4.0 in.)
101.6 mm
(4.0 in.)
101.6 mm
(4.0 in.)
101.6 mm
(4.0 in.)
!
ATTENTION: To guard against possible personal injury and/or
equipment damage, observe the following:
• Do not allow any part of the drive or lifting mechanism to
make contact with electrically charged conductors or
components.
• At no time should a person or their limbs be directly
underneath the items being lifted.
• Do not subject the load to high rates of acceleration or
deceleration.
• Inspect all lifting hardware for proper attachment before
lifting any drive unit.
