Installing output power wiring, Installing output power wiring -29 – Rockwell Automation 20L PowerFlex 700L Liquid-Cooled Adjustable Frequency AC Drive User Manual

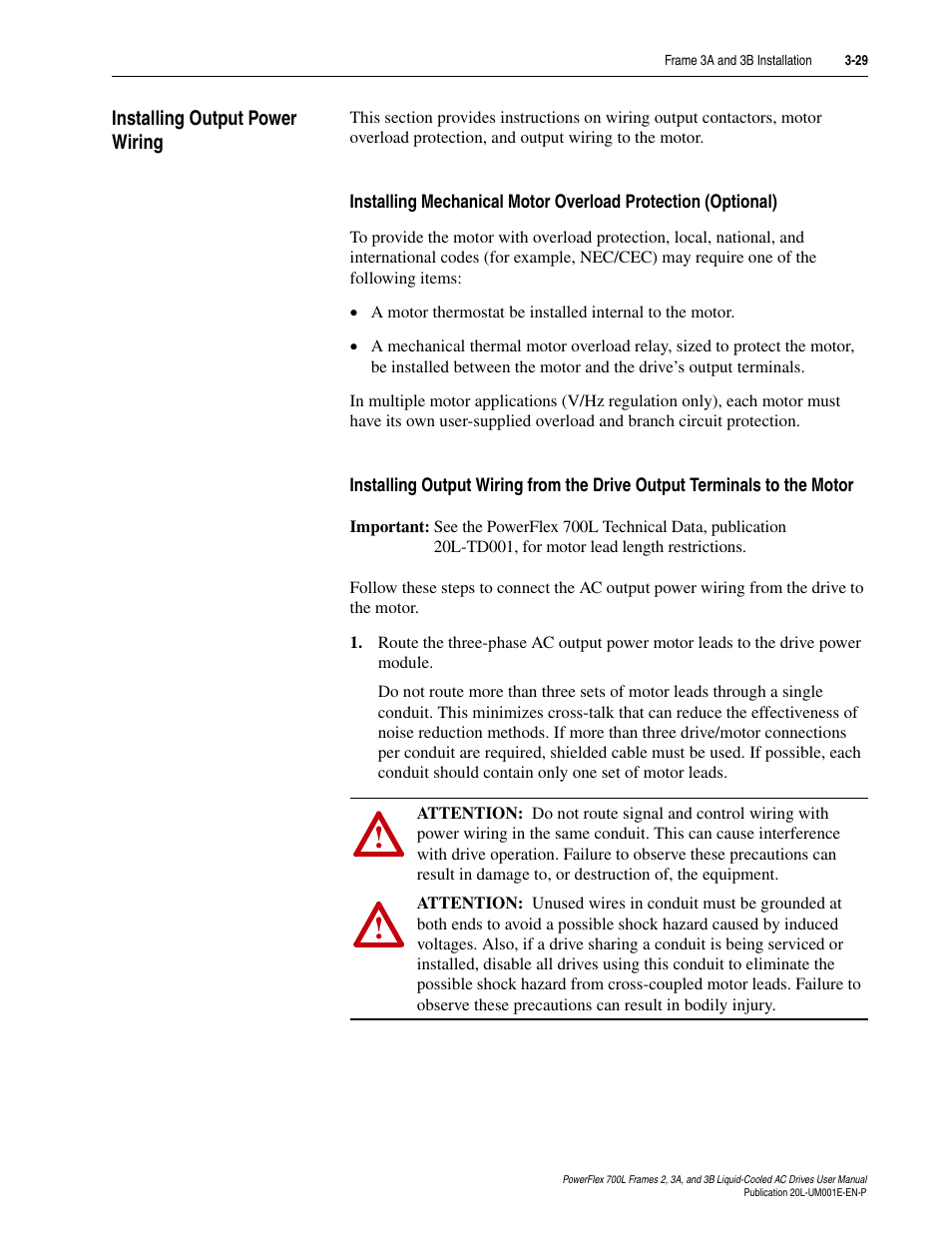

Page 77
