1336 FORCE™ To PowerFlex® 700S Phase II AC Drive Conversion Guide
26
PowerFlex 700S - Frames 5 & 6
No. Name
Frame
Description
Wire Size Range
(1)
(1)
Maximum/minimum sizes that the terminal block will accept - these are not recommendations.
Torque
Terminal
Bolt Size
(2)
(2)
Apply counter torque to the nut on the other side of terminations when tightening or loosening the terminal bolt in order to avoid damage to the terminal.
Maximum
Minimum
Maximum
Recommended
1
Power Terminal Block
5
(75 HP)
(3)
(3)
Not all terminals present on all drives.
R, S, T, BR1, 2, DC+, DC-, U, V and W
50.0 mm
2
(1/0 AWG)
2.5 mm
2
(14 AWG)
See Note
(4)
(4)
Refer to the terminal block label inside the drive.
See Note
(4)
—
PE
50.0 mm
2
(1/0 AWG)
4.0 mm
2
(12 AWG)
—
5
(100 HP)
(3)
R, S, T, DC+, DC-, U, V and W
70.0 mm
2
(2/0 AWG)
16.0 mm
2
(6 AWG)
—
BR1, BR2
50.0 mm
2
(1/0 AWG)
2.5 mm
2
(14 AWG)
—
PE
50.0 mm
2
(1/0 AWG)
4.0 mm
2
(12 AWG)
—
6
Input power and motor connections
120.0 mm
2
(4/0 AWG)
(5)
(5)
If necessary, two wires can be used in parallel to any of these terminals using two lugs.
2.5 mm
2
(14 AWG)
6 N-m
(52 lb.-in.)
6 N-m
(52 lb.-in.)
—
2
SHLD Terminal
5 & 6
Terminating point for wiring shields
—
—
1.6 N-m
(14 lb.-in.)
1.6 N-m
(14 lb.-in.)
—
3
AUX Terminal Block
5 & 6
Auxiliary Control Voltage
(6)
PS+, PS-
(6)
External control power: UL Installation - 300V DC,
±
10%, Non UL Installation - 270-600V DC,
±
10%. Frame 1-6, 100 W
4.0 mm
2
(10 AWG)
0.5 mm
2
(22 AWG)
0.6 N-m
(5.3 lb.-in.)
0.6 N-m
(5.3 lb.-in.)
—
4
Fan Terminal Block
(Common Bus Only)
5 & 6
User Supplied Fan Voltage
0V AC, 120V AC, 240V AC
4.0 mm
2
(10 AWG)
0.5 mm
2
(22 AWG)
0.6 N-m
(5.3 lb.-in.)
0.6 N-m
(5.3 lb.-in.)
—
WIRE RANGE: 14-1/0 AWG (2.5-35 MM
2
)
TORQUE: 32 IN-LB (3.6 N-M)
STRIP LENGTH: 0.67 IN (17 MM)
USE 75 C CU WIRE ONLY
POWER TERMINAL RATINGS
WIRE RANGE: 6-1/0 AWG (16-35 MM
2
)
TORQUE: 44 IN-LB (5 N-M)
STRIP LENGTH: 0.83 IN (21 MM)
GROUND TERMINAL RATINGS (PE)
300 VDC EXT PWR SPLY TERM (PS+, PS-)
WIRE RANGE: 22-10 AWG (0.5-4 MM
2
)
TORQUE: 5.3 IN-LB (0.6 N-M)
STRIP LENGTH: 0.35 IN (9 MM)

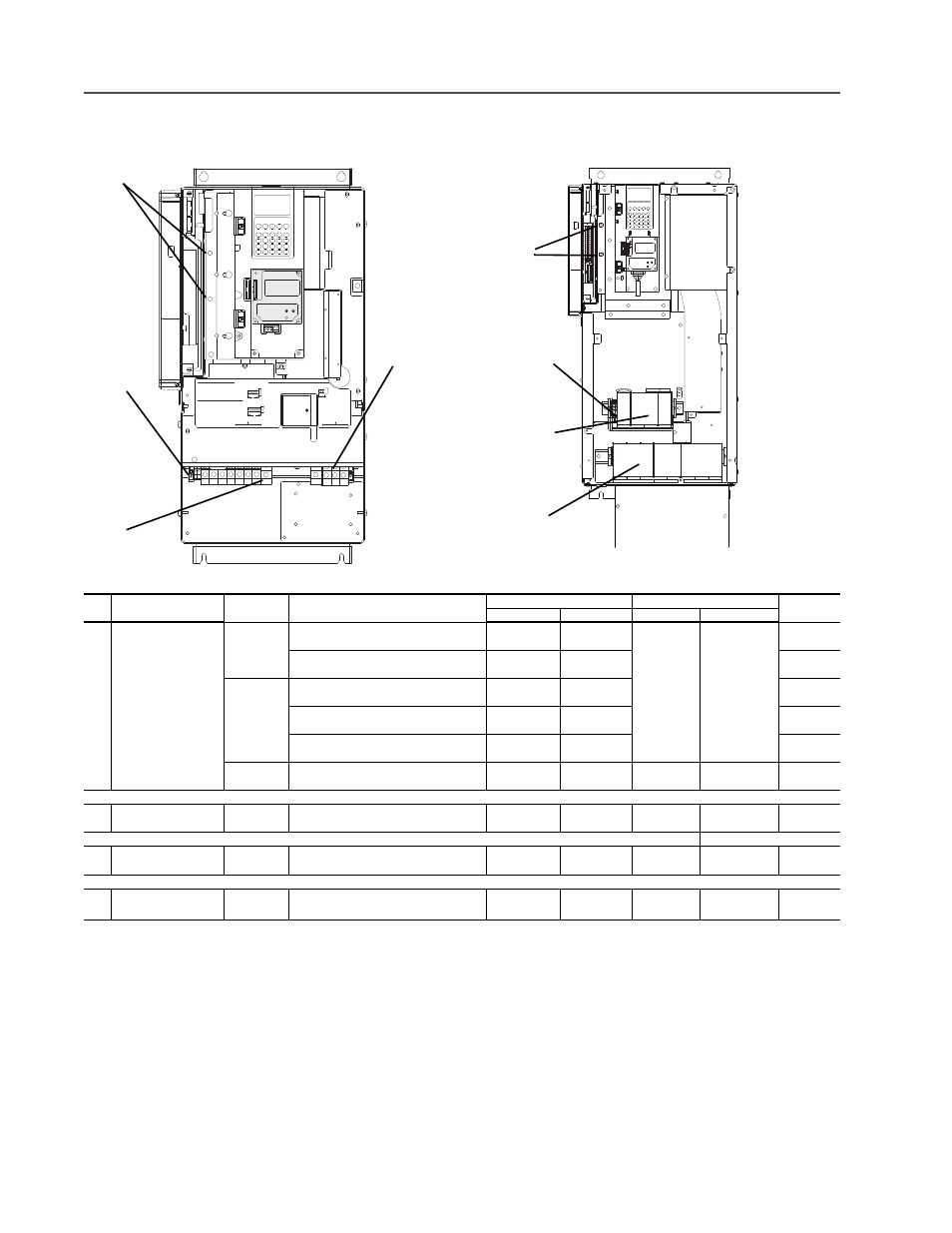

17
