Sar gate output cable, Control circuit power wiring, Sar gate output cable control circuit power wiring – Rockwell Automation 23P PowerFlex DC Stand Alone Regulator and Gate Amplifier User Manual

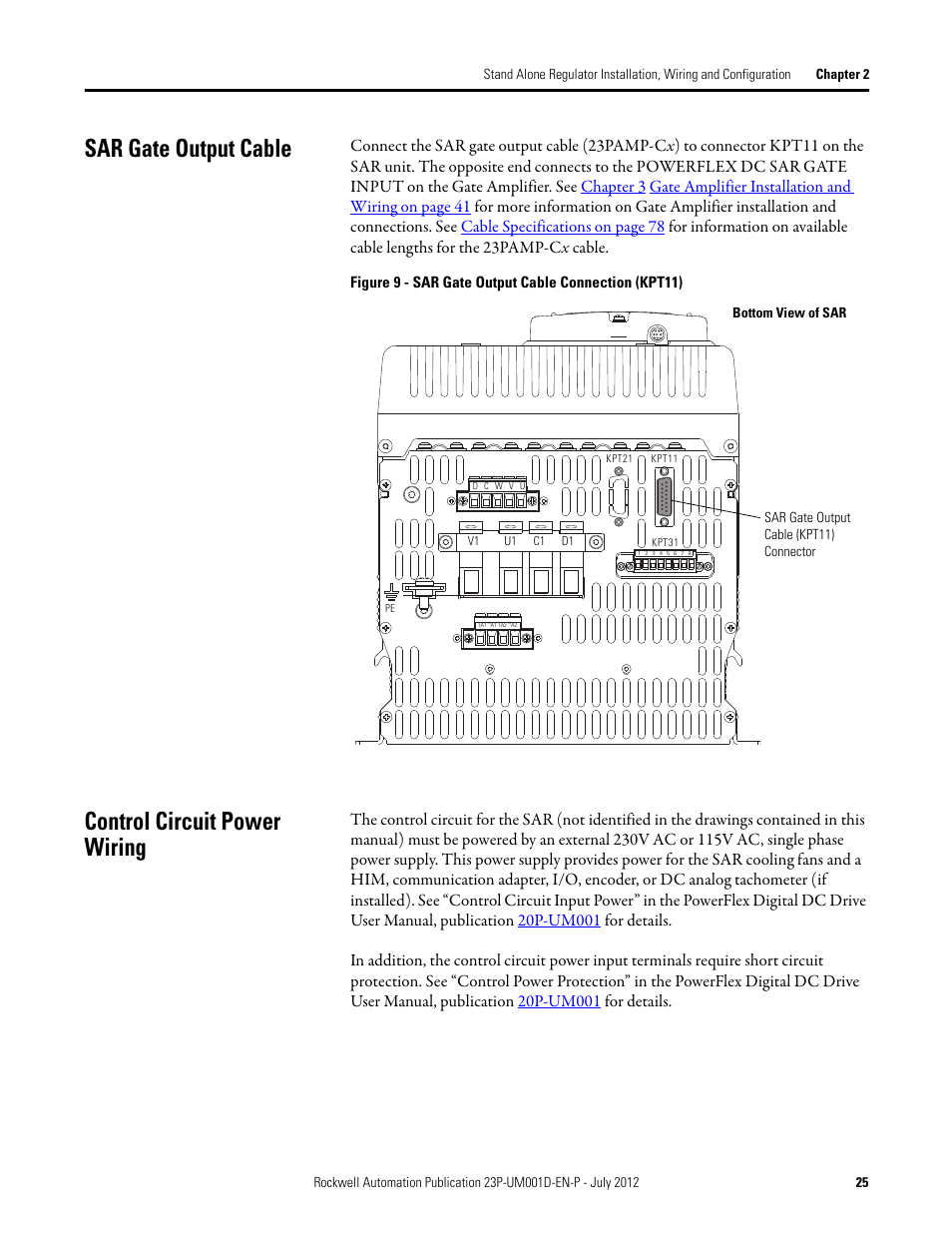

Page 25
