Operating Manual Light Control „PULSE HFMD / PULSE PIR - Vers. IV“ ENG
In-factory setting
The lights are set in-factory such
that initially they can be operated
without changing the settings.
If you want to adapt the light to
individual requirements, you can
change the parameterising func-
tions accordingly (see page 10-35).
Important note!
Both LEDs on the sensor are lit
in green -> Burn-in function is
active.
¾ Light control and presence
control are disabled.
¾ Dimming is not possible.
¾ Wait for the burn-in time (100
operating hours) to elapse.
Operation
Restoring the in-factory
setting
The default settings are restored
by pressing one of the two keys [I
or II] when connecting the light to
the mains.
The following functions are re-
stored:
- Parameterising functions are set
to the default setting.
- All control parameters are set to
the default setting.
- All control and follow-up times
are set to the default setting.
- The burn-in time is deleted (func- The burn-in time is deleted (func-
tion „OFF“)
Operating and
display elements
All operating and setting functions
be set from the column operating
unit [Fig. 3] or from the sensor
operating unit [Fig. 4].
In the column operating unit, the
functions and settings are dis-
played via the light bar.
In the sensor operating unit, all
functions and settings are dis-
played via the two LEDs.
Note: If a column operating unit
is available, the LED display in
the sensor is automatically sup-
pressed.

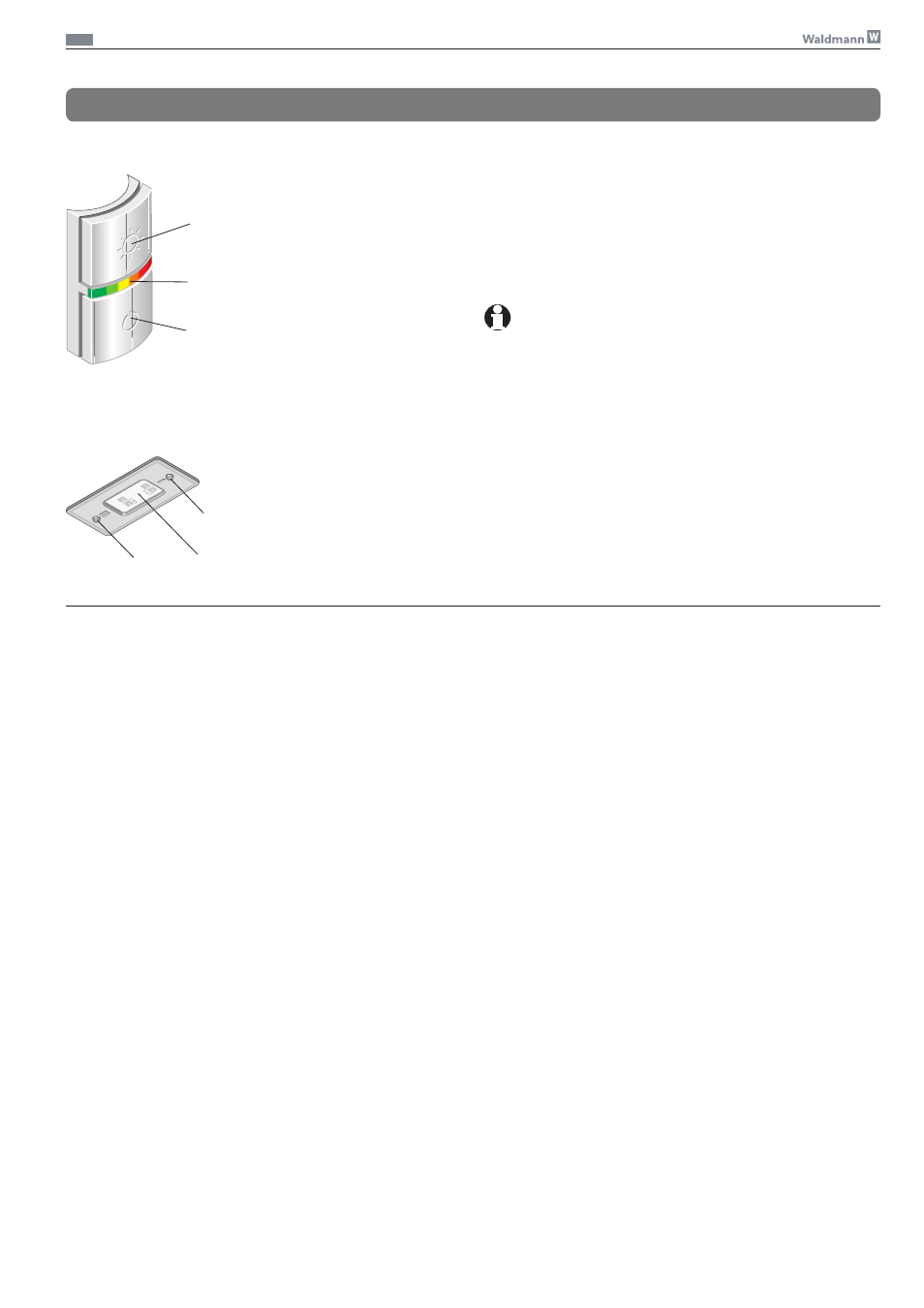

Fig. 3 (column operating unit)
Fig. 4 (sensor operating unit)
Key I
Light
bar
Key II
Key I
+ LED I
Sensor Key II
+ LED II
