Operating Manual Light Control „PULSE HFMD / PULSE PIR - Vers. IV“ ENG
Example
How to load and change the func-
tion x.y is shown using the func-
tion 2.5 "Continuous mode" as an
example.
a) To load the parameterisation
function:
press both keys for at least
10 seconds
b) To load setting level x:
press both keys (x-1) times
for 2 seconds
c) To load function y:
press key II (y-1) times
d) To change the function:
press key I
e) To leave the parameterisation
mode:
do not press any key for at
least 10 seconds.
Loading setting level 2
Press both keys
for at least 10 seconds
Actuation Display
Light bar LED 1 (dark green)
Parameterisation mode ON
Function 2.5 Continuous mode
Light bar LED 5 (light red)
Function 2.5
Changing the function from ON to OFF or vice versa
LED changes from constantly lit
to flashing or vice versa:
- constant = Function ON
- flashing = Function OFF
Loading the parameterisation mode
Press both keys again
for 5 seconds
Light bar LEDs 1+2
Level 2
Press key II 4 times

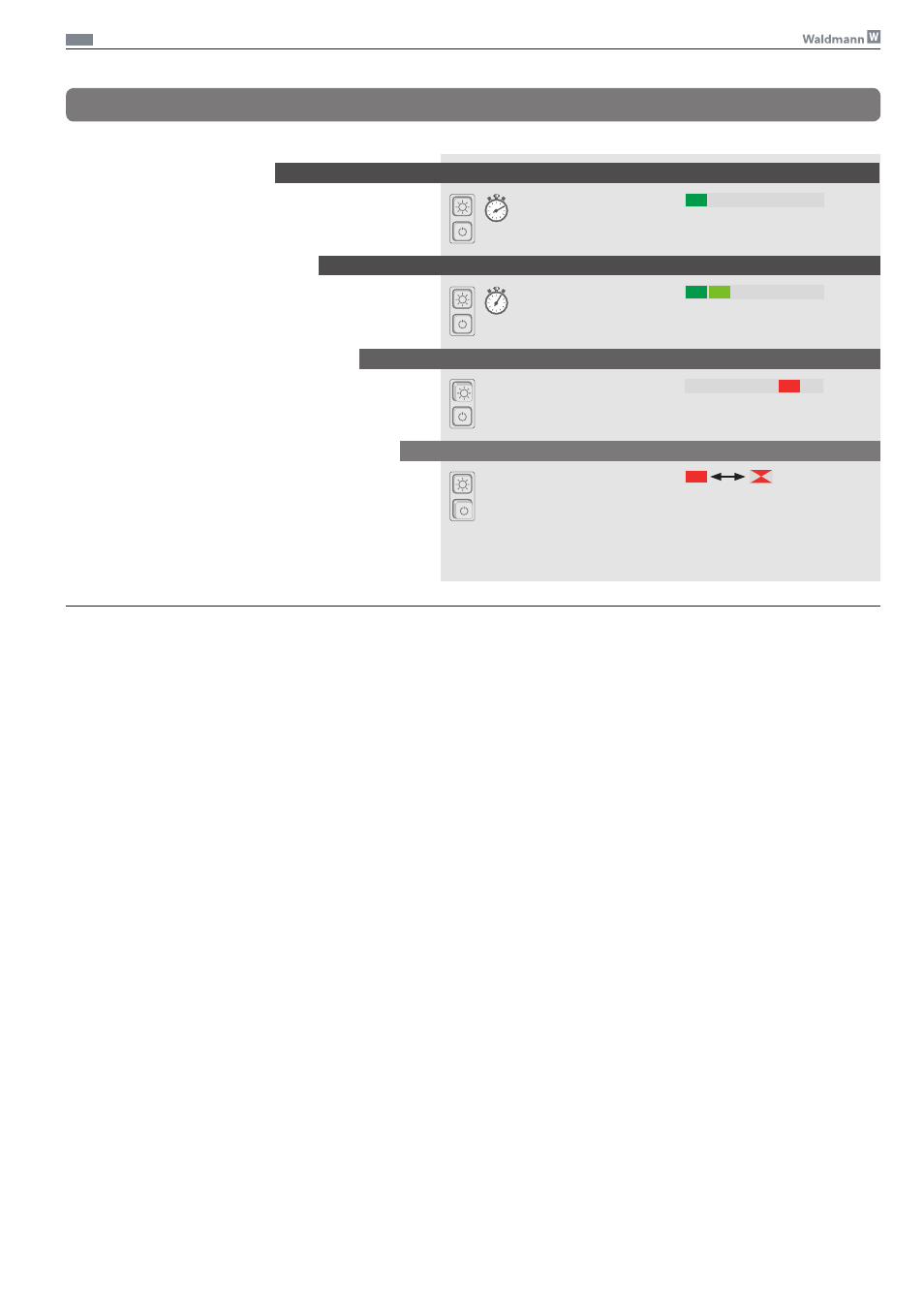

Changing the parameterising functions (Example)
4 x
n x Press key I as often as
necessary for reaching
the desired value
