Operating Manual Light Control „PULSE HFMD / PULSE PIR - Vers. IV“
ENG
Changing the parameterising functions

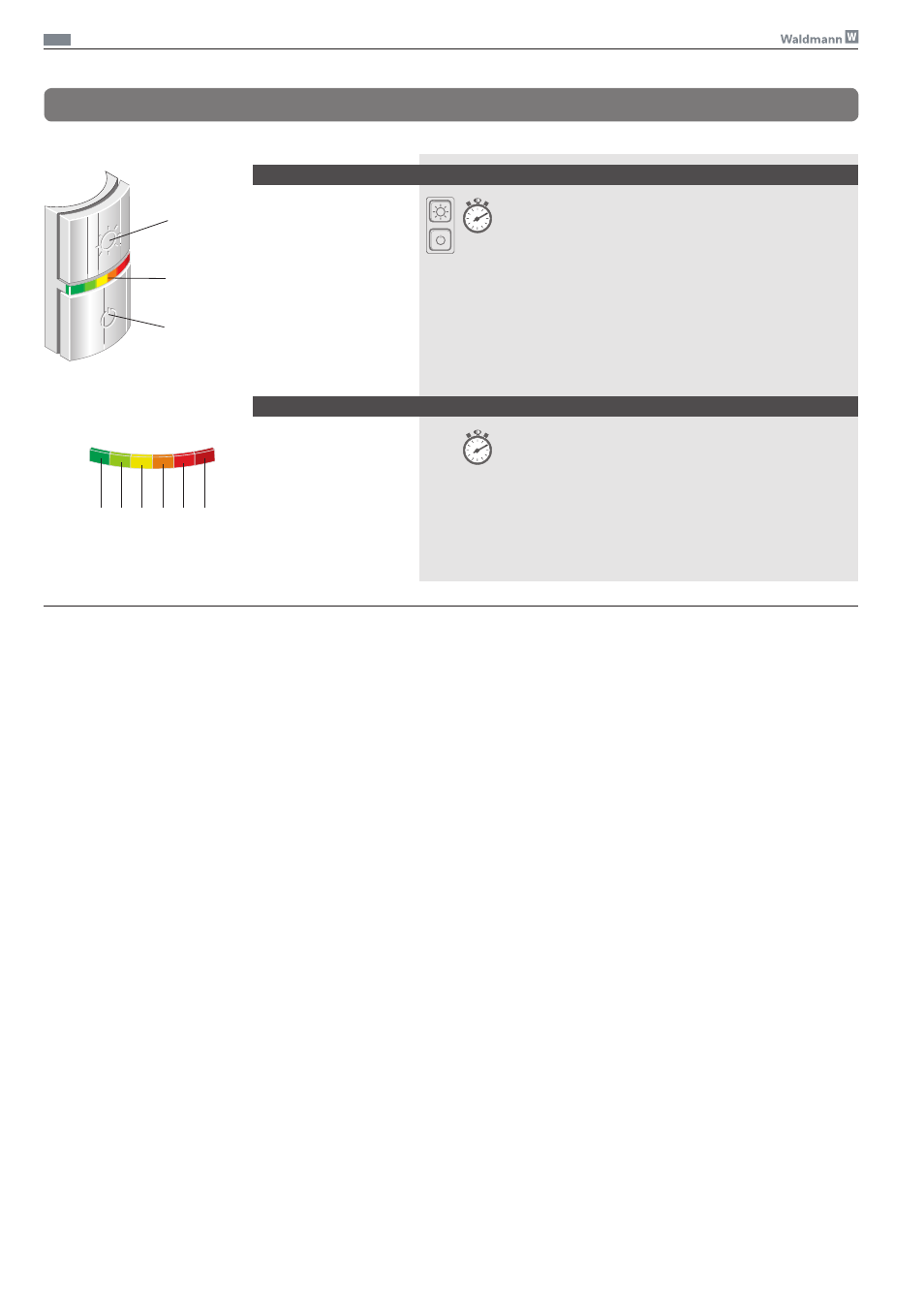

Fig. 3
LED 1 2 3 4 5 6
Fig. 6
Key I
Light
bar
Key II
Actuation
Consequence
The parameterisation mode
can be loaded by pressing
both keys simultaneously
for 10 seconds.
The parameterisation mode
can be left by not pressing
both keys for 10 seconds.
The operating unit switches to
the parameterisation mode (first
to setting level 1).
The LEDs valid for the level will
be lit on the light bar:
LED 1
Level 1
LEDs 1+2
Level 2
LEDs 1+2+3
Level 3
LEDs 1+2+3+4
Level 4
Do not press any key
for at least 10 seconds
The parameterisation mode is
left.
Switching to the parameterisation mode
Leaving the parameterisation mode
Press both keys
for at least 10 seconds
