Operating Manual Light Control „PULSE HFMD / PULSE PIR - Vers. IV“
ENG
Actuation
Consequence
Changing the parameterising functions (Continued)

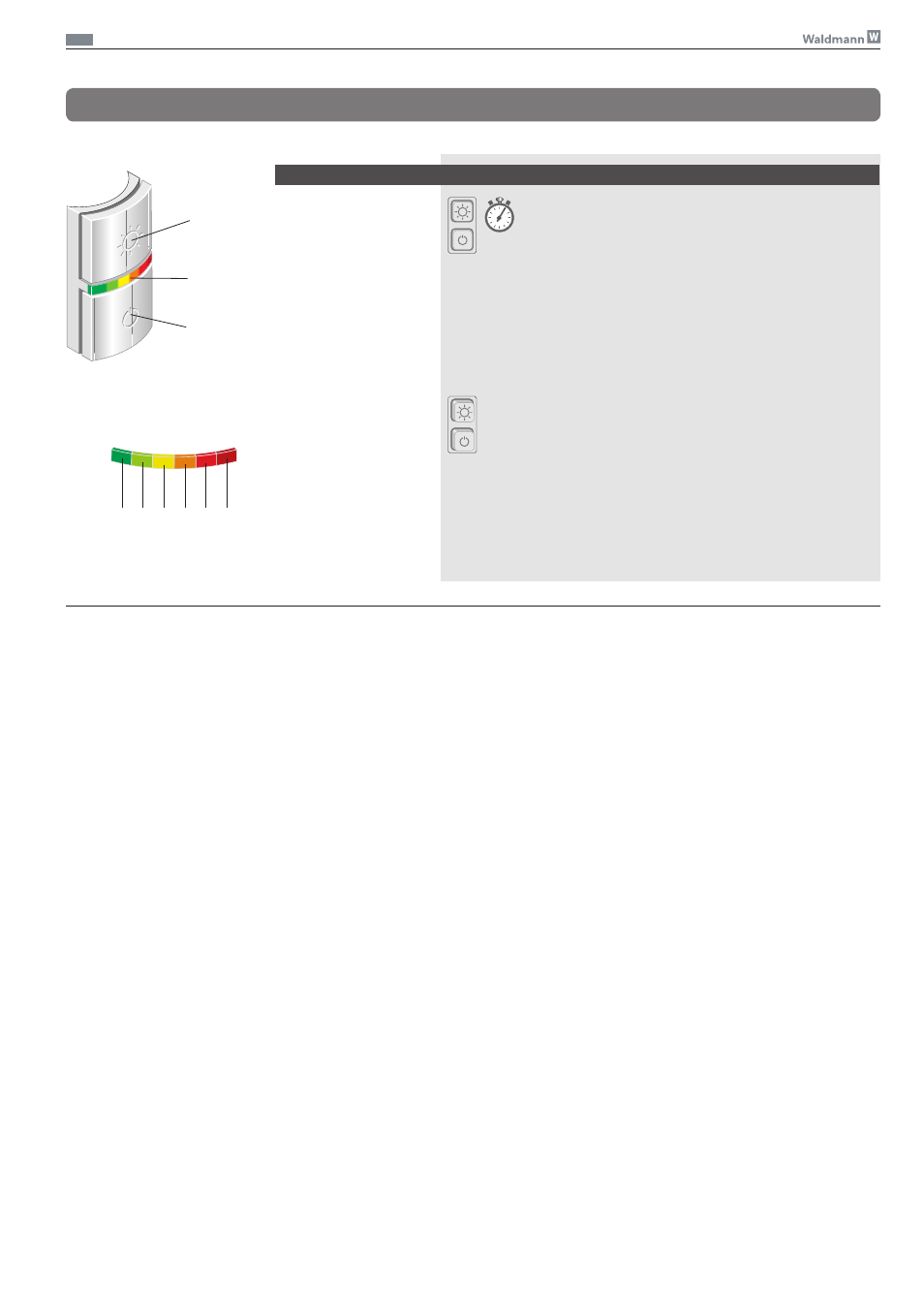

Fig. 3
LED 1 2 3 4 5 6
Fig. 6
Key I
Light
bar
Key II
Level 2 has been reached when
LEDs 1 + 2 are lit on the light
bar.
Level 3 has been reached when
LEDs 1 to 3 are lit on the light
bar.
Level 4 has been reached when
LEDs 1 to 2 are lit on the light
bar.
Changing the setting level
The setting level can be
loaded by pressing both
keys simultaneously for
10 seconds.
Press both keys for 5
seconds each as often as
necessary for reaching the
desired setting level.
n x
Release both keys
Once the desired setting level has
been reached, the setting of the
first function (x.1) is shown on the
light bar as soon as the keys are
released (LED 1 is lit or flashes
dark green).
