Output Sequencing (Cont.)
Channel #1: 5 V Output
Channel #2: 3.3 V Output
Channel #3: 5 V DC OK signal
5V Output
5V DC OK
3.3V Output
5V Output
5V DC OK
3.3V Output

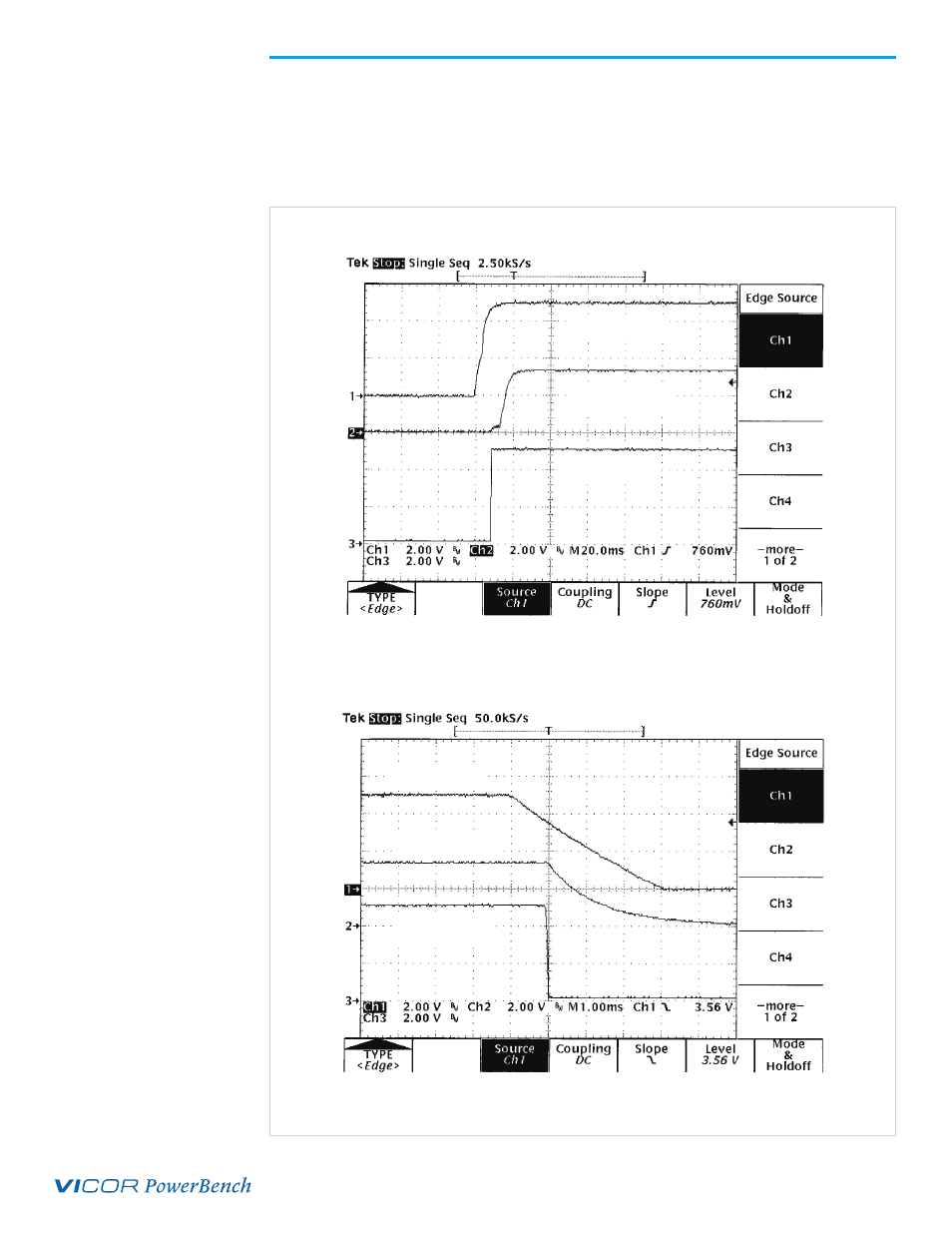

Figure 18. Startup Waveforms
Figure 19. Shutdown Waveforms
Figure 18.
Startup Waveforms
Figure 19.
Shutdown Waveforms
