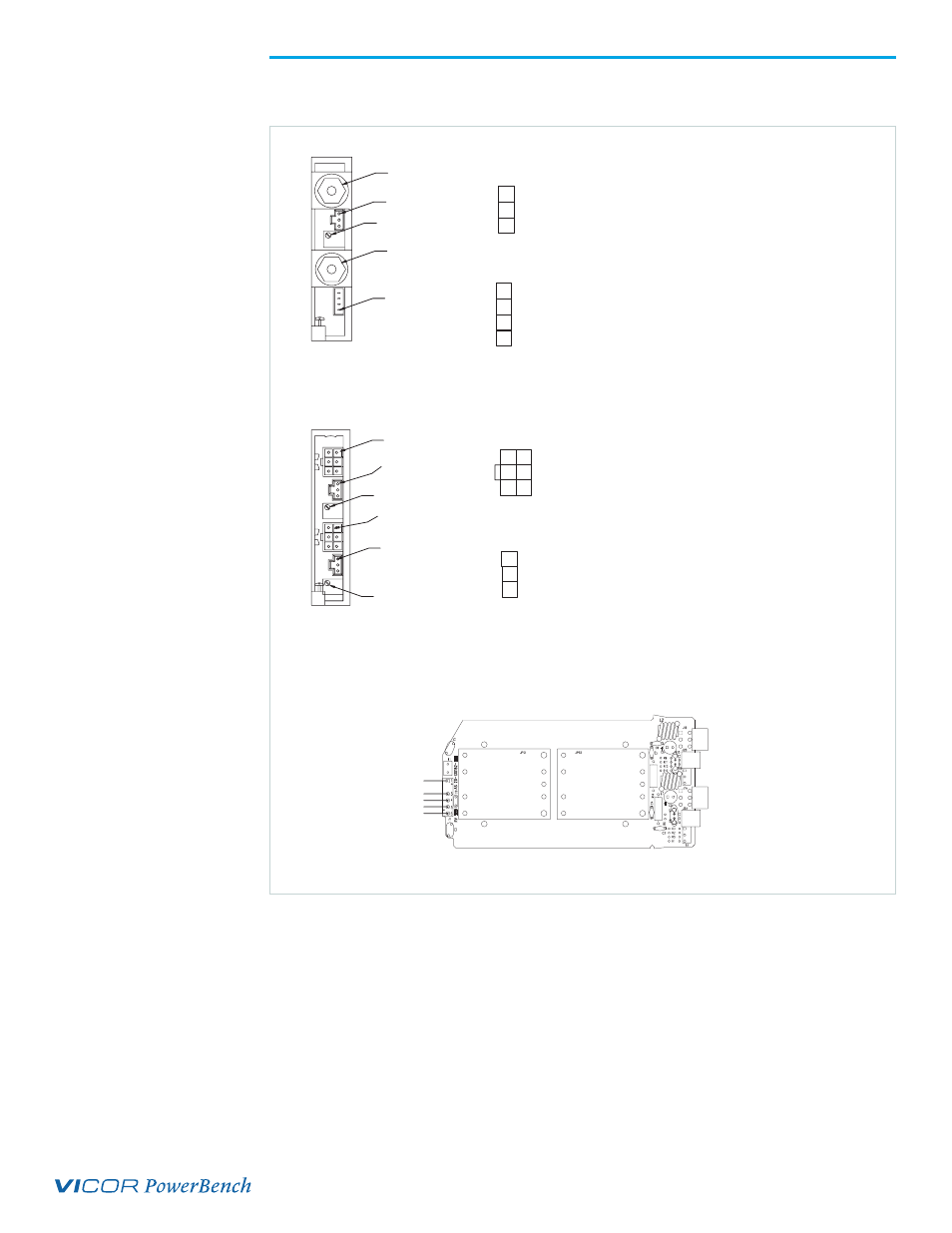

ConverterPAC Output and Connector Pin Identification for the PFC MegaPAC
ModuPAC
JuniorPAC
RAMPAC
J2-PIN1
J3-PIN1
+ V0UT
- VOUT
(REMOTE SENSE) J2
2
1
3 - SENSE
+ SENSE
MATING HDWR:
TRIM PIN ACCESS
3 POWER GOOD
2
1 SIGNAL GROUND
POWER GOOD INVERTED
MATING HDWR:
4
J3 DC OK (POWER GOOD)
Vcc IN
HOUSING- MOLEX P/N: 50-57-9403
TERMINALS- MOLEX P/N: 16-02-0103
CRIMP TOOL MOLEX P/N: 11-01-0208
HOUSING- MOLEX P/N: 39-01-0043
TERMINALS- MOLEX P/N: 30-00-0031
CRIMP TOOL MOLEX P/N: 57005-5000
MODUPAC/JR.PAC/RAMPAC
OUTPUT ADJUST
DualPAC
J2-B-PIN1
OUTPUT ADJ. #1
J2-A-PIN1
J2 (REMOTE SENSE)
MATING HDWR:
HOUSING- MOLEX P/N: 50-57-9403
TERMINALS- MOLEX P/N: 16-02-0103
CRIMP TOOL MOLEX P/N: 11-01-0208 3 - SENSE
+ SENSE
1 TRIM PIN ACCESS
2
OUTPUT ADJ. #2
J1-B-PIN1
J1-A-PIN1
(OUTPUT CONNECTORS)
1 AND 4 +V OUT
3 3 +R/SENSE 6 -R/SENSE
1
2
J1
TERMINALS- MOLEX P/N: 39-00-0039
HOUSING- MOLEX P/N: 39-01-2060
CRIMP TOOL MOLEX P/N: 11-01-0197
MATING HDWR:
6
5
4
2 AND 5 -V OUT
DUALPAC
20-130182-TAB
J1-B (M1)
J1-A (M2)
M2 M1
Output A
48V/2.1A Output B
12V/8.3A
Example: D12V/8.3A-48V/2.1A
DUALPAC - COMPONENT SIDE VIEW
Note:
1. All ConverterPACs except the FinPAC occupy one slot. The FinPAC occupies two slots.
2. New output studs were installed on the ConverterPACs and are 1/8th inch longer. Refer to page 24
for more information.
