UG:105

vicorpower.com

Applications Engineering: 800 927.9474

Page 14

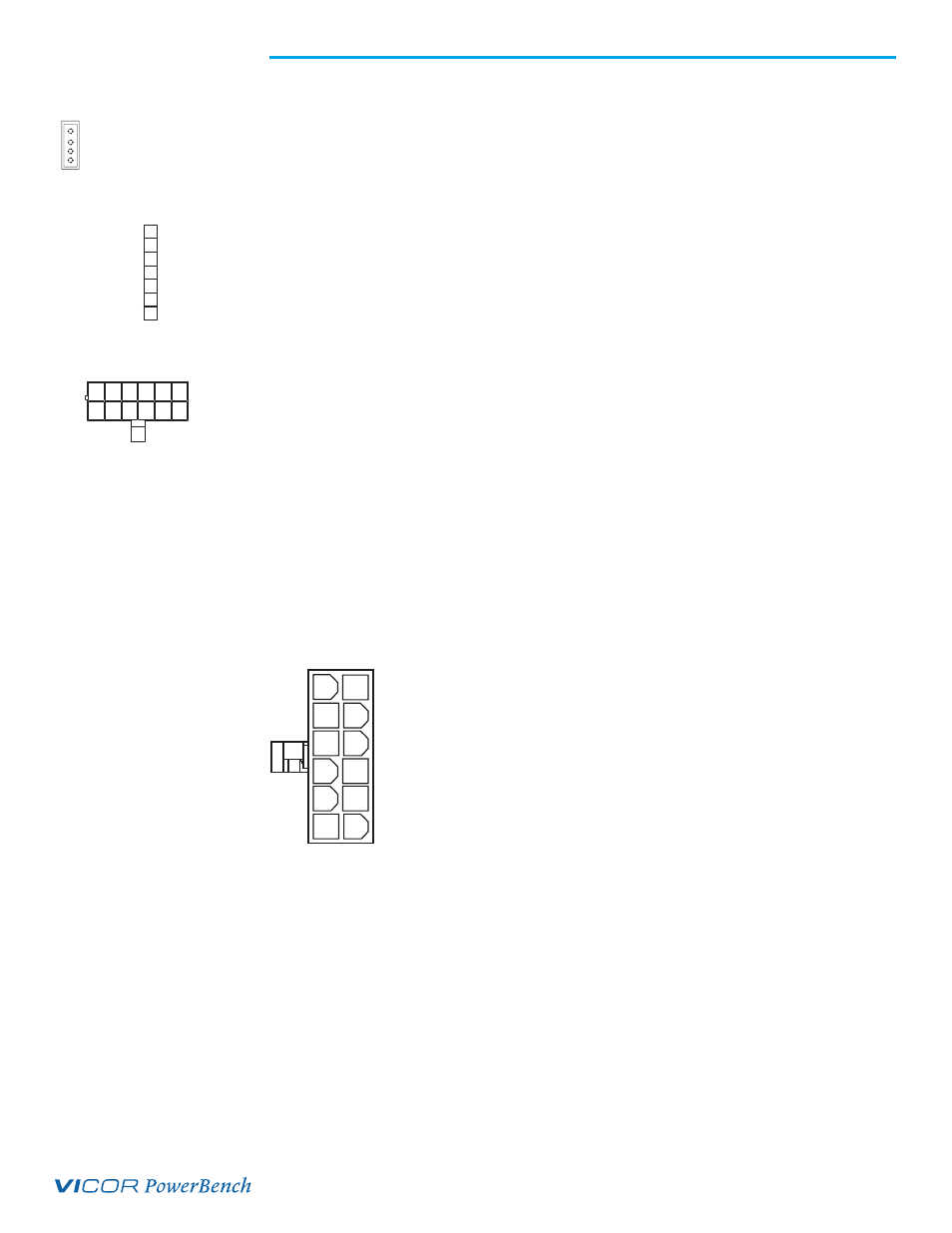

DC OK (Power Good) Connection J3 (and P2 for FinPAC)

n

DC OK is only available as an option and is not always present.

n

J3-4 is Vcc In, J3-3 is Power Good, J3-2 is Power Good inverted, and J3-1

is Signal Ground.

n

Use Molex mating receptacle #39-01-0043 with #39-00-0031

terminals provided.

n

Attach terminals to 22-28 AWG stranded wire using Molex tool #57005-5000.

n

For the FinPAC, refer to the P2 Connector. P2-3 is Power Good.

n

Use Molex mating receptacle #39-01-0073 with #39-00-0031

terminals provided.

n

Attach terminals to 22-28 AWG stranded wire using Molex tool #57005-5000.

Interface Connections J10

n

Use Molex mating receptacle #39-01-2120 with #39-00-0039 terminals provided.

n

J10-1 to 8 are Enable/Disable for slots 1-8.

n

J10-9 is Vcc, J10-10 is Signal Ground, J10-11 is AC Power OK, and J10-12

is General Shutdown.

n

Attach terminals to 18-24 AWG stranded wire using Molex tool #11-01-0197.

FlexPAC Connections J1

n

Use Molex mating receptacle #39-01-2120 with #39-00-0039 terminals provided.

n

Attach terminals to 18-24 AWG stranded wire using Molex tool #11-01-0197.

n

J1 pins 11, 5, 12 and 6 are for special trim options. Contact factory for use.

n

Local Sense only.

4

3

2

1

J3

J3-4 Vcc

J3-3 Power Good

J3-2 Power Good Inverted

J3-1 Signal Ground

Pin

DC OK (Power Good)

P2 DC OK Connector

POWER GOOD INVERTED

TRIM

5

3
2

4

1

SIGNAL GROUND

POWER GOOD

Vcc IN

7
6

+SENSE

-SENSE

12

11

10

9

8

7

6

5

4

3

2

1

J10

J10-9
J10-10
J10-11
J10-12

Vcc +5V, 0.3A
SIGNAL GROUND

AC POWER OK

GEN SHUTDOWN

J10 INTERFACE

J10-1
J10-2
J10-3
J10-4
J10-5
J10-6

J10-7
J10-8

E/D-1
E/D-2
E/D-3
E/D-4
E/D-5
E/D-6

E/D-7
E/D-8

12

4

35

6

7

89

10

11

12

M1

M2

M3

M4

+

+

+

+

n/a

n/a

n/a

n/a

7 –V

OUT

M1

8 –V

OUT

M2

9 –V

OUT

M3

10 –V

OUT

M4

11 DO NOT USE
12 DO NOT USE

1 +V

OUT

M1

2 +V

OUT

M2

3 +V

OUT

M3

4 +V

OUT

M4

5 DO NOT USE
6 DO NOT USE
