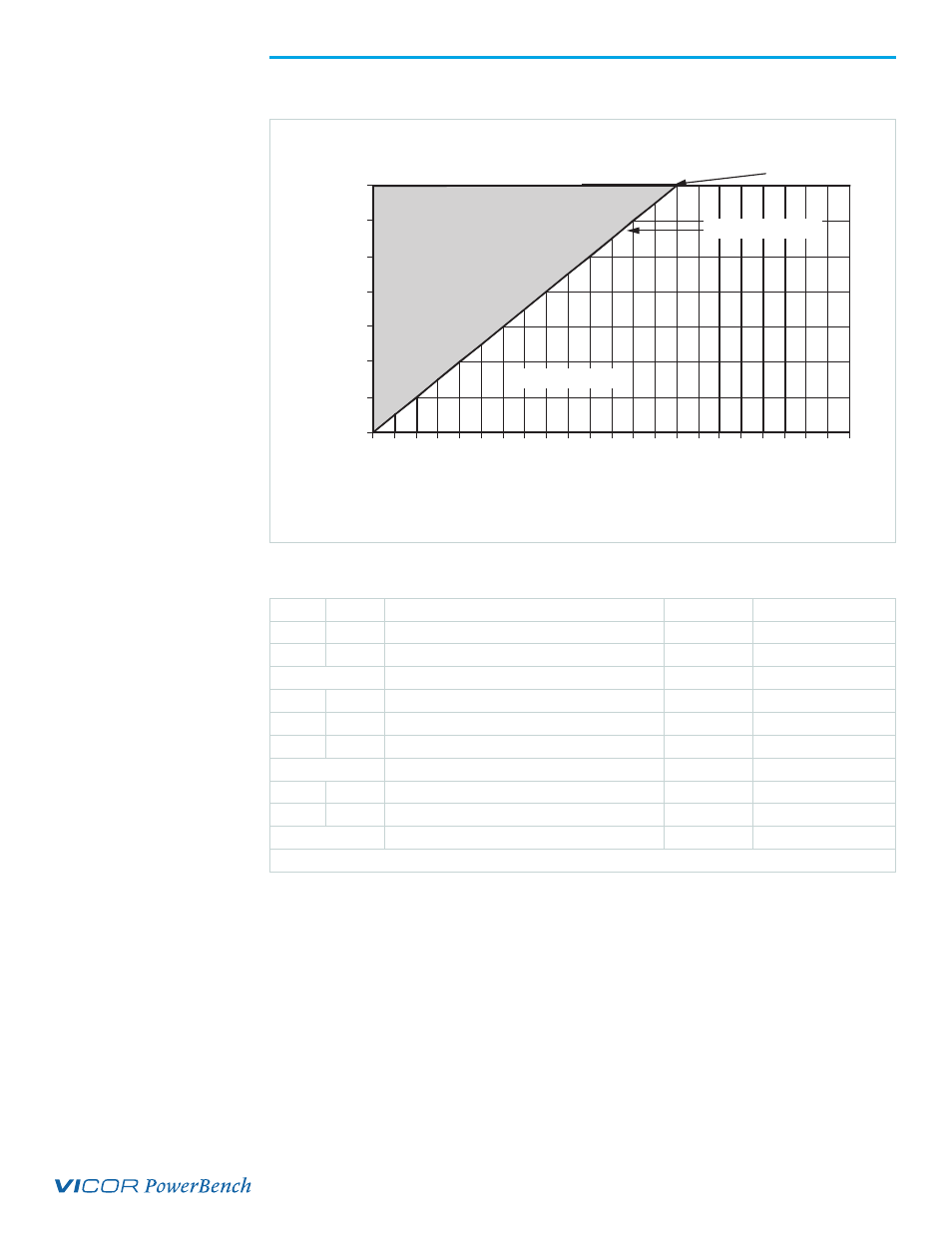

PFC MegaPAC Output Power Derating
Output Power vs Input Voltage (Vac) (47-500 HZ)
1000
1200
1400
1600
1800
2000
2200
2400
85 95 105 125 145 165 185 200 215 235 255 265
Input Voltage (Vac or Vdc)
Ou
tput
Po
wer
(Watts
)
Power Exceeded
Safe Operating Area
2,400W @ 200 Vac
Derate at 12W/volt
(For VDC, 100V min applies)
PFC MegaPAC Connector Kit (19-130040) Listing
Item Qty Description Vendor #1 Part #
1 1 HOUSING 12 POS.165 CTR W/LATCH MOLEX 39-01-2120
2 12 TERMINAL FEM CRIMP 18 - 24 AWG TIN MOLEX 39-00-0039
** CRIMP TOOL FOR ITEM 2 MOLEX 11-01-0197
3 8 HOUSING 7 POS.098 CTR L/PROFILE MOLEX 39-01-0073
4 8 HOUSING 4 POS.098 CTR L/PROFILE MOLEX 39-01-0043
5 94 TERMINAL FEM CRIMP 22 - 18 AWG PH/BRNZ MOLEX 39-01-0031
** CRIMP TOOL FOR ITEMS 3 & 4 MOLEX 00-01-0197
6 8 HOUSING 3 POS.1 CTRS W/LATCH MOLEX 50-57-9403
7 27 TERMINAL FEM CRIMP 22 - 24 AWG SEL/GLD MOLEX 16-02-0103
** CRIMP TOOL FOR ITEM 7 MOLEX 11-01-0118
** ITEMS FOR REFERENCE ONLY (NOT INCLUDED IN KIT)
