Dentil shelf attachment (classic-craft) – Therma-Tru SHOP 3 Door Preparation - Book Size User Manual
Page 58
Door
Preparation
3.58
2014 (BOOK SIZE)
Shop 3

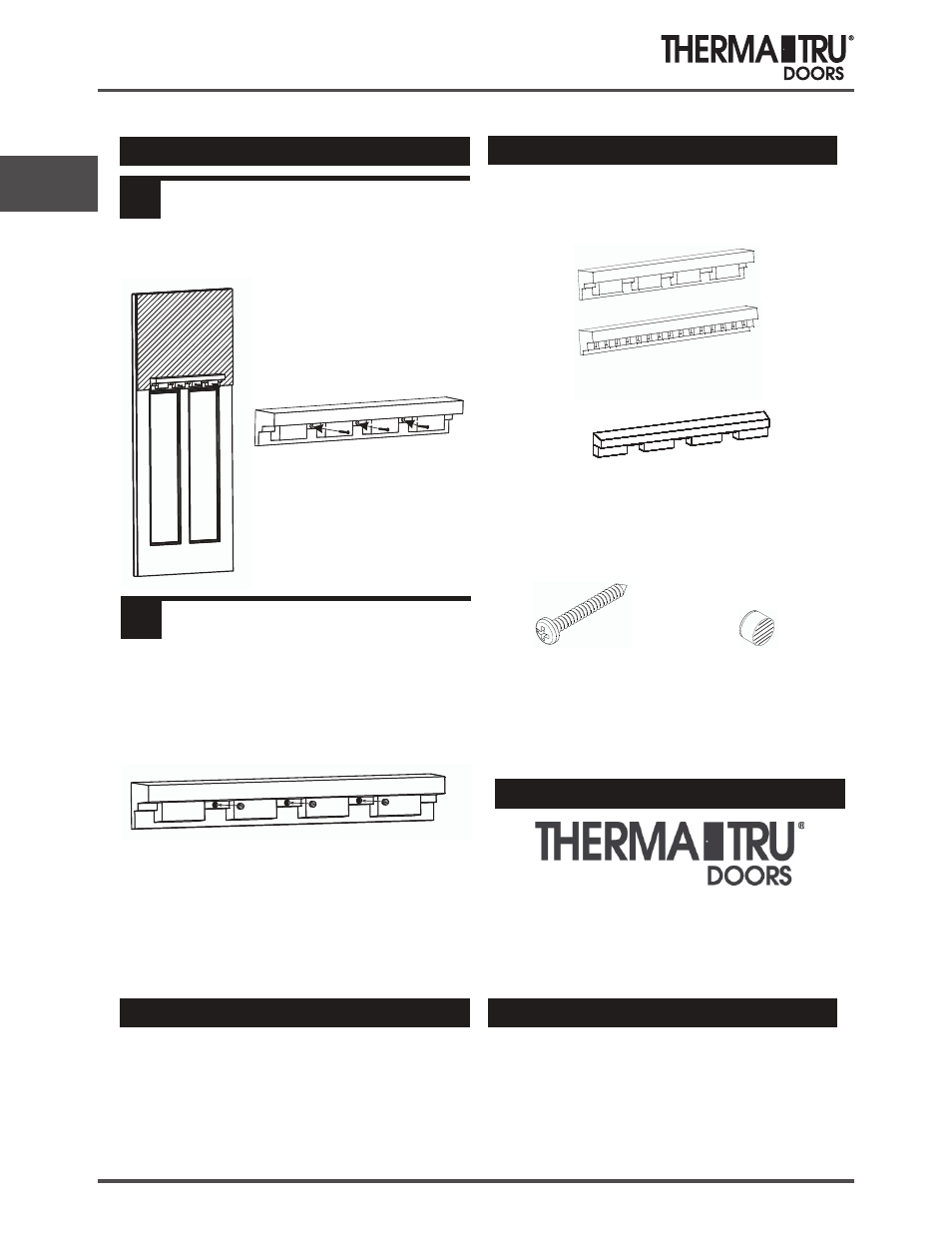

Dentil Shelf Attachment
(Classic-Craft)
4
3
FASTEN SHELF TO DOOR
INSERT PLUGS
Align grain and insert plugs into holes.
Press until plug is flush with shelf surface.
Fasten three screws into door at screw boss
locations until shelf becomes tight with door.
DO NOT OVER TIGHTEN.
DISCLAIMER: SHELF IS NOT
INTENDED TO HOLD ANY OBJECTS
OR WEIGHT.
P.O. Box 8780
Maumee, Ohio 43537
419-891-7400
Therma-Tru is a registered trademark of Therma-Tru Corp.
© 2011 Therma-Tru Corp.
(3) #10 x 1-1/2”
Phillips Pan Head
Shelf Installation Components
Shelf Screw
OR
CCADS04 OR CCADS16
Dentil Shelf
Shelf Plug
(3) Plugs
CCAPLUG
CCVDS04
Dentil Shelf
