Grille installation – Therma-Tru SHOP 3 Door Preparation - Book Size User Manual
Page 47
Door
Preparation
Shop 3
2014 (BOOK SIZE)
3.47

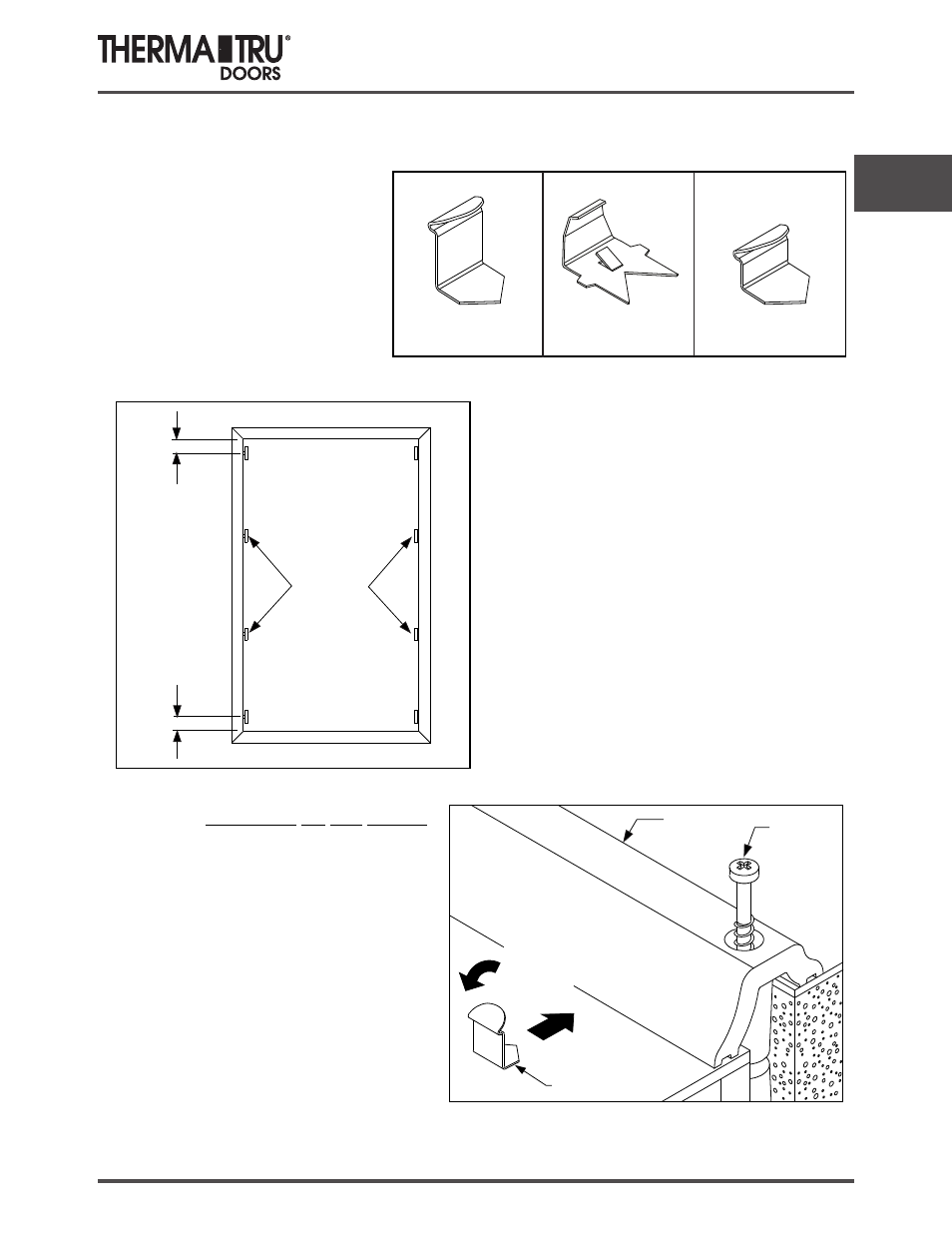

Grille Installation
Grilles come complete with clips.
SPRING STEEL CLIPS
Installation for Lite Frames
Install Clips
Loosen doorlite screws slightly.
Slide flat side of clips under
interior side of doorlite frame.
Retighten screws.
Position Clips
Locate clips on vertical sides of frames
4” maximum from each corner and at
center grille bar locations.
Center
Grille Bar
Locations
4” maximum
from corner
4” maximum
from corner
Part # RPWGMC2
Part # RPFGGC
Bend slightly to
tighten fit with
grille if necessary.
Grille Clip
Interior Lite
Frame
Doorlite
Screw
Part # RPCGC
BTS
FLUSH GLAZED
CC
NOTE: Wood Grilles are for internal use only.
