Shop 3 2014 (BOOK SIZE) 3.33

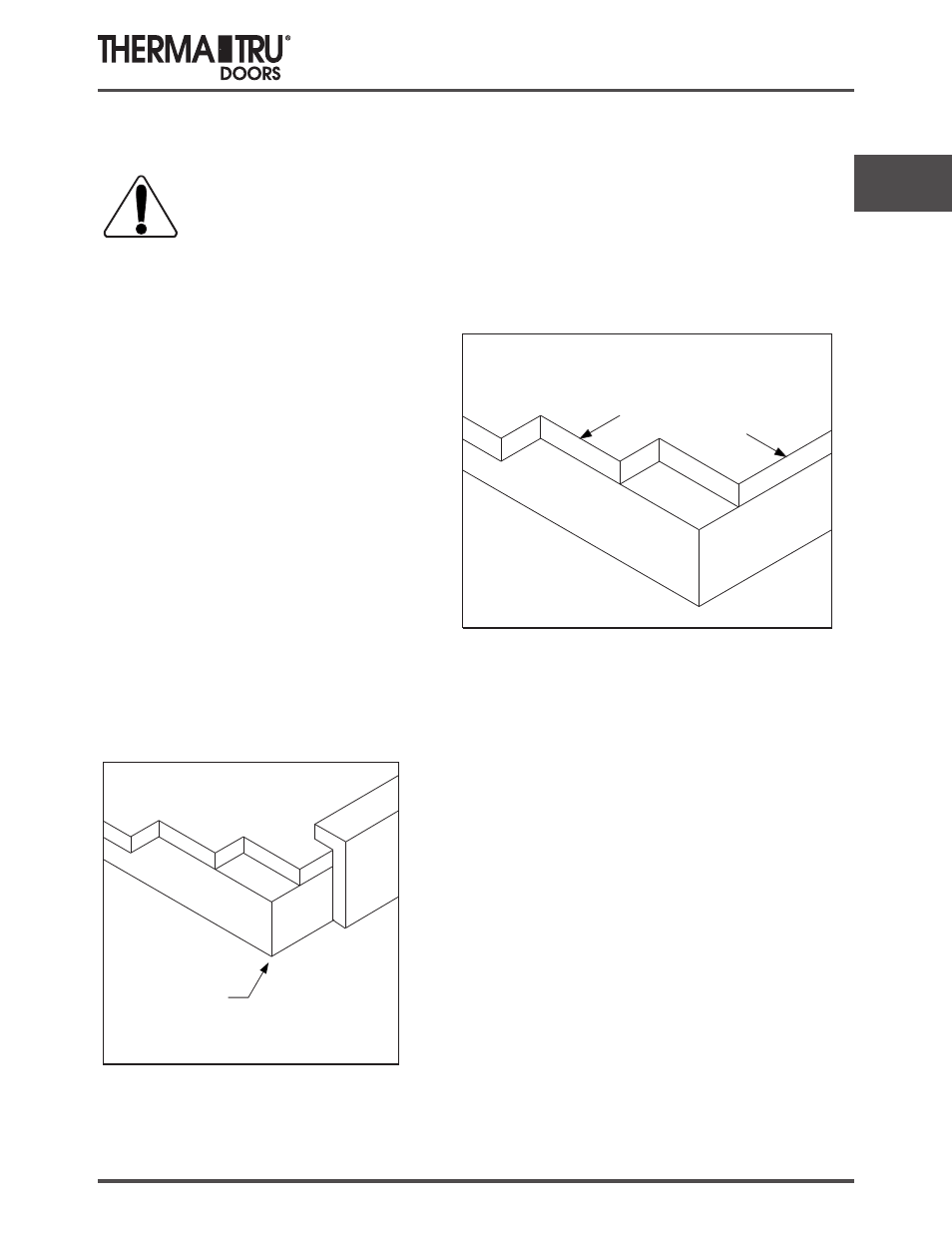

Doorlite and Panel Preparation
Align with top
of door slab
Align with edge
of hinge stile
Door Slab
Template
Align Template
Place template on door slab.
Align template with top and edges of door
using corners or notches in template.
Clamp Template to Door
Clamp mechanism and door support table
shown here are typical for Ruvo/Triad
door cutout machines.
CAUTION:
If door was resized, template use may be affected. Template location is referenced from the
top of the door and embossed pattern adjustments may be necessary. Template may need to
be centered from side-to-side.
Select the correct template to match the door style. Refer to SHOP 17.
Use a wood pad
to prevent damaging
door.
