Door
Preparation
Shop 3 2014 (BOOK SIZE) 3.57
Dentil Shelf Attachment
(Classic-Craft)
1
Read all instructions before starting.
Shop
Installation
Instructions
for
Dentil Shelf
Attachment
The following instructions should be
completed in the door shop or at the job site.
Check to see that the shelf shop
pack is included with this unit.
The pack contains all the necessary
hardware and fasteners needed
to complete this installation.

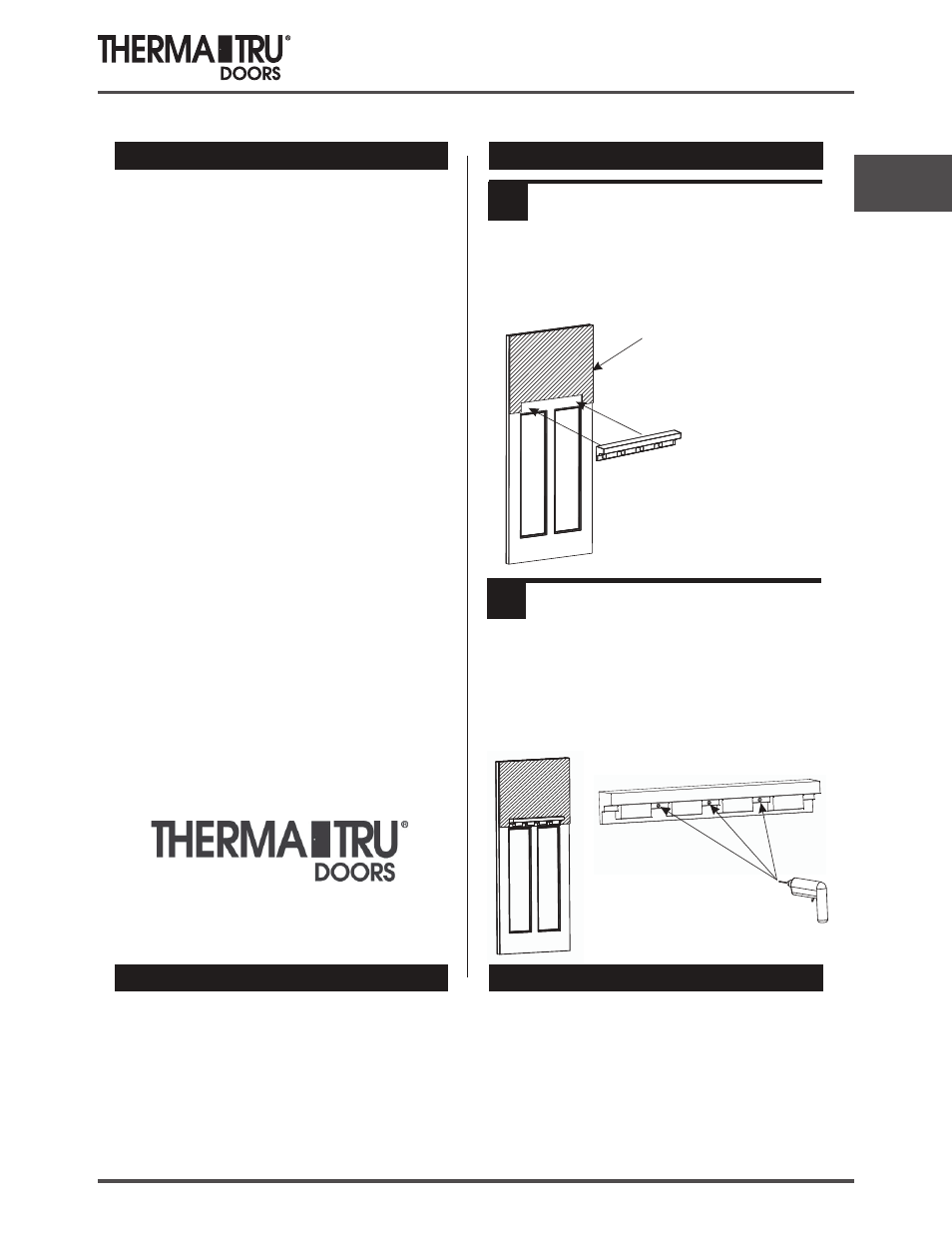

APPLY LOCATING TEMPLATE TO DOOR
Apply shelf locating template to door slab.
Align all three sides of the template to ensure
it is squared up with the door.
Hold template down with clamps if needed.
2
DRILL PILOT HOLES
Template Part Number:
TPA30200-P (American Style)
Part Number: MACCASHELFINST REV. C
After getting shelf aligned with the template,
drill pilot holes with 1/8” drill bit at all three
attachment locations into wood block on
inside of the door.
Holes to be approximately ¼” to ½” in depth.
CAUTION:
DO NOT DRILL THROUGH ENTIRE DOOR.
Template Part Number:
TPCCVDS-P (Canvas)
