Doorlite and designline panel installation – Therma-Tru SHOP 3 Door Preparation - Book Size User Manual
Page 37
Door
Preparation
Shop 3
2014 (BOOK SIZE)
3.37
Doorlite and Designline
Panel Installation

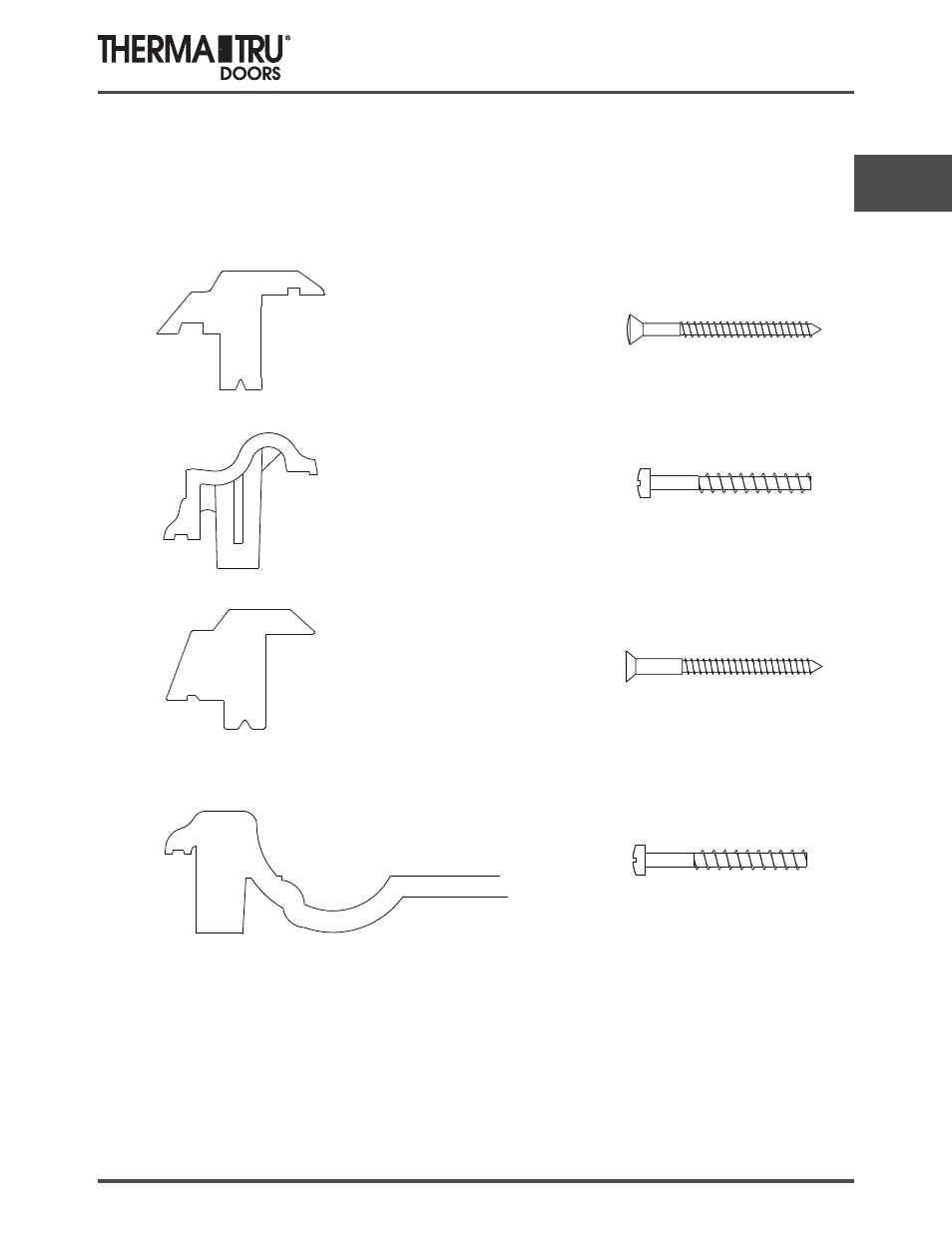

Select the Right Screw
Use the correct screw with the appropriate lite frame. (Fasteners are shown actual size.)
For this lite
Use this fastener
Smooth-Star and
Steel Doorlites
without Screw Bosses
Fiber-Classic Doorlite
without Screw Bosses
Part # RPSCLDL
White Painted Head
Part # RPSCFCLDL
Brass Finish
Entire Screw
Part # SCDL000
Fiber-Classic, Smooth-Star
and Steel Doorlites
Fiber-Classic Designline Panel
For this panel
Use this fastener
Part # SCDL000
