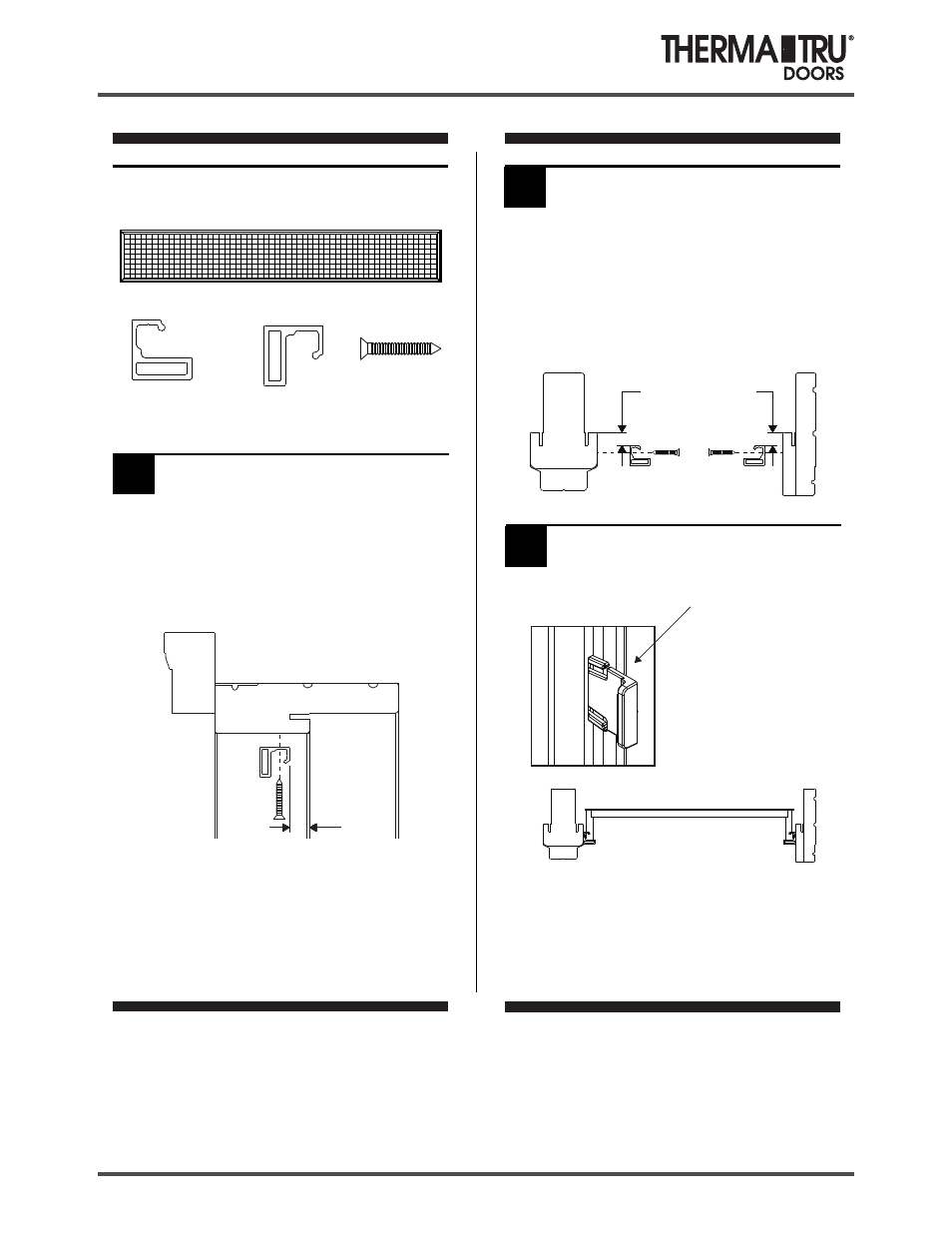

Screen Installation
Venting Sidelite Screen
Materials Supplied
Screen
Side Screen tracks (2) Top Screen Track
#6 x 3/4”
PFH Screws
1 Install Top Screen Track
Remove weatherstrip prior to installation.
From the interior, position top screen track 1/2” back
from the head jamb stop, making sure to center between
the side jamb and the mullion.
Using a 3/32” drill bit, drill two holes approximately
3/4” deep into the head jamb using the pre-punched holes
in the top screen track as a guide.
Fasten top screen track to head jamb using
two #6 x 3/4” screws.
.500
Assemble the left and right screen tracks following the
same steps as installing the head screen track,
positioning as shown below.
Make sure to position flush with the top screen track,
and that both sides are completely straight.
Interior
Top View
.500 .500
2 Install Side Screen Tracks
3 Install Screen
Note: Make sure that all thumb clips are pulled in before
installing the screen.
Interior
Top View
Starting at the bottom, insert the screen then roll in towards
the top. Gently yet firmly press screen into place.
Push the thumb clips back in until they snap back into
the screen track.
Re-insert weatherstrip.
