Multi-Point Shootbolt
Coastal Astragal 2 Installation Instructions
5

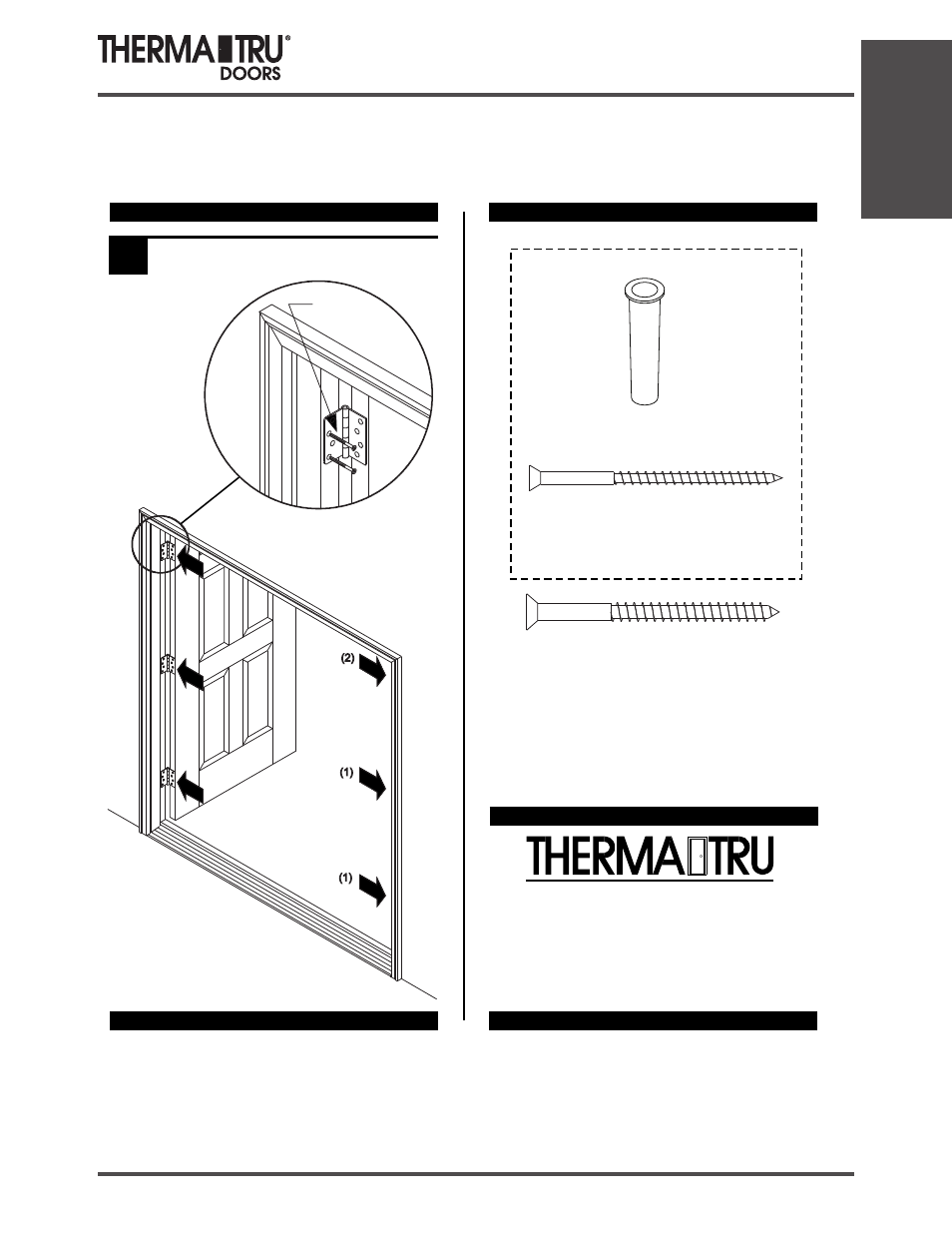

INSTALL LONG HINGE SCREWS.
With door open,
at hinges where
labels indicate,
drill 1/8” dia.
pilot holes
and drive
#10 x 2-1/2”
screws through
hinges to anchor
door frame and
prevent sagging.
#10 x 2-1/2”
screws
(2)
(1)
(1)
8/0 doors will follow
(2 at top, 1, 1, 1) hinge screw
installation configuration.
The Most Preferred in the Business
1750 Indian Wood Circle
Maumee, Ohio 43537
419-891-7400
Therma-Tru is a registered trademark of Therma-Tru Corp.
© 2006 Therma-Tru Corp.
Coastal Astragal 2 Site Pack Contents
(4) #8 x 2-1/2”
Phillips Flat Head
Keeper Plate Screws
(10) #10 x 2-1/2”
Phillips Flat Head
Hinge Screws - Jamb Leaf
®
Deep Sill Plug
Strike Plates and Strike Plate Fasteners do not
come with the astragals. They are purchased
separately. Contact your Therma-Tru Customer
Relations Representative for the correct strike
plate package.
