Installation

1.62

2014

SITE 1

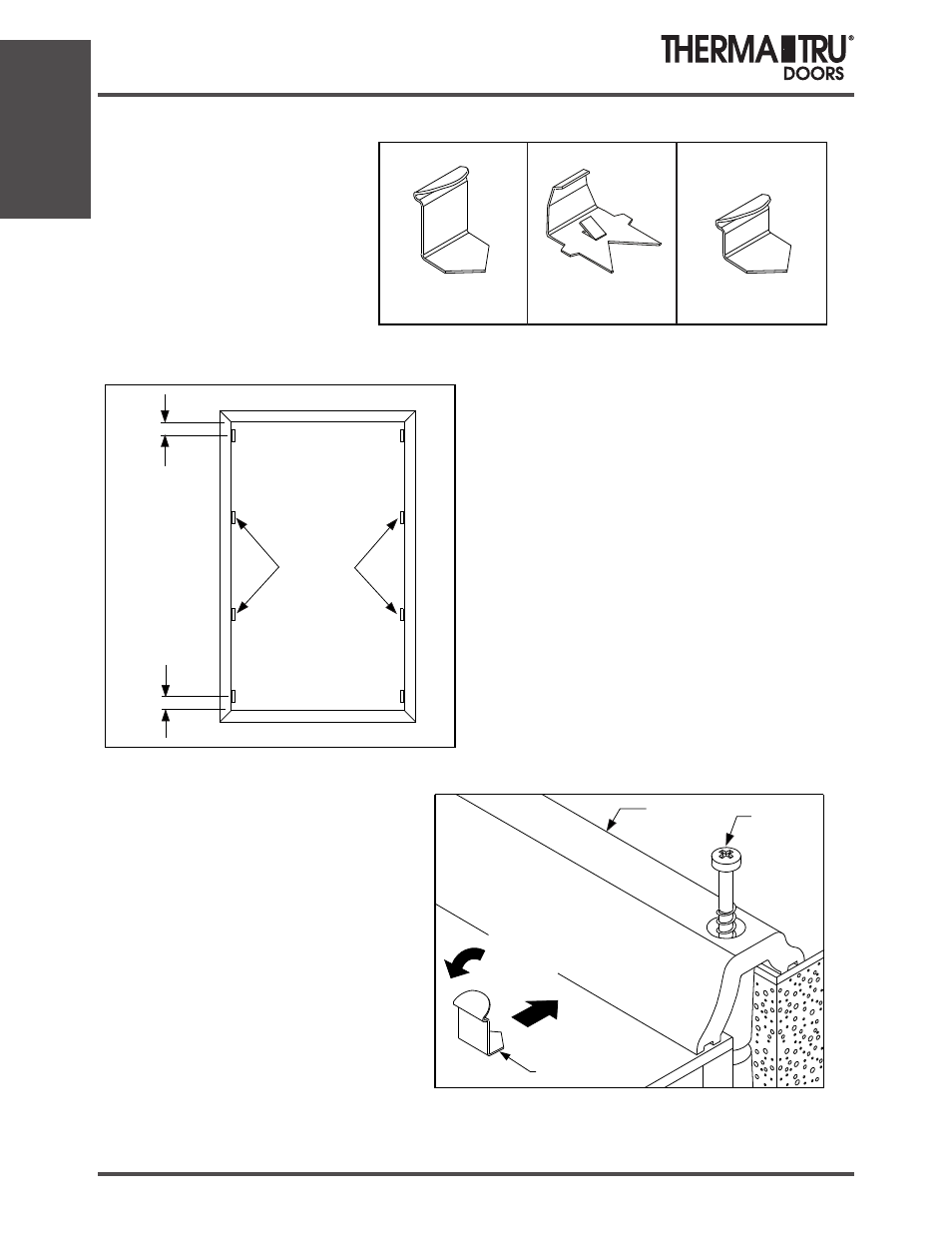

Grille Installation Instructions

Grilles come complete with clips.

SPRING STEEL CLIPS

Installation for Lite Frames

Install Clips

Loosen doorlite screws slightly.

Slide flat side of clips under

interior side of doorlite frame.

Retighten screws.

FRAMED LITES

Position Clips

Locate clips on vertical sides of frames

4” maximum from each corner and at

center grille bar locations.

Center

Grille Bar

Locations

4” maximum

from corner

4” maximum

from corner

Part # RPWGMC2

Part # RPFGGC

Bend slightly to

tighten fit with

grille if necessary.

Grille Clip

Interior Lite

Frame

Doorlite

Screw

Part # RPCGC

FRAMED

FLUSH GLAZED
