8 3 / 4 "
(222mm)
14 3 / 8 " (365mm)
Fan Grille
(Not Supplied)
Fan Bezel
Fan Housing
Strain Relief
Ground
Cover Plate
Fan Housing

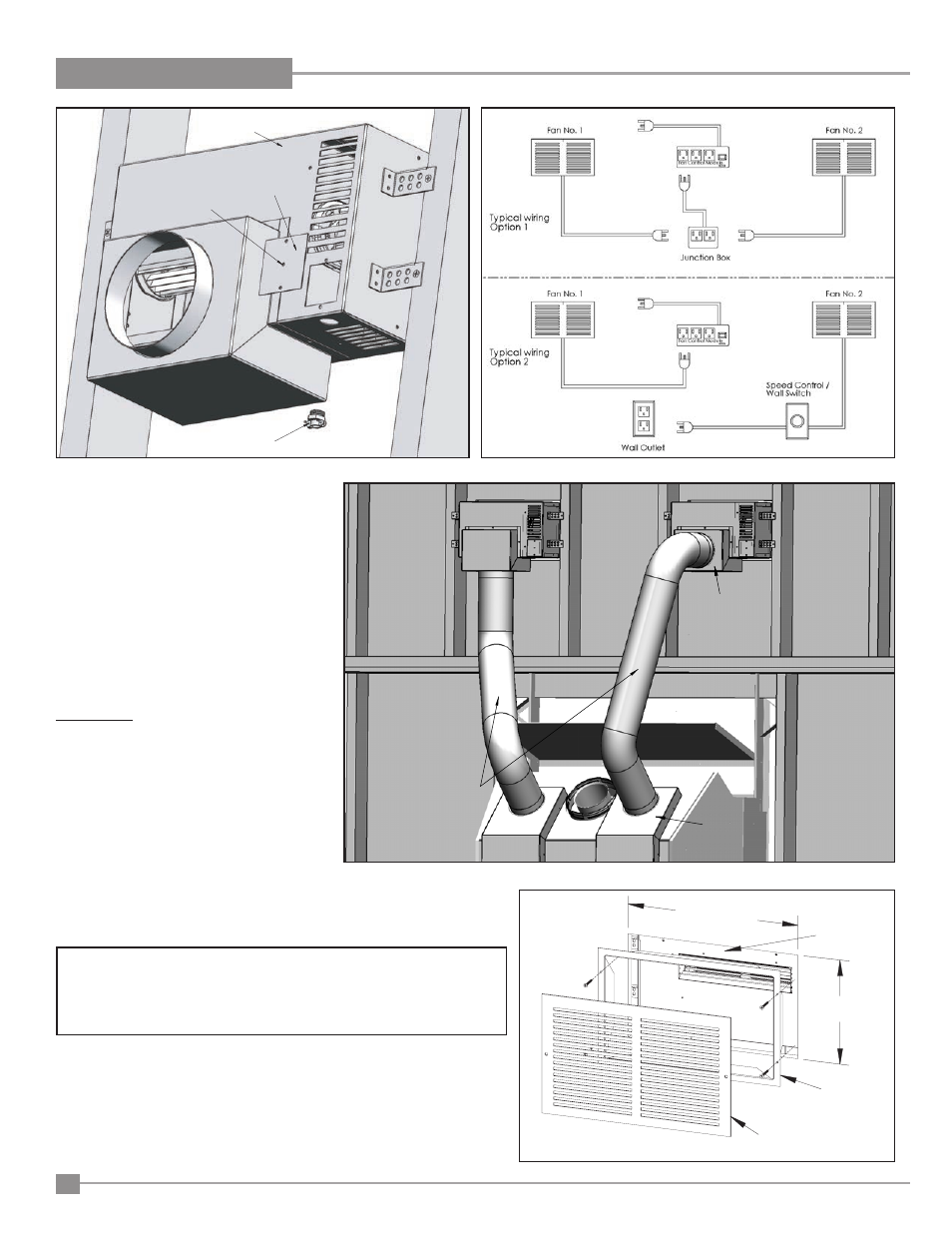

Figure 8: Wiring fan.
e) Secure the cover plate to the back of the fan hous-
ing with screws
f) Secure the service wires to the strain relief
f) For wiring options see Figure 9.
8. Attach the 5” Aluminum Flex Vent to the Fireplace
Vent Duct Collar with sheet metal screws or a vent
strap and run the vent to the Fan Housing Vent Duct
Collar. The Fan Housing Vent Duct can be installed
through the rear or the bottom of the Fan Housing
as shown in Figure 10.
IMPORTANT: Maintain a minimum of 2” (51mm)
clearance between the flex lines and combustible
materials.
Optional Note: An 8ft (2.4m) 5” Aluminum Flex Vent is
provided. Extra length of 5” Aluminum Flex Vent can
be added using a coupling provided by the installer
9. Attach the fan bezel to the fan cut out and secure
the fan bezel to the wall board with screws.
10. Cover the cut out with a fan grille.
When installed, the Power Vent Kit, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1.
Fan Housing
Vent Duct Collar
Fireplace Vent
Duct Collar
5" Aluminum
Flex Vent
Figure 9: Fan wiring options.
Figure 11: Install fan bezel & grille.
Figure 10: Optional install with two (2) heat distribution kits.
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three-prong (grounding) plug for your pro-
tection against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the grounding prong
from this plug.
Periodic examination of venting systems should be done by a qualified agency.
28
Regency L965E / HZ965E Gas Fireplace
INSTALLATION
