Steriflow Mark 93JR Series - Manual (Page 2)

MK93JR S
anitaRy
S
teaM
t
RapS
S
pecificationS
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25)
End Connections
•
Standard – Sanitary clamp ends (Tri-Clover TM )
• Optional – Tube weld ends, DIN/ISO, threaded
Material
•
Body Inlet/Outlet: 316L Stainless Steel
• Thermal Element: 316L Stainless Steel
• Gasket (Standard): Teflon / Viton Gasket, FDA USP
Class VI; Optional: Tuff Steel or SliverBack
• Clamp: 304 SST
Maximum Operating Conditions
•
Maximum Operating Pressure (PMO): 100 psig (6,9 bar)
• Maximum Allowable Temperature (TMA): 350°F (177°C)
Design Pressure/Temperature Rating:
•
Maximum Allowable Pressure (PMA): 145 psig (10,0
bar)
Psi Bar Lbs/Hr Kgs/Hr
10 0,7 1850 839
20 1,3 1934 877
30 2,0 2369 1075
40 2,7 2736 1241
50 3,4 3058 1387
60 4,1 3350 1520
70 4,8 5410 2454
80 5,5 5722 2595
90 6,2 6017 2729
100 6,9 6298 2857
• Maximum Allowable Temperature (TMA): 350°F
(177°C)
Maximum Recommended Differential Pressure: 10 - 100
psig (0,7 -6,9 bar)
Cold water Cv: 1.31

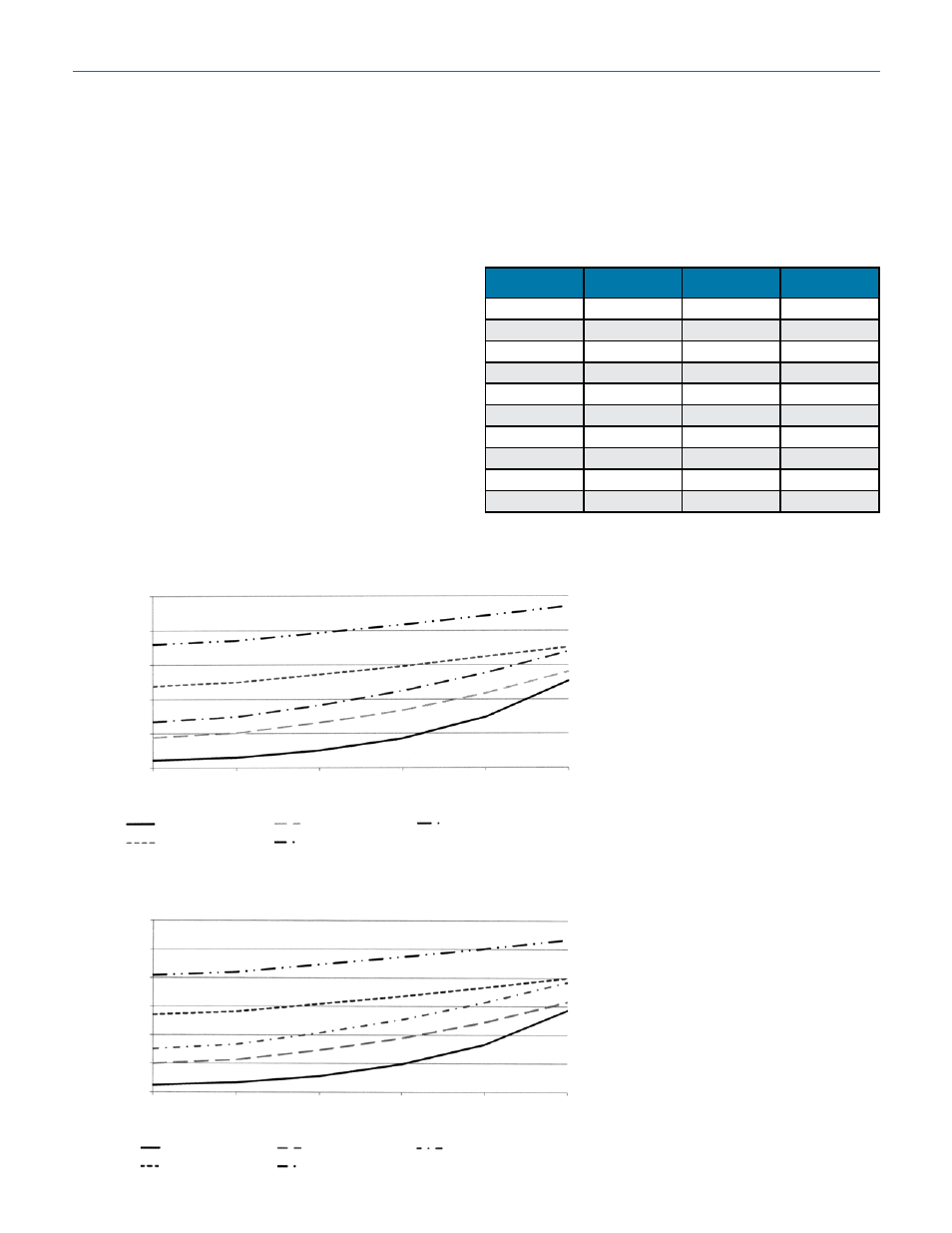

Cold Water Capacity
f
low
c
apacitieS
(
lbS
/
hr
)
2500
2000
1500
1000
500
0
10 20 40 60 80 100
Steam Pressure (psig)
Lbs/Hr (3° Subcooling)
Lbs/Hr (15° Subcooling)
Lbs/Hr (5° Subcooling)
Lbs/Hr (20° Subcooling) Lbs/Hr (10° Subcooling)
Flow (lbs/hr)
f
low
c
apacitieS
(
kg
/
hr
)
1200
1000
800
600
400
200
0
0,7 1,4 2,8 4,1 6,7 5,5
Kgs/Hr (3° Subcooling)
Kg/Hr (15° Subcooling)
Kgs/Hr (5° Subcooling)
Kgs/Hr (20° Subcooling) Kgs/Hr (10° Subcooling)
-2-
