12. Remove (2) 6 mm bolts holding left and right heat shields to transmission cross member.
13. Support transmission and transfer case with jack stands.
14. Remove (2) 12 mm nuts from transmission mount.
15. Remove (4) 12 mm bolts and nuts from cross member and remove cross member.
16. Remove (1) 10 mm bolt from left Y pipe hanger.
17. Loosen clamp on left head pipe.
18. Unplug all O2 sensors.
19. Remove (2) 10mm nuts from left and (2) 10 mm nuts from right head pipes and remove
head pipes.
20. Re-install cross member and mount and tighten.
21. If you are not planning to save the old exhaust, you can simply cut hangers from Y-pipe
to simplify removal of manifold pipes.
FOR CONNECTION TO ANY EXHAUST SYSTEM
22. Remove heat shield around front axle (1) 10mm nut (1) 8 mm nut.
23. Remove remaining (2) 6mm bolts from right heat shield and slide heat shield back toward
the rear of the vehicle.
24. Remove starter and wires (1) 6 mm nut (2) 8 mm nuts and (3) 8 mm bolts.
25. Mark steering shaft for later reinstallation to same markings, and remove (1) 10 mm bolt
from upper U-joint and move out of the way.

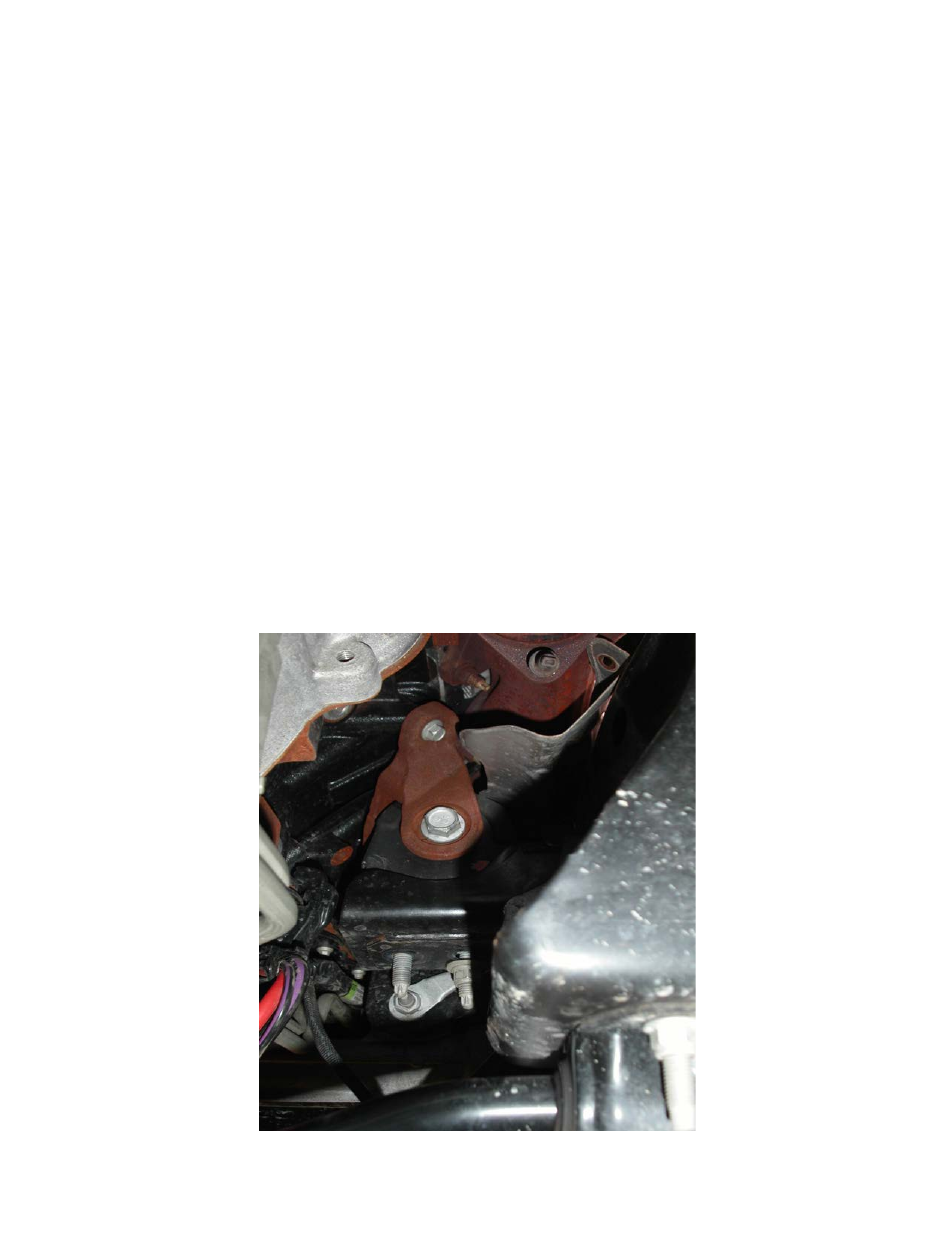

26. Remove (2) 14 mm nuts from right motor mount. See picture below showing one nut
removed and one loose.
--ONE OF THREE BOLTS
(REF INSTRUCTION #27)
--TWO BOTTOM NUTS
(REF INSTRUCTION #26)
