26. Install the new Skyjacker front brake line extension brackets using
the OEM hardware & the supplied 5/16" x 3/4" bolts & nuts. (See
Photo # 30)
27. To install the tie rod end to the new Skyjacker steering knuckle the tie
rods will need to be swapped from driver to passenger & passenger
to driver side. Attach the outer tie rod to the new Skyjacker steering
knuckles using the OEM hardware. Reinstall the brake rotors, brake
calipers, & etc.
28. Reinstall the sway bar using the new Skyjacker drop brackets. The
new sway bar brackets will install between the sway bar & the OEM
mount on the frame using the OEM hardware. The sway bar will be
attached to the new brackets using the supplied 7/16" x1 1/2” bolts,
washers, & nuts. Note: The brackets should offset the sway bar
towards the front of the vehicle. (See Photo # 31)
29. Install the new Skyjacker sway bar end links. Be sure to install the
end link with the pivoting end at the sway bar. Note: The sway bar
end links are side specific. (See Photo # 32)
30. Install the front tires / wheels & lower the front of the vehicle to the
ground.
Rear Installation:
1. With the vehicle on flat level ground, block the front tires / wheels.
Raise the rear of the vehicle & properly support using jack stands.
Remove the rear tires / wheels.
2. Disconnect the E-brake cables, ABS line, & rear brake lines from the
differential.
3. Support the rear differential & remove the rear shocks & u-bolts.
4. Rear Block Installation:
Install the new Skyjacker rear blocks & new Skyjacker u-bolts.
Note: Install the new rear blocks with the female hole of the new rear
block offset towards the front of the vehicle. (See Photo # 33)
5. Rear Spring Installation:
Install the new Skyjacker rear leaf springs using the OEM hardware.

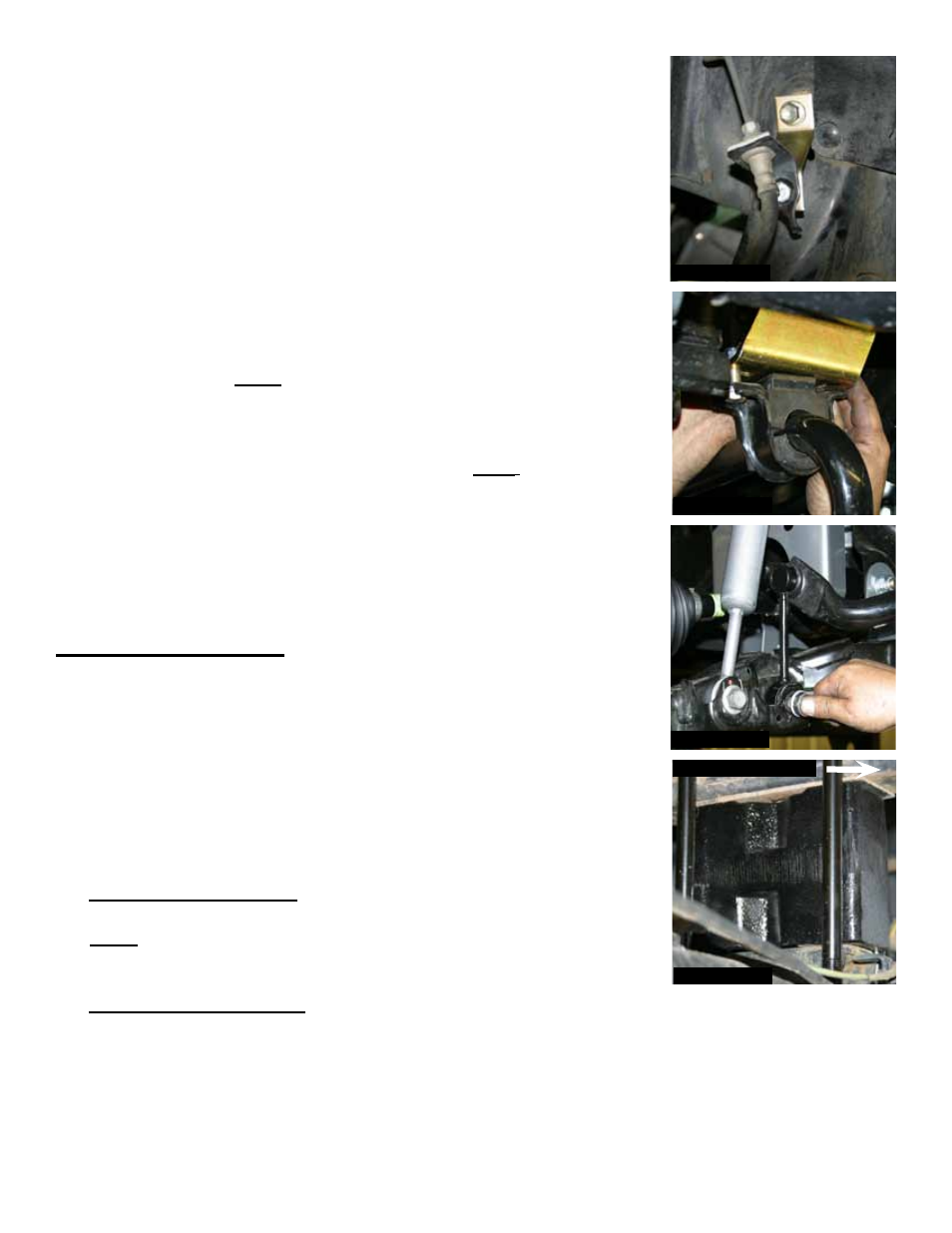

Photo # 31
Photo # 32
Photo # 33
Front of Vehicle
Photo # 30
