1984 - 1985 Toyota 4WD

Rear Dual Shock Kit

Installation Instructions

Part # DS530

Installation:

1. Park the vehicle on flat level ground, set the emergency brake, & block the front tires / wheels.

2. Raise the rear of the vehicle & place jack stands under the rear frame rails. Remove the rear tires

/ wheels & shocks.

3. Drill a 5/8” hole in the frame rail 3” from the OEM upper shock mount. (3” forward on the drive

side & 3” rearward on the passenger side. Be sure to drill parallel to the OEM mount.

4. Install the 5/8” x 5 1/2” bolt through the hole toward the center of the vehicle. Place the spacer

then a washer onto the bolt.

5. Remove the OEM u-bolt plate located below the rear axle. Install the new lower mount / spring

plate with the shock studs facing toward the center of the vehicle. Torque the u-bolts to 90 Ft.

Lbs. & install both shocks.

6. Repeat the above steps on the opposite side.

7. Once all shocks are installed, check all components for proper clearance. Retorque all hardware

after the first 100 miles & periodically there after.

Seat Belts Save Lives, Please Wear Your Seat Belt.

I-DS530 REV1 3-11

Pg 1

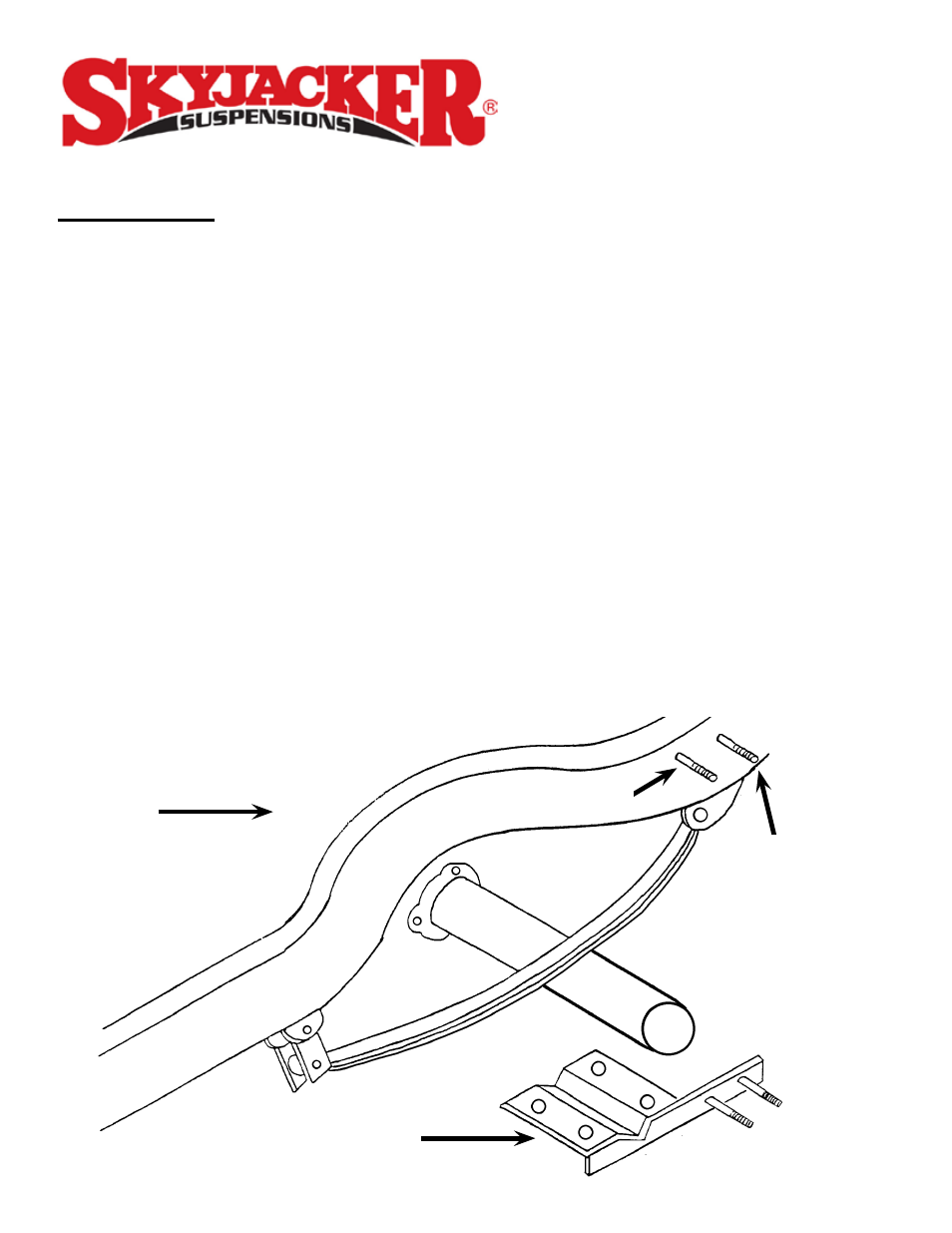

New Shock Stud

Factory Shock Stud

New Spring plate with

lower shock studs.

Driver Side

Forward
