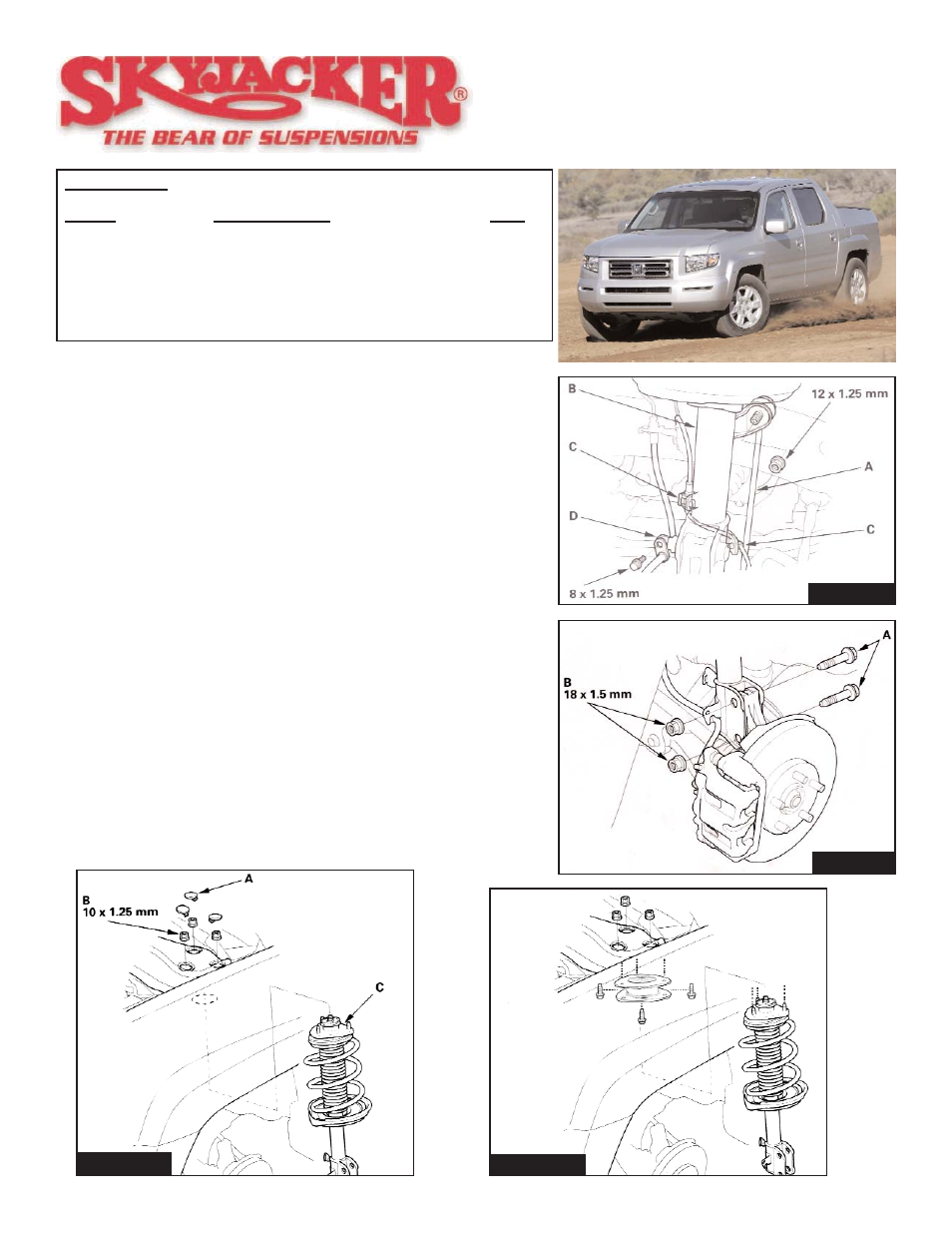

Skyjacker RRCS2-S - Manual

2006 Honda Ridgeline
2” Suspension Lift
Instruction Sheet
PARTS LIST:
ITEM# DESCRIPTION QTY
FRCS2-S . . . . . . . . .FRONT COIL SPACER,2" . . . . . . . . . . . . . 2
RRCS2-S . . . . . . . . .REAR COIL SPACER,2" . . . . . . . . . . . . . . 2
10MMX30MMB . . . .10 X 30 METRIC BOLT/ 10.9. . . . . . . . . . 12
10MMN . . . . . . . . . .10 MM N/I LOCKNUT . . . . . . . . . . . . . . . 12
38SAEW . . . . . . . . .3/8 SAE WASHER . . . . . . . . . . . . . . . . . . 18
10X30x1.25MMB . . .10 X 30 MET. BOLT 1.25 THRD PTCH . . . 6
FRONT INSTALLATION:
1. Set the emergency brake and block the rear tires. Raise the
front of the vehicle and properly support using jack stands.
Remove front tires.
2. Disconnect stabilizer link (A) from damper (B). Remove the
wheel sensor harness clips (C) and the brake line bracket
(D) from the damper. Do not disconnect the wheel sensor
connector. (See Image# 1)
3. Remove the damper pinch bolts (A) and flange nuts (B) from
the damper. (See Image #2)
4. From under the hood, remove the service caps (A), and
remove the three flange nuts (B) from the top of the damper,
then remove the damper assembly. (See Image #3)
NOTE: Damper Assembly’s are different left to right. Be sure
to mark as L and R before you continue.
5. Locate the new front spacer. NOTE: The front spacers are
not notched on the front side, the rear spacers are notched.
Spacer will install, long end towards the front.
6. Attach the new front spacer to the factory frame mount using
the 10mm x 30mm bolts (Grade 10.9) and nuts supplied.
Bolts will install from the center of the bracket up into factory
mount. One washer. Leave loose. (See Image #4) With
bracket installed, attach damper to the new bracket using the
factory hardware.
Image #3 Image #4
Page 1 of 3
Image #1
Image #2
