15. Install the new Skyjacker rear cross member using the supplied
18MM bolts, washers, & nuts. Note: Do not tighten the hardware
completely at this time. The cross member should be installed with
the bolt flanges on the front side of the OEM cross member flanges.
(See Photo # 16)
16. 4Wd Models: Raise & safely support the front differential into place
using the supplied 9/16" x 6" bolts, washers, & nuts. Loosely bolt the
differential to the new front cross member. (See Photo # 17) Attach
the differential pinion support bracket, under the pinion, to the new
rear cross member using the OEM hardware & the supplied 9/16" x
2 1/2" bolt, washers, & nut. (See Photos # 18 & # 19) Install the new
Skyjacker differential vent hose & tighten all cross member &
differential hardware at this time.
17. Remove the hub bearing assembly from
the OEM knuckle & reinstall to the new
Skyjacker steering knuckle using the
OEM hardware. Make sure the OEM seal
(4WD Models) or OEM hub plug (2WD
Models) is reinstalled square in the new
Skyjacker steering knuckle. (See Photos
# 20 & # 21)
18. Weld in place the new Skyjacker steering
stop spacers. Match these new steering
stop spacers with the contour of the
OEM steering stops. Weld in place by
placing a weld across the top & bottom
of the supplied spacers. (See Photo
# 22)
19. Disassemble the OEM strut assembly
using a strut spring compressor. (See
Photo # 23)
Front of Vehicle

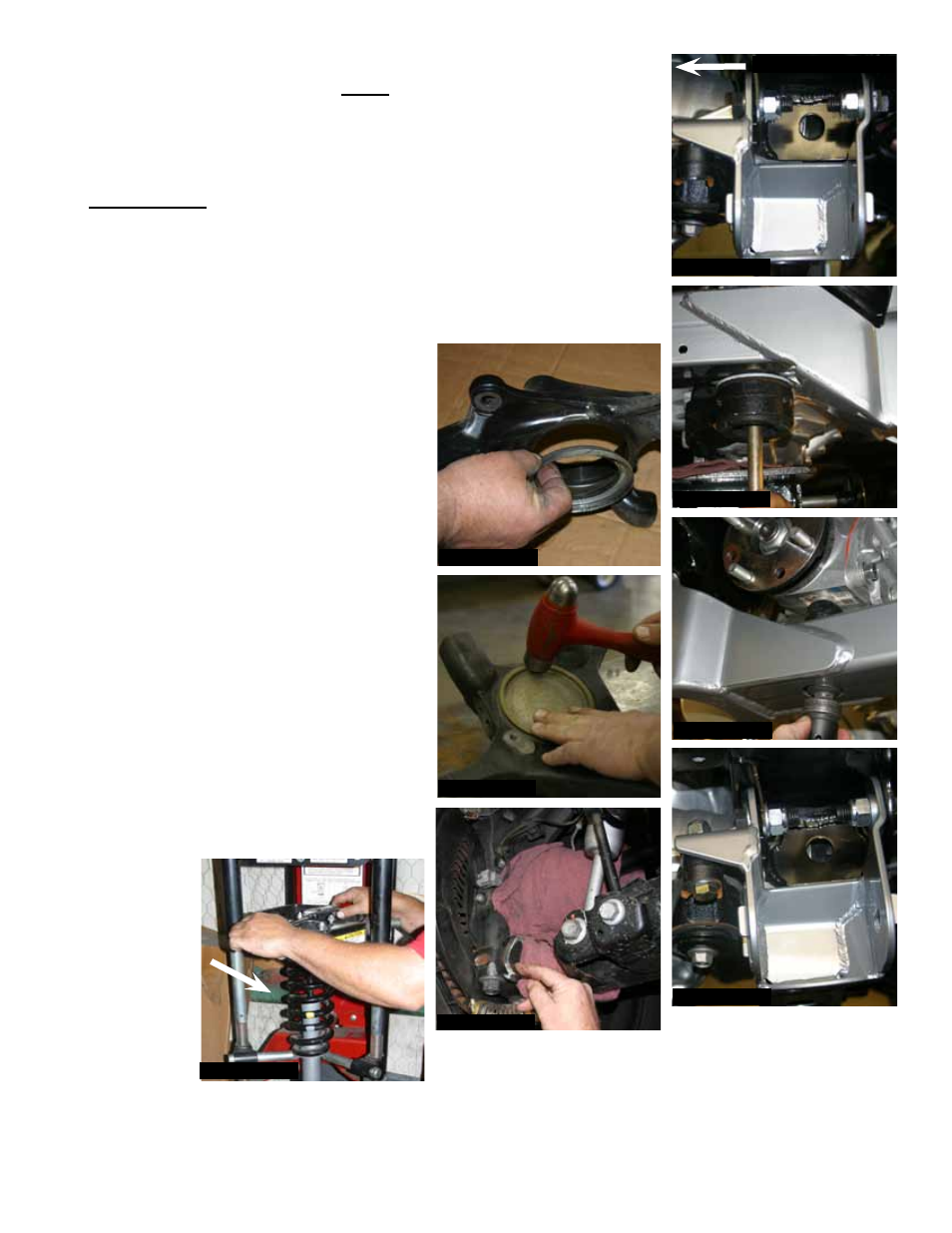

Photo # 16
Photo # 17
Photo # 18
Photo # 19
Photo # 20
Photo # 21
Photo # 22
Photo # 23
