14. Tighten the rear track bar bolts on each end & the new bolt in the

track bar relocation bracket.

WARNING: On the Jeep Wrangler TJ models, only the shock

absorbers limit the extended position of the front & rear suspension!

The use of shocks other than those supplied in this system, may

cause coil disengagement, adverse steering angles, brake hose

failure, driveline component failure, and/or other related component

failure! The use of other shocks will void your Skyjacker

®

warranty!

FINAL NOTES:

Check the clearance between the inner side wall of the tires & lower

links.

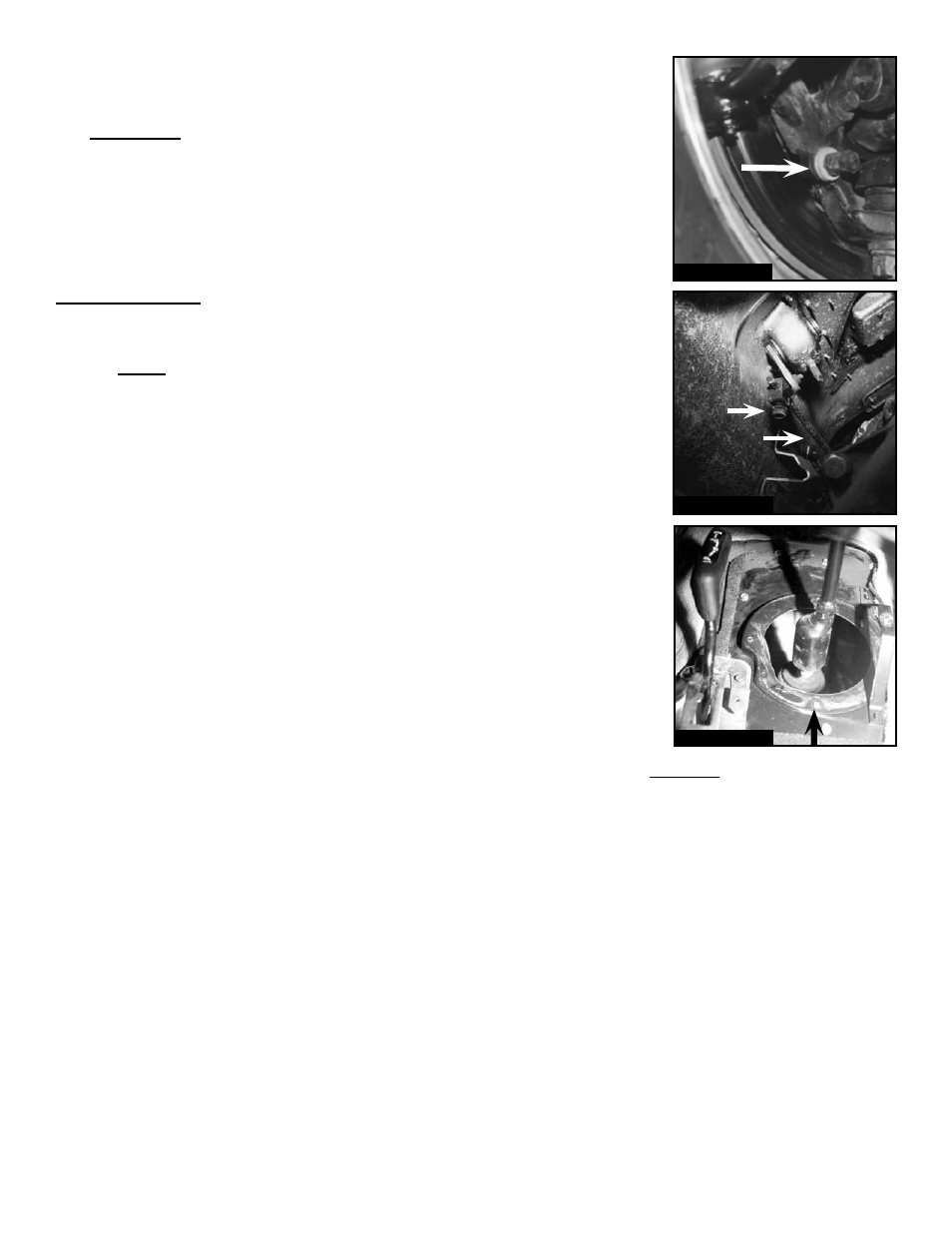

Note: It may be necessary to adjust the steering stops by adding

2-3 washers on the bolt to eliminate interference. (See Arrow in Photo

# 19)

Check the transfer case shifter to see if it will move to 4L. If not, the

linkage will need adjusting as follows. Place the shifter in

4L, loosen the

adjustment bolt ("A" Arrow in Photo # 20) & push the linkage ("B" Arrow

in Photo # 20) forward until it stops. Now retighten the adjustment bolt.

Check to be sure 4WD works properly.

On 5 speed models, engage the clutch & check the transmission shifter

to see if it will go fully into 2nd gear. If not, the shifter housing on the

floor will need trimming. Remove center console, pull back the carpet,

remove the screws holding the shifter boot to the floor & trim or grind

the floor board (See Arrow in Photo #21) until sufficient clearance is

obtained. Shift through each gear to check the clearance at this time.

Now reinstall the shifter boot, carpet, & console.

Front end realignment is necessary so after the lift is installed have a qualified alignment center

realign the vehicle to factory specifications.

Rotate the driveshafts & check for interference at the differential yoke & cardan joint. If necessary,

lightly dress the casting(s) and/or U-joint tabs in order to eliminate binding.

Ensure there is adequate clearance between the exhaust, brake lines, fuel lines, fuel tank, floor

board, & wiring harnesses. Check the steering gear for interference & proper working order. Test

the brake system before driving.

I-TJ4013B

Pg 8

Photo # 19

B

A

Photo # 20

Photo # 21
