I-FAA301

Pg 2

Part # HB-P12Be

Item #

description

qty

Item #

description

qty

516X1FTB

5/16 X 1 FINE THRD BOLT

7

716X312FTB

7/16 X 3 1/2 FINE THD,GR 8

2

516FTN

5/16" FINE THRD N/I LOCKNUT

7

716FTN

7/16-20 FINE N/I LOCK NUT

8

516SAEW

5/16 SAE WASHER

14

716SAEW

7/16 SAE WASHER

16

716X114FTB

7/16 X 1 1/4 FN THR BLT GR8

6

Part # HB-P12ss

Item #

description

qty

Item #

description

qty

BTIE-K

BLACK BOOT TIE

2

SS438

STEERING STOP,10-12 POL RGR 2

Part # HB-P12usM

Item #

description

qty

Item #

description

qty

CS1281

CRUSH SLEEVE / 1.281

6

38SAEW

3/8 SAE WASHER

8

10MMX100MMB 10 X 100 METRIC BOLT/ 10.9

4

516X34TCFB 5/16 X 3/4 THD CUT FLG BOLT

4

10MMN

10 MM N/I LOCKNUT

4

Installation:

1. With the vehicle on flat level ground, set the emergency brake,

& block the rear tires / wheels.

2. Raise the front of the vehicle & support the vehicle with jack stands.

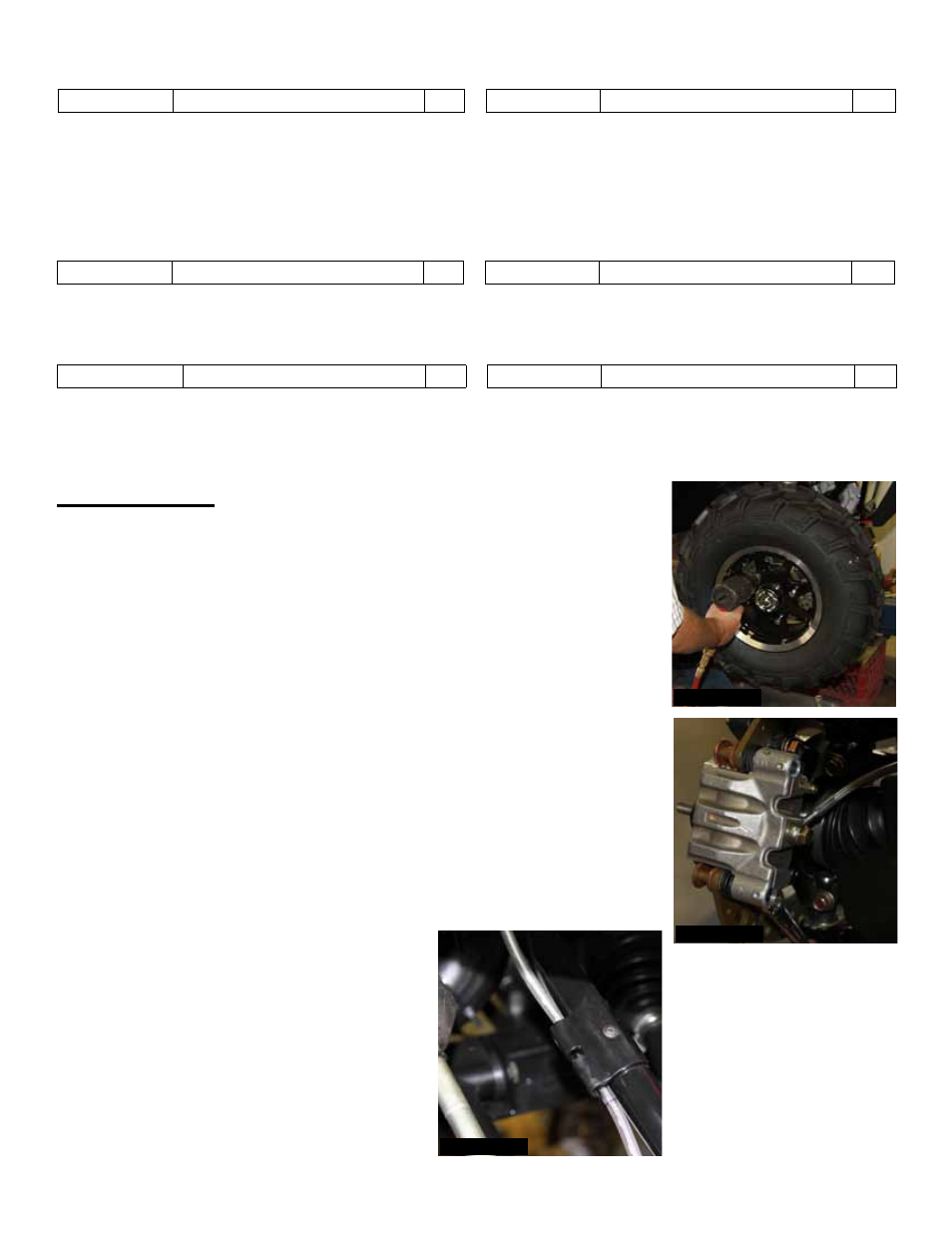

3. Remove the front tires / wheels using a 17mm socket. (See Photo # 1)

4. Remove the front bumper assembly using a 15mm socket for the two

upper mounting bolts & a 13mm socket for the three lower mounting

bolts.

5. Disconnect the front brake caliper assemblies using a 15mm socket.

(See Photo # 2)

6. Disconnect the front brake lines from the plastic retaining brackets on

the front upper A-arms. (See Photo # 3)

Photo # 1

Photo # 2

Photo # 3
