MacDon Double Windrow Attachment - Manual (Page 59)

SECTION OM – OPERATOR’S MANUAL
Form # 169365
OM-35
Issue – May 2008
4.4 ELECTRICAL
4.4.1 Lights
b. Use electrical tape and wire clips as required
to prevent wires from dragging or rubbing.
c. Keep lights clean and replace burnt bulbs.
Refer to Parts Catalog.

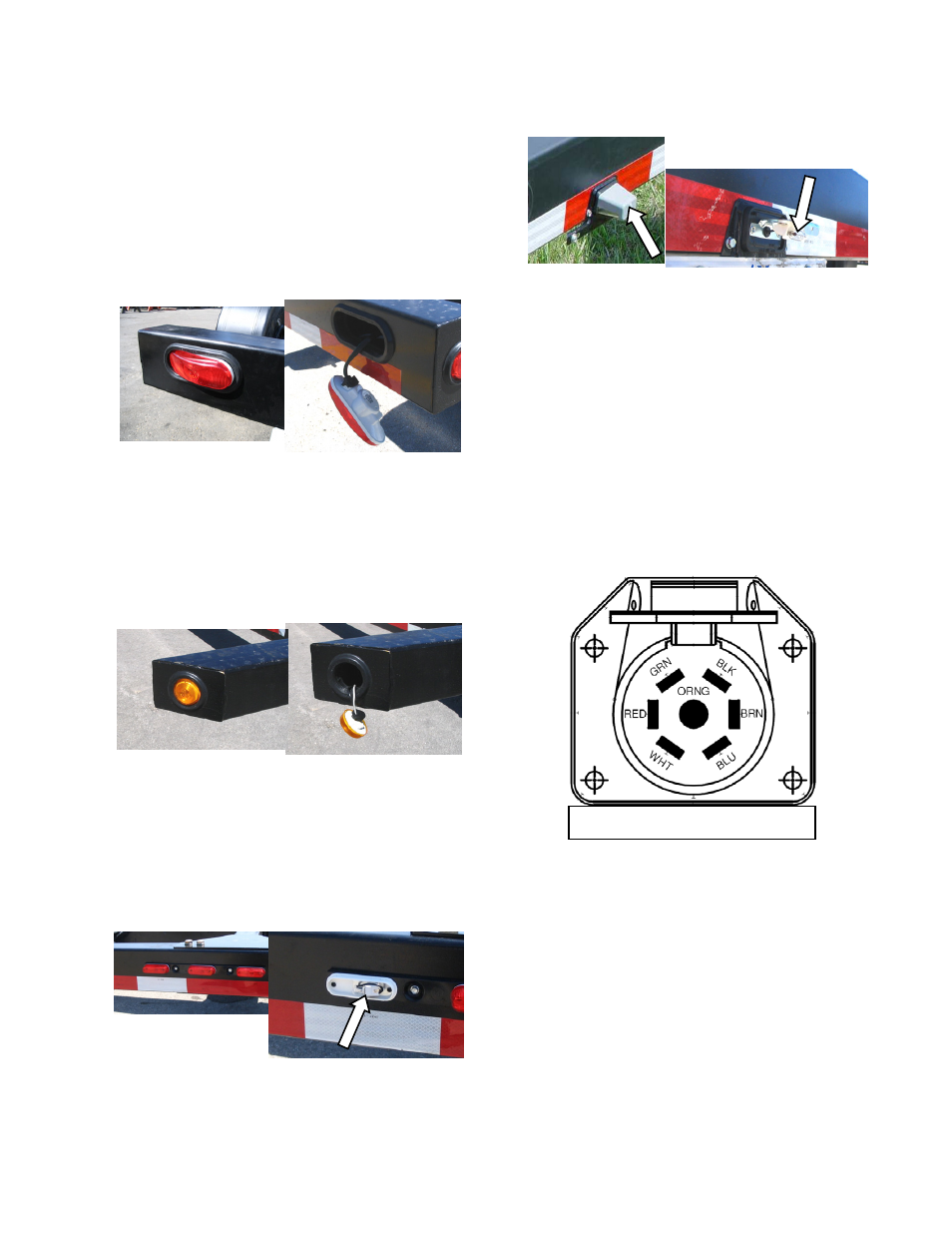

4.4.1.1 Tail/Brake/Signal Replacement
a. Using a blade type screwdriver or equivalent,
pry light assembly from rubber mount
b. Disconnect wire and discard light assembly.
c. Connect new light assembly to wire and push
assembly into rubber mount until it is firmly
seated.
4.4.1.2 Clearance Lights
a. Using your fingers, pull light assembly from
rubber mount.
b. Disconnect wire and discard light assembly.
c. Connect new light assembly to wire and push
assembly into rubber mount until it is firmly
seated.
4.4.1.3 Red Light Bar
a. Pull off the lens.
b. Replace bulb and reinstall plastic lens.
4.4.1.4 License Plate Light
a. Loosen screw and pull off cover.
b. Replace light bulb.
c. Reinstall cover and tighten screw.
4.4.2 Electric Brakes
4.4.2.1 Wiring
The transporter electric brake system is
activated when the brakes on the towing
vehicle are applied, sending an electrical
signal to the transporter brakes. Check that
the towing vehicle wiring does not activate the
brakes unless the towing vehicle brakes are
applied. See connector wiring schematic.
4.4.2.2 Brake Adjustment
IMPORTANT
Adjustments to the electric brakes must
be performed by qualified service
technicians. See your MacDon dealer.
FRONT VIEW – COVER OPEN
